SierraNet M168 User Manual

137

Advanced Mode (User‐Defined)

Teledyne LeCroy

8. Click on the State Transition

icon to change the state to transition to. Left‐click

for menu options to display as shown in the following screen capture and select the
state to transition to. To remove the state transition select No Jump.

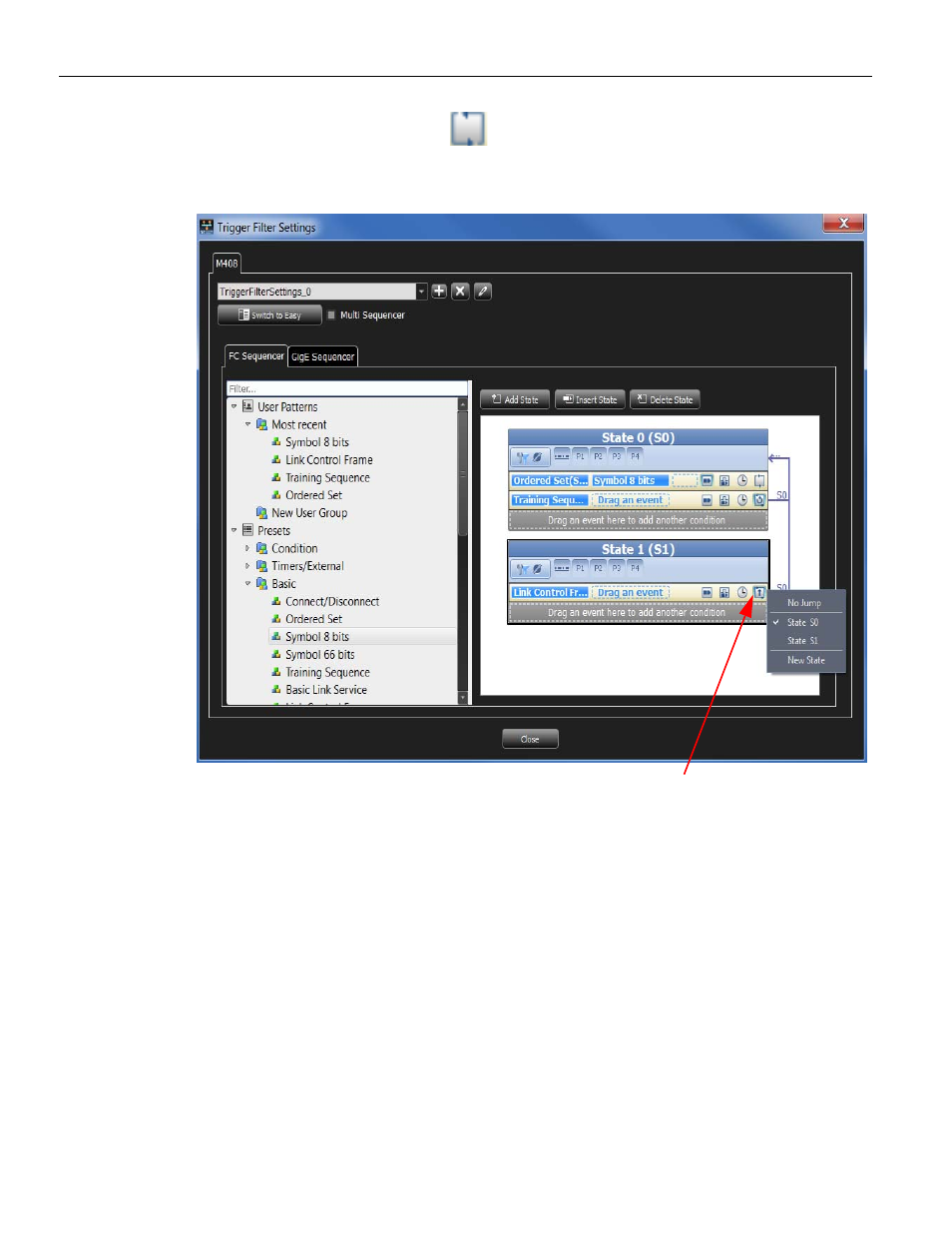

Figure 2.88: State Transition
