B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8

© 2011 Binary

pg.9

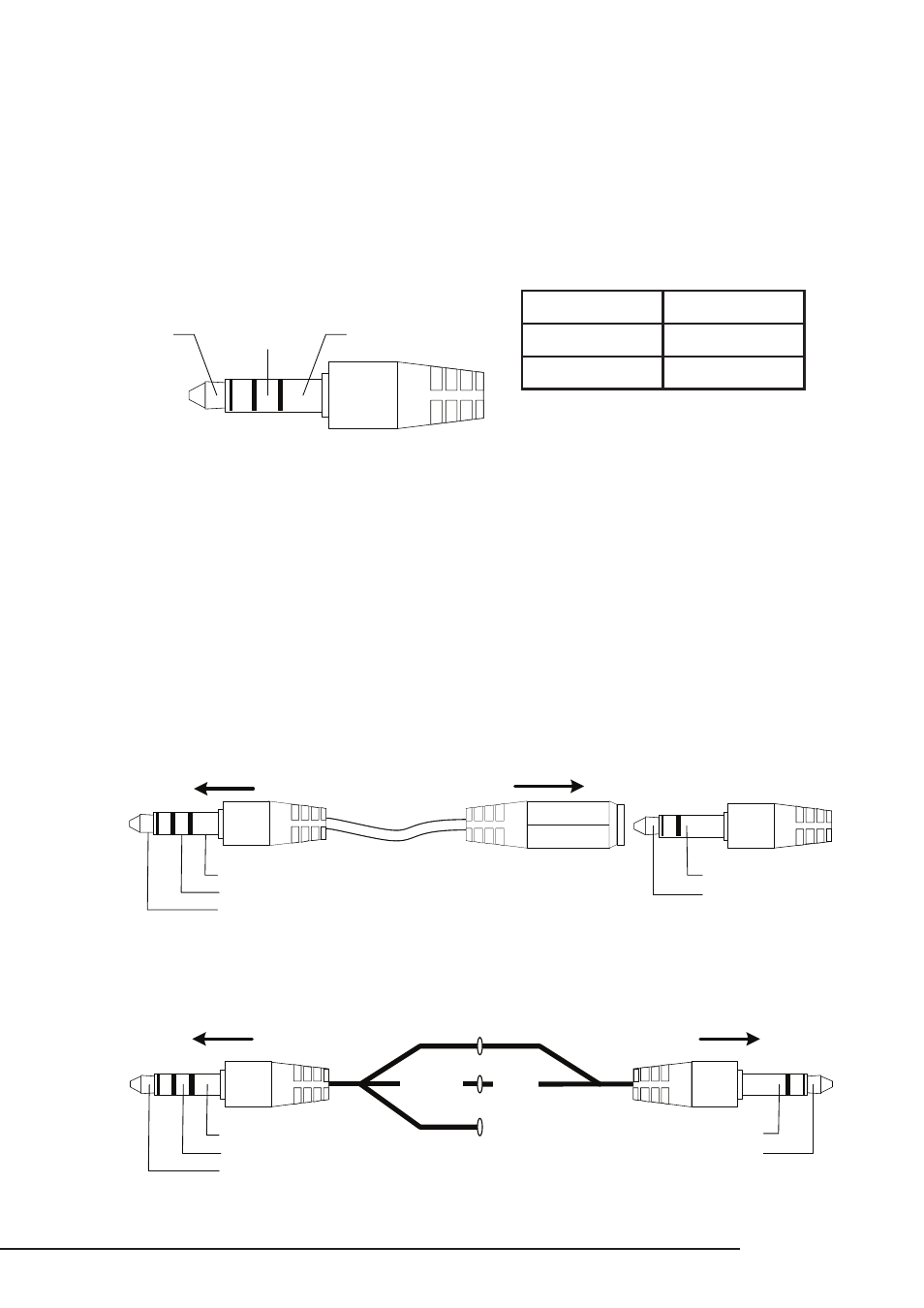

3.3.1 IR Receiver Connection

Pin out configurations for IR receivers and control systems vary. Before connecting to this

input, review this section carefully in order to match the pin outs for the HDMatrix. Before

connecting an IR Receiver or to an IR control system, verify that the HDMatrix is OFF to ensure

proper operation when connected.

3.3.2 Connecting to an IR Control System/Connecting block

When connecting to an IR control system or connecting block, the 12V DC (Sleeve) must

not be connected. Connections of this type require the use of the included Stereo to

Mono dongle or a custom cable made. A mono 3.5mm cable should not be used as it will

short out the 12 VDC to GND, and will make the connection inoperable.

IR Signal

Tip

GND

Ring

12v DC

Sleeve

IR Signal

(Tip)

GND

(Ring)

12v DC

(Sleeve)

IR Signal (Tip)

12V DC (Sleeve)

GND (Ring)

To B-100-HDMATRIX

To IR Control System/

Connecting Block

IR Signal (Tip)

GND (Sleeve)

IR Signal (Tip)

(Tip)

12V DC (Sleeve)

GND (Ring)

(Sleeve)

IR Signal (Tip)

12V DC (Sleeve)

GND (Ring)

To B-100-HDMATRIX

IR Signal (Tip)

GND (Sleeve)

To IR Control System/

Connecting Block

3.3 Control Ports

3.3.2.1 Stereo to Mono IR Adaptor

3.3.2.2 Custom Cable Construction
