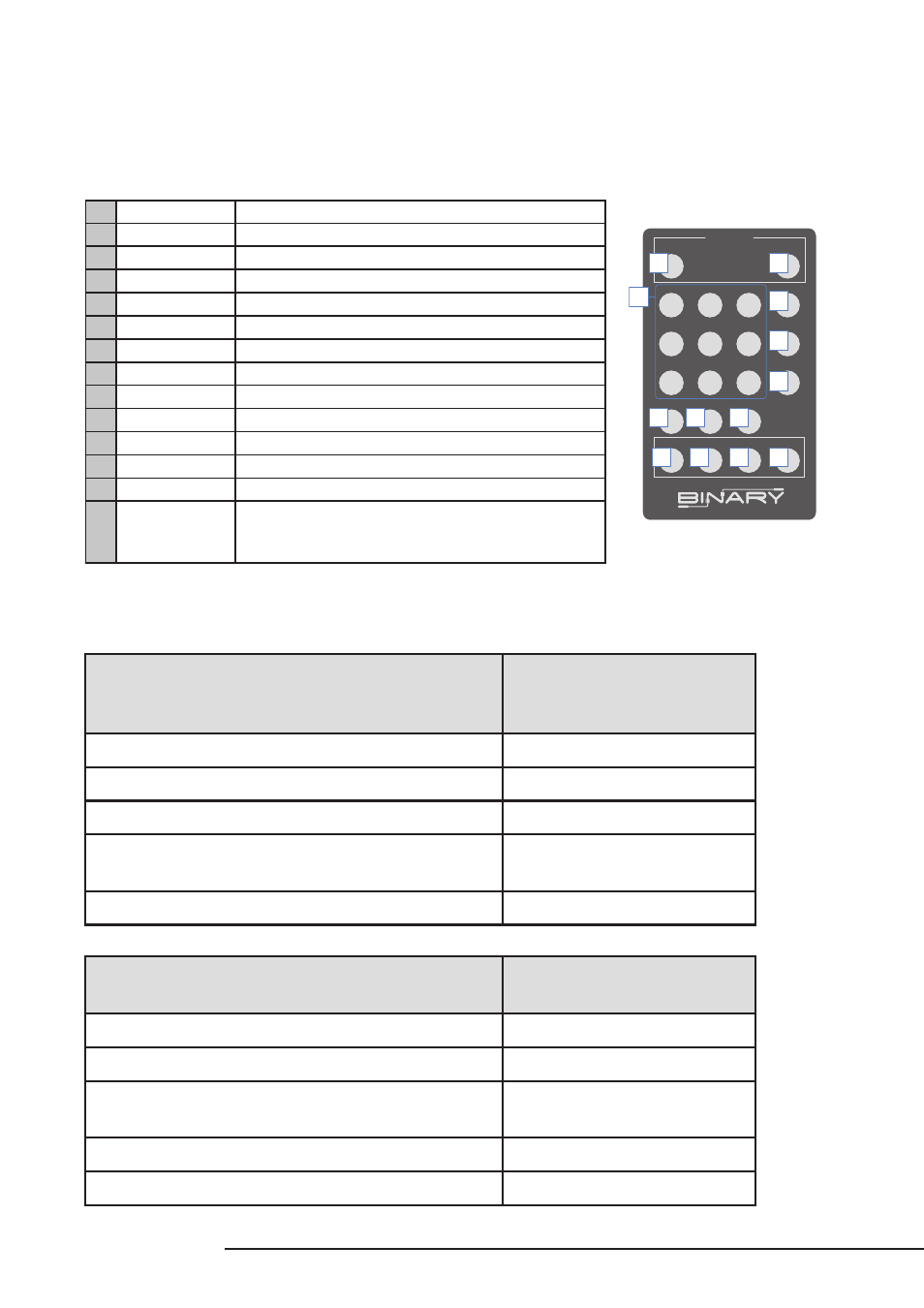

background image

B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8

pg.16

5 OPERATION AND CONTROL

5.1 IR Remote

Key

Function

1

ON

Power on the matrix switcher

2

OFF

Enter standby mode

3

Number Keys 1-9

Select a number

4

10+

Not Used

5

All

Select all Inputs or Outputs

6

Enter*

Enter to trigger the previous setting

7

OUTPUT

Begin output selection

8

INPUT

Begin input selection

9

OUTPUT OFF

Turn off/Mute the selected Output

10 STATUS

Present EDID or Output status

11

LEARN

Learn EDID from one output

12 DEFAULT

Begin Embedded EDID Selection

13 CLEAR

Clear the former IR operation procedure which user just

pressed but has not yet applied by pressing ENTER

*The ENTER key must be pressed within 10 seconds of the last command in order to be processed.

POWER

1

ON

OFF

2

3

OUTPUT

INPUT

OUTPUT

OFF

STATUS

LEARN

DEFAULT CLEAR

ALL

4

5

6

7

8

10+

ENTER

9

1

2

3

4

5

6

7

8

9

10

11

12

13

Input to Single Output

Example: Output=3 Input=4

Display Readout (Example)

1. Press OUTPUT

--

2. Press Number Key (1-8) to select Output

3-

3. Press INPUT

3-

4.Press Number Key (1-8) to select Input

34

5. Press ENTER

34

5.1.1 Route Inputs to Outputs

Input to All Outputs
Example: Output=All Input=4

Display Readout (Example)

1. Press OUTPUT

--

2. Press ALL to select all Outputs

A-

3. Press INPUT

A-

4. Press Number Key (1-8) to select Input

A4

6. Press ENTER

44
