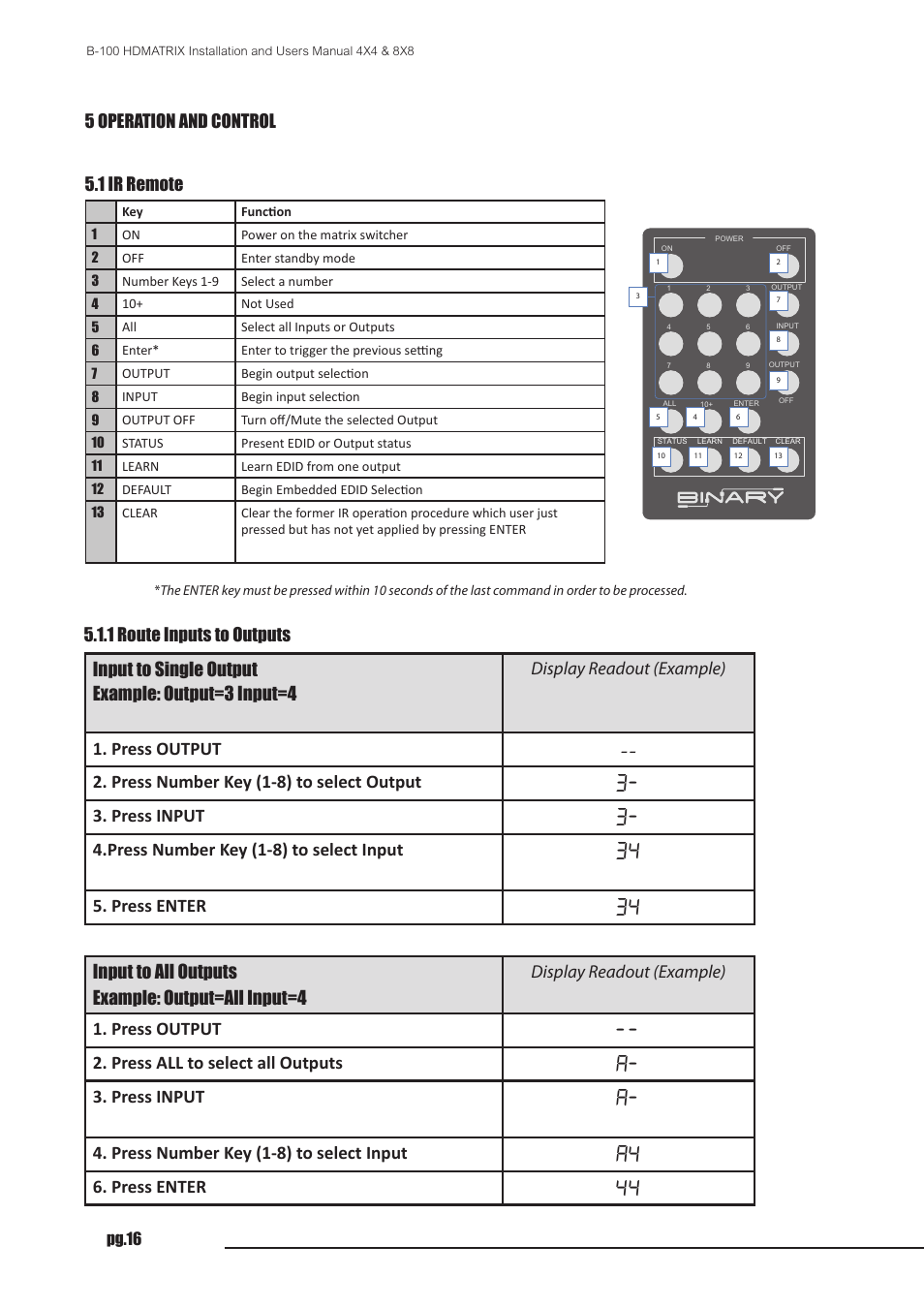

Input to single output example: output=3 input=4, Press output, Press number key (1-8) to select output – Staub Electronics B-100-HDMATRIX-4X4 BINARY - HDMI 4X4 MATRIX SWITCH WITH HDMI OUTPUTS User Manual

Page 16: Press input, Press number key (1-8) to select input, Press enter, Input to all outputs example: output=all input=4, Press all to select all outputs, 5 operation and control 5.1 ir remote, Display readout (example)

Input to single output example: output=3 input=4, Press output, Press number key (1-8) to select output | Press input, Press number key (1-8) to select input, Press enter, Input to all outputs example: output=all input=4, Press all to select all outputs, 5 operation and control 5.1 ir remote, Display readout (example) | Staub Electronics B-100-HDMATRIX-4X4 BINARY - HDMI 4X4 MATRIX SWITCH WITH HDMI OUTPUTS User Manual | Page 16 / 21 Input to single output example: output=3 input=4, Press output, Press number key (1-8) to select output | Press input, Press number key (1-8) to select input, Press enter, Input to all outputs example: output=all input=4, Press all to select all outputs, 5 operation and control 5.1 ir remote, Display readout (example) | Staub Electronics B-100-HDMATRIX-4X4 BINARY - HDMI 4X4 MATRIX SWITCH WITH HDMI OUTPUTS User Manual | Page 16 / 21
