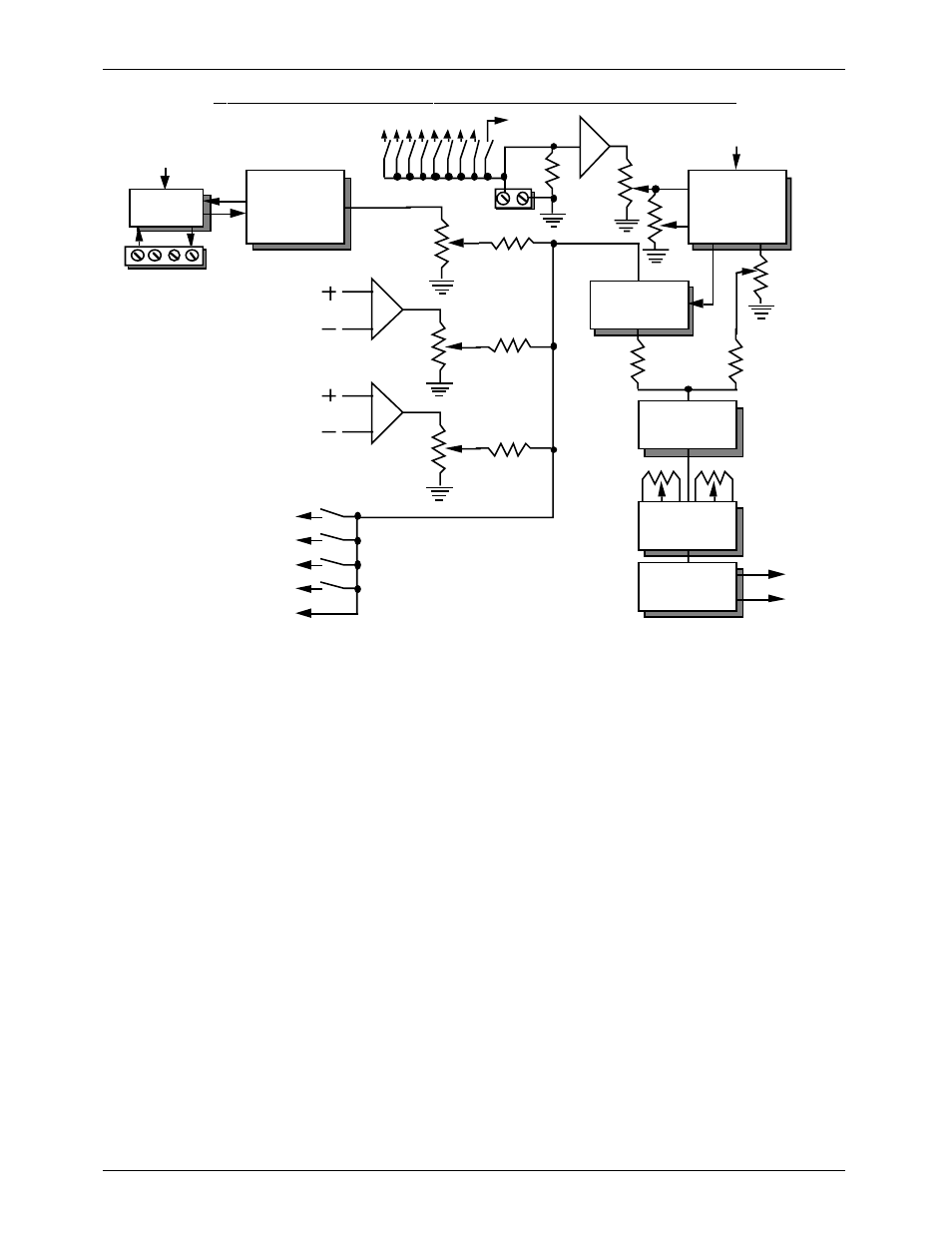

- Listening to MIX BUS (ÔMIX LISTENÕ card installed) -
DIGITAL
AUDIO
REPEATER
VOLTAGE
CONTROLED
AMPLIFIER
PUBLIC
ADDRESS
SYSTEM
OPTO
ISOLATION
35Khz
LOWPASS
FILTER
SHELVING
EQUALIZER
OUTPUT
DRIVERS
PA AUDIO & CONTROL SIGNALS
FROM MA-100 MASTER
GLOBAL/MIX BUS #1
GLOBAL/MIX BUS #2
GLOBAL/MIX BUS #3
GLOBAL/MIX BUS #4
AUXILIARY INPUT
EXTERNAL MIX INPUT 'A'
EXTERNAL MIX INPUT 'B'
VCA BUS
VCA IN/OUT
VOLUME
1/2
MUTE
(or Optional
High or Low
Pass Filters)
OUT
ISOLATED
POWER SUPPLY
PA
VOLUME
BASS TREB.
10v REF.
START & STATUS
ÔMIX LISTEN': This configuration card is used when you want this card to listen to the mixed output
of a number of different cards which are configured with either ÔPRI MIX FEEDÕ or ÔGLO MIX
FEEDÕ configuration cards and the same ÔMIX BUSÕ switch on as this card. Only one card at a
time can be configured to listen to each MIX BUS at a time.
The ÔBUS FEEDÕ pot on the front panel of the DR- Repeater card you are configuring has no
effect when this configuration card is inserted. To adjust the level of the mixed signals
reaching this card, you need to adjust the ÔBUS FEEDÕ pots on all of the cards which are
feeding this one card.
