To support the PUBLIC ADDRESS option you will need:
¥ One MA-100 PA MASTER to control the system and the first eight PA STATIONS.
¥ One MA-200 for each additional eight PA STATIONS (beyond the first eight) or Local PA Outputs
needed.
¥ Any combination of up to 256 SMART or DUMB PA STATIONS.
¥ Optionally, any combination of DR-300 or DR-400 Digital Audio Repeater / Mixer cards.
Local PA Outputs (8)
Local PA Outputs (8)
UP TO 256
PA/INTERCOM
STATIONS
EXT. INPUTS
UP TO 256
DIGITAL
REPEATER/
MIXER CARDS
Digital
Repeater/
Mixer Card
AMP
Digital
Repeater/
Mixer Card
AMP
Digital
Repeater/
Mixer Card
AMP
Digital
Repeater/
Mixer Card
AMP
Digital
Repeater/
Mixer Card
AMP
Digital
Repeater/
Mixer Card
AMP
Digital
Repeater/
Mixer Card
AMP
Digital
Repeater/
Mixer Card
AMP
Digital
Repeater/
Mixer Card
AMP
EXT. INPUTS
EXT. INPUTS
EXT. INPUTS
EXT. INPUTS
EXT. INPUTS
EXT. INPUTS
EXT. INPUTS
EXT. INPUTS
Serial Port Printer Port Analog Output BGM input (1 or 8)
MA-100
PA Master
BGM input (1 or 8)
up to 31
MA-200
PA Interface Cards

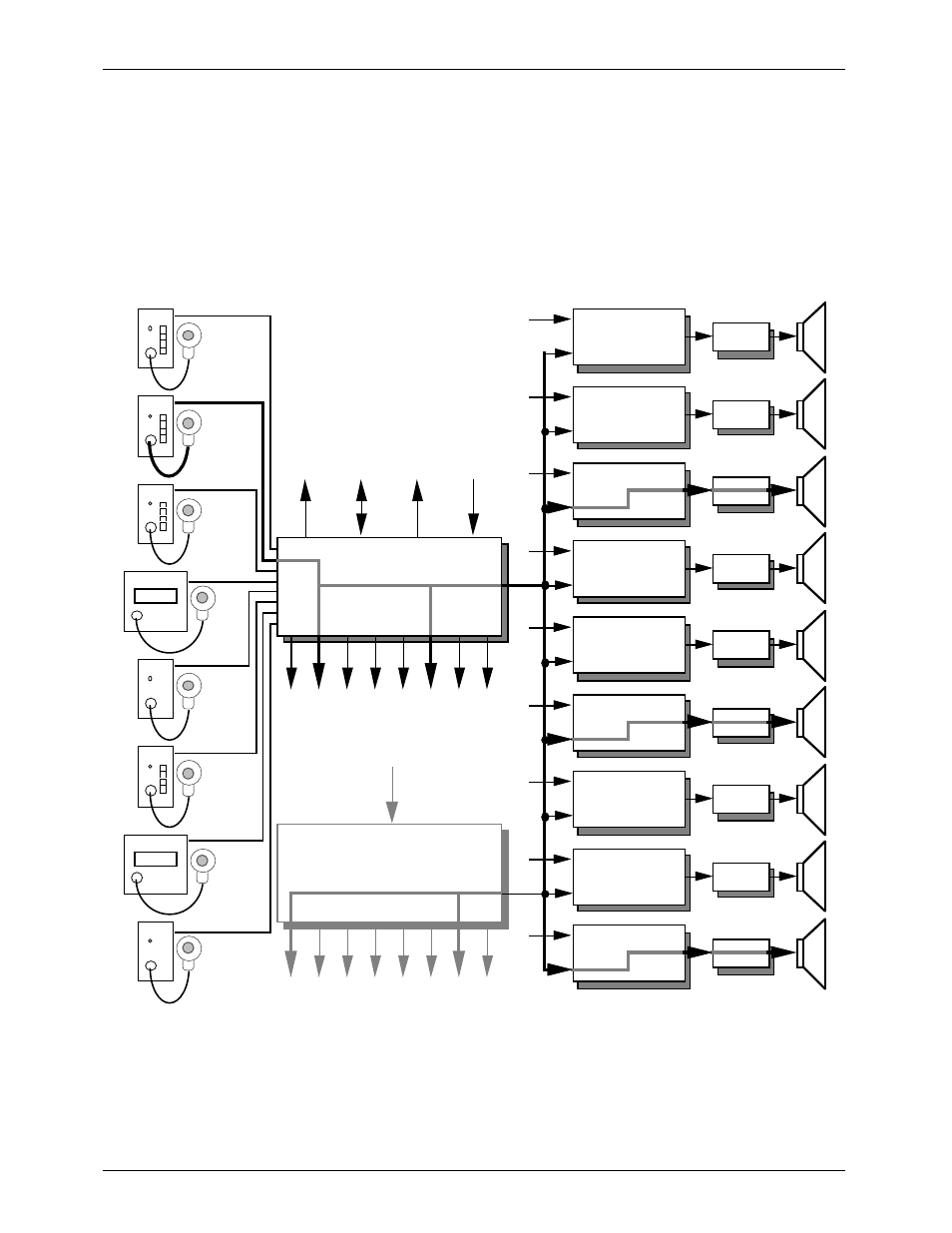

As shown by the darkened audio path in the above illustration, when a user at any PA station
requests a PA ZONE, an audio path is opened to any of the Local PA Outputs and DIGITAL REPEATER /
MIXER cards in the system which have been configured to respond to requests for that PA ZONE (in this
example there are three DR-300 or DR-400 cards and four Local PA Outputs responding). The normal
audio on those outputs is dropped to the half muted level (this level is adjustable on each output) while
the audio from the PA station is routed to the outputs (the volume of the announcement is also
adjustable on each output). The rest of the audio system and the Repeaters on the affected DR-300
