RMA-303 Dual Purge/Direct Charge - Operation
44
This shaping air combination can be used with
either the aluminum 55mm bell cup or the 55mm
Titanium bell cup. ("Air Flow" information can be
found in the "Introduction" section of this manual.)
SHAPING AIR KIT #2
A12089-06/07 Shaping Air Kits
Mono Flex Air (Direct Charge) for
Use with All 65mm Bell Cups Only
The shaping air is supplied so that it is counter to
the rotation of the bell cup. This combination will
provide a pattern size from 10 to 24-inch (250mm-
610mm) depending on air flow, fluid flow, and cup
rotation speed. Connection is made using the
"blue" 8mm tube labeled "SAI" on the tubing bundle.
The other 8mm tube labeled "SAO" is "gray" in
color and must be plugged. However, if additional
air is required, this tube can be connected to a
secondary controlled air source. Precautions must
be taken that one does not have a significantly
higher pressure than the other to avoid any back
flow. This shaping air combination can be used
with any 65mm bell cup (see "Pressure and Flow
Data Charts" in the "Introduction" section).
Ransburg
LN-9263-08.5
NOTE
† A minimum of 70 slpm (2.6 SCFM)
should always be kept flowing in the inner
shaping air passage to keep the face of the
applicator clean during manual cleaning
breaks.

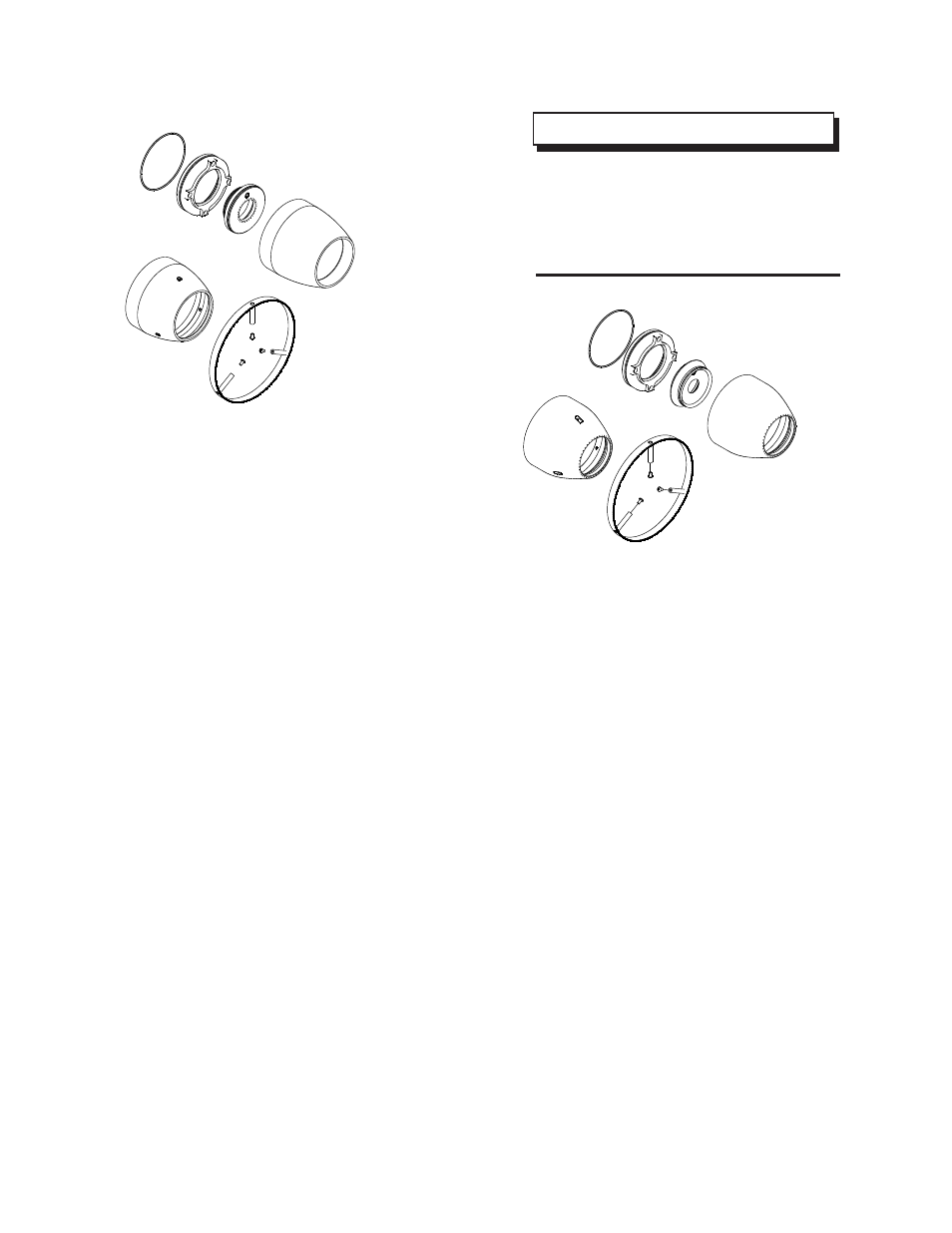

Figure 12: A12089-01 and A12089-02 Shaping Air
Kits (55mm)
Figure 13: A12089-06 and A12089-07 Shaping Air
Kits (Mono Flex Air - 65mm)
A12089-01 (METAL, DIRECT CHARGE)
A12089-02 (METAL, DIRECT CHARGE WITH RING)
A12089-06 (METAL, DIRECT CHARGE)
A12089-07 (METAL, DIRECT CHARGE WITH RING)
