8.3 Display Hold Feature
You can hold the scrolling display so that it will stay locked on any one of the 7 screens.

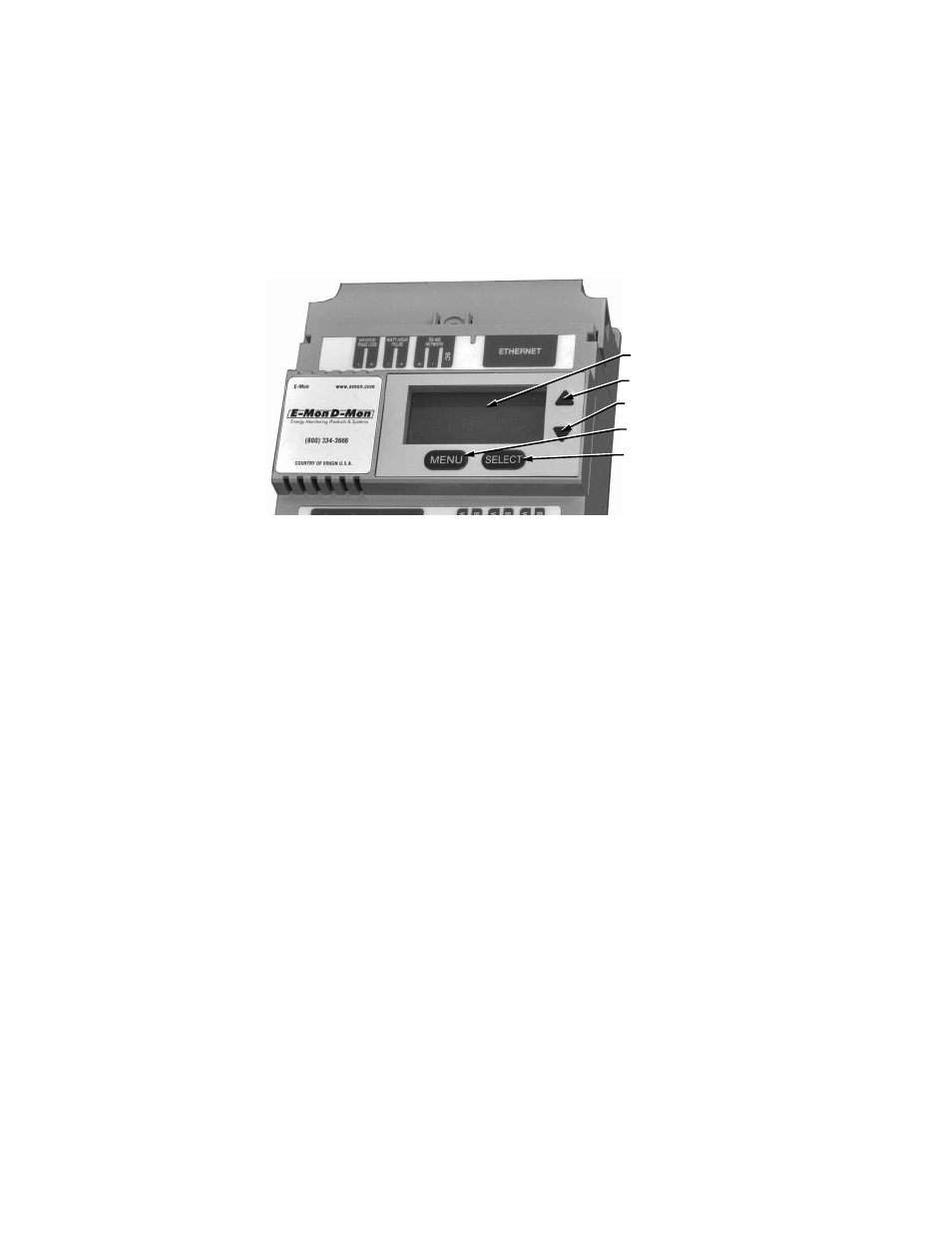

Fig. 30. Display and Push Buttons.
To Enter Hold Mode:
1. Use the UP and DOWN buttons to choose which of the 7 screens you would like
to display.
Press the
SELECT button. At the bottom of the display, you will see the message
HOLD1. This will lock the display for 1 hour.
NOTE: The display hold feature has different selectable time periods.
2. Press SELECT again will show the message HOLD6. This will lock the display
for 6 hours.
3. Continuing to press the SELECT button will provide additional timing choices:
HOLD12: Locks the display for 12 HOURS
HOLD24: Locks the display for 24 HOURS
HOLD: Locks the display indefinitely
To Exit the HOLD Mode:
Press
SELECT button as many times as needed until the HOLD message disappears
from the display.
