DIN-MON™ SMART METER
15 62-0442—04
4.0 METER INSTALLATION
4.1 Mounting the Meter
The Din-Mon TM meter is designed to be mounted by using the four mounting holes on
the meter or attaching it to a DIN rail that has previously been installed. Refer to the
wall mounting instructions below or to the DIN Rail mounting instructions on the
following page.
Installation must only be performed by qualified personnel and in accordance with
these instructions and all applicable local and national electrical codes. E-Mon and its
representatives assume no responsibility for damages or injury resulting from the
improper installation of this meter.
The Din-Mon TM meters are designed to be installed in protective enclosures. The
enclosure must be of the proper type to contain fire, should this occur. The
environmental conditions of the application must be considered in choosing the
appropriate enclosure type. Use appropriately sized mounting hardware to fasten the
meter enclosure to the selected mounting surface.
4.2 Wall Mounting
The meter mounts using four screws inserted through the corners of the base plate.
Fasten securely with four No. 6 or No. 8 machine or sheet metal screws.

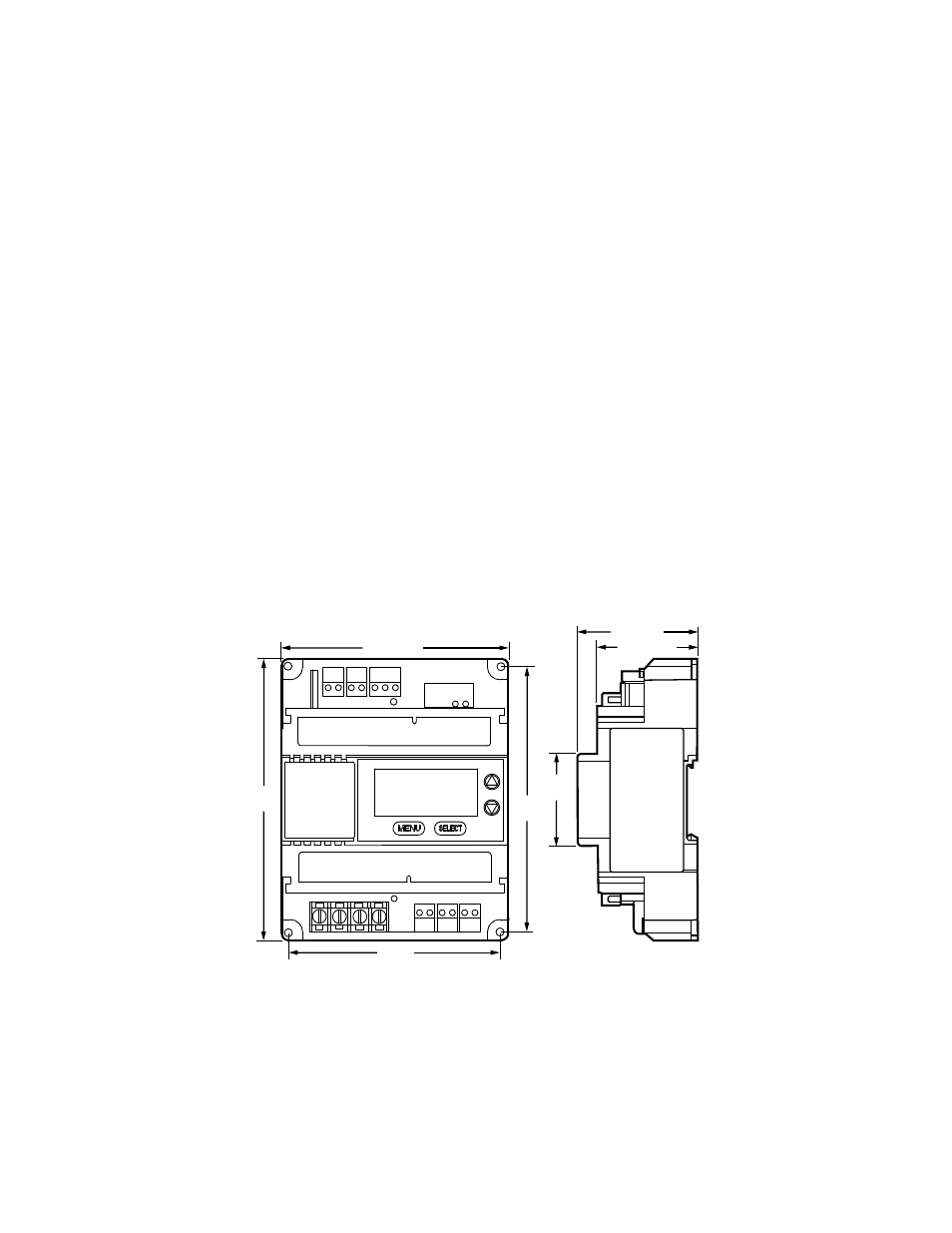

Fig. 10. Wall Mount and Meter Dimensions (front and side view).
M35090
4-5/16 (110)
5-1/2
(140)
4 (102)
5-3/16
(132)
1-49/64
(45)
2-9/32 (58)
1-57/64 (48)
