DIN-MON™ SMART METER
62-0442—04
12
3.0 METER OVERVIEW
The unit is comprised of 3 main components, the Main Power Connections, the Sensor
Input Terminals and the Communication Ports and Terminals.

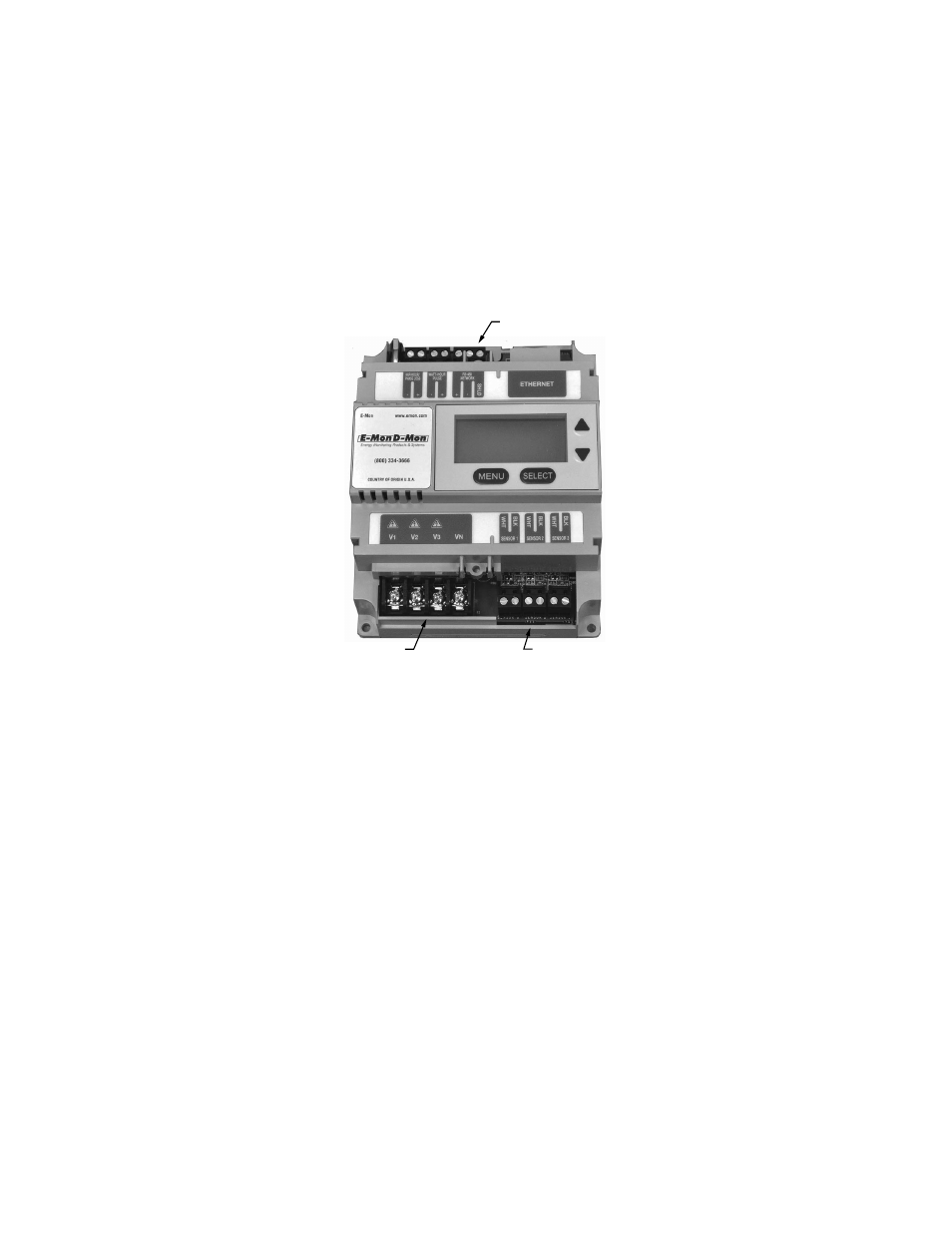

Fig. 6. Communication Ports, Main Power Input and
Current Sensor Input Terminals.
3.1 Main Power Input Voltage and Current Sensors
The Main Power Input Terminals are the 4-screw terminals located on the lower left of
the unit. The main power input wires connect to these terminals. The terminals are
covered with a protective shield for safety purposes. The meter draws a maximum of 6
VA.
The Current Sensor Input Terminals are the 6-screw terminal plugs located on the
lower right of the unit. The current sensor input wires connect to these terminal plugs,
and each 2-screw terminal plug corresponds to an input voltage phase; care must be
exercised to ensure that each current sensor is connected to the correct terminal plug.
M34553
COMMUNICATION
PORTS AND TERMINALS
MAIN POWER
INPUT TERMINALS
SENSOR INPUT
TERMINALS
