6 main power & current sensor wiring diagram, 1 4-wire wye, 3-element connection diagram, 2 3-wire, 3-element connection diagram – E-Mon E-D5-600800-S*SPL3-V3KIT3 User Manual

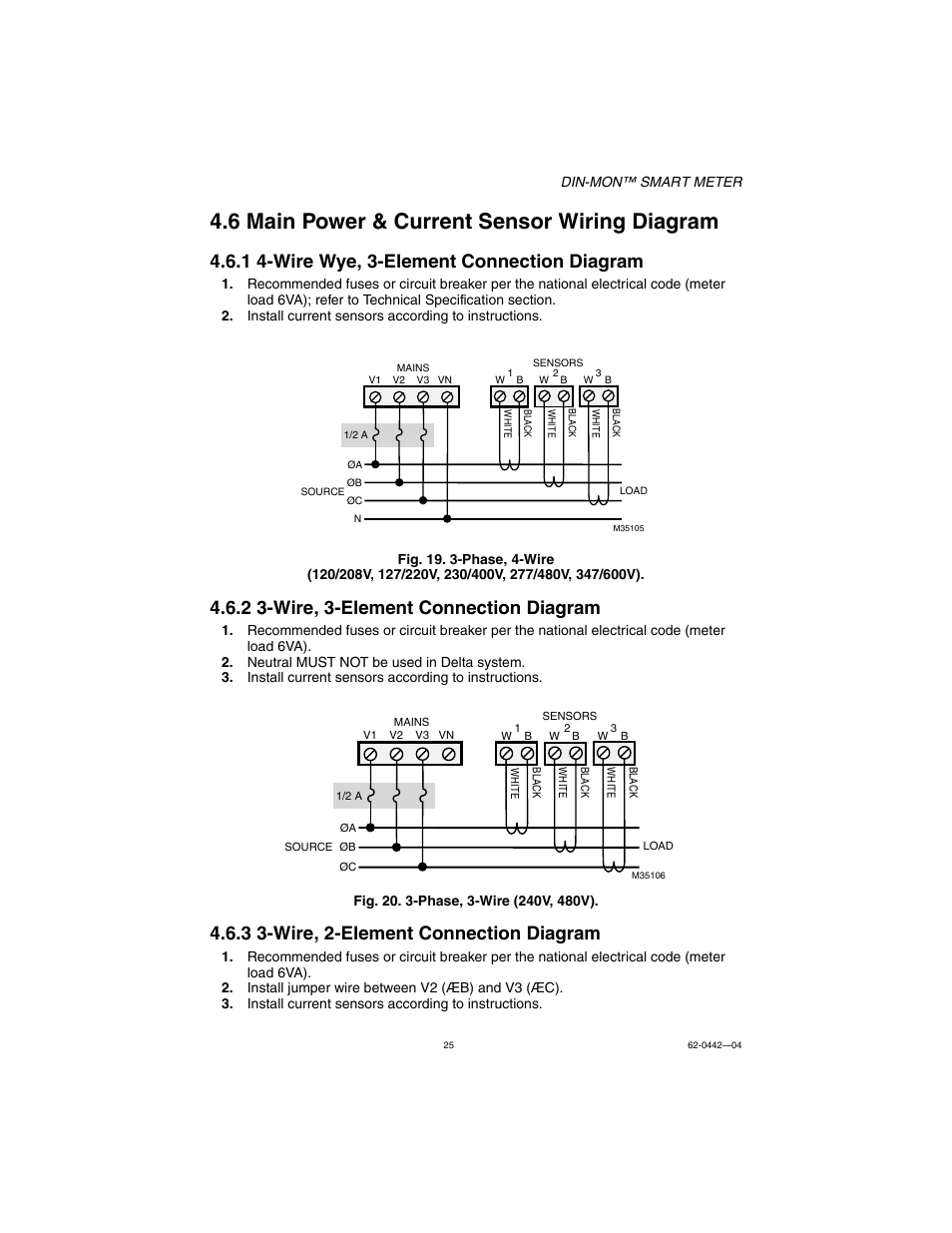

Page 25: 3 3-wire, 2-element connection diagram
