5 Data display
Displaying data in a bar graph
2. Select or clear (touch) the check box next to each data run that you want to show or hide.
3. Optionally, touch outside the legend to reduce the size of the legend.

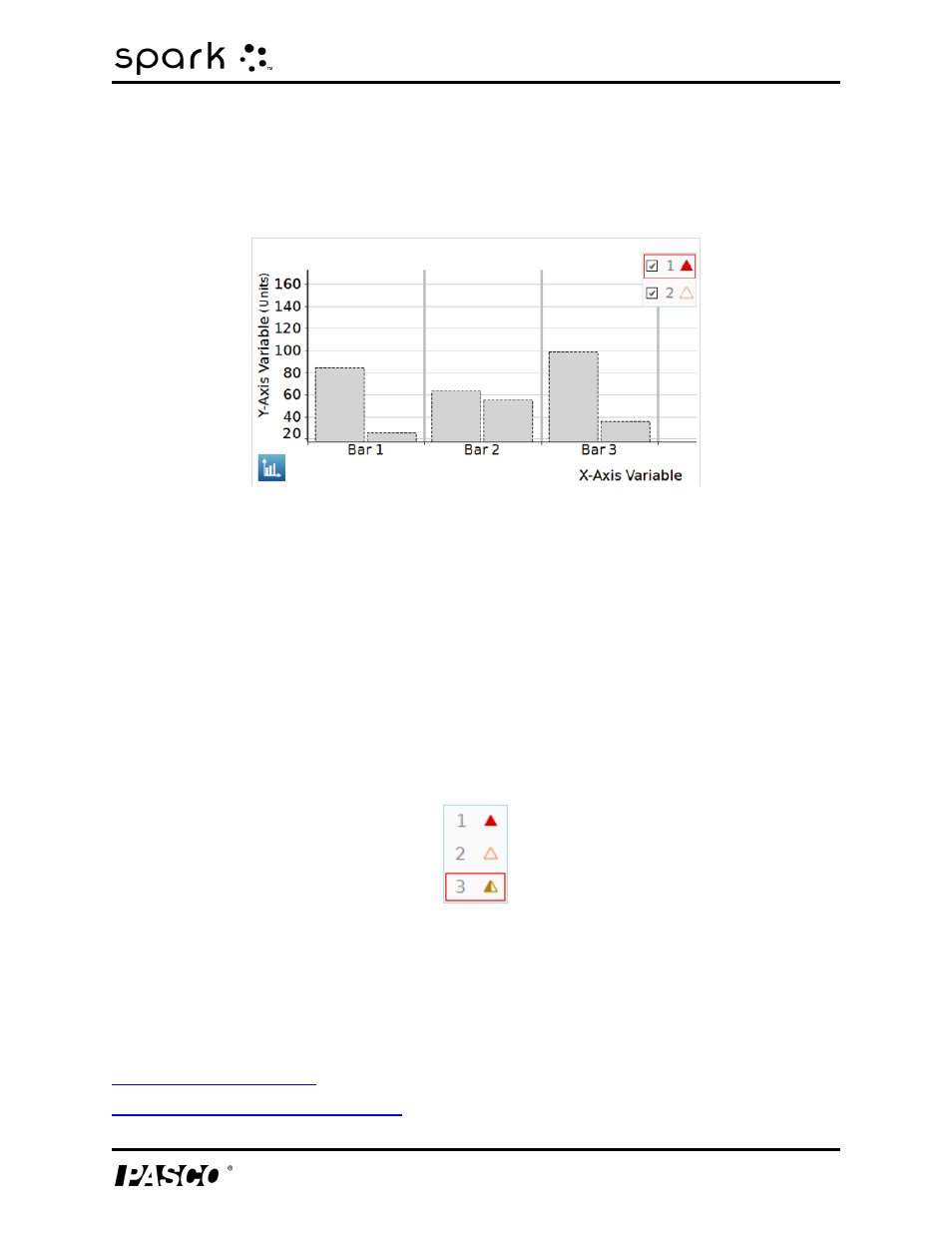

Bar Graph legend
Selecting data for operation in a bar graph
In the graph legend, a red outline surrounds the run that is selected for operation. Complete
these steps to change which run is selected:
1. Touch the graph legend.
The legend enlarges.
2. In the legend, touch the symbol (but not the check box) of the run that you want to select.
The red outline moves to the selected run.
Graph legend
When you apply bar graph statistics, such as mean or standard deviation, they are applied to
the selected run.
Annotating data in bar graphs
You can add annotation and show numeric values on bars.
Editing or deleting annotations to bars
012-10616E
35
