Micromod MOD: 30ML Display Script Guide User Manual
Page 65
MOD 30ML Display Guide
Application Examples

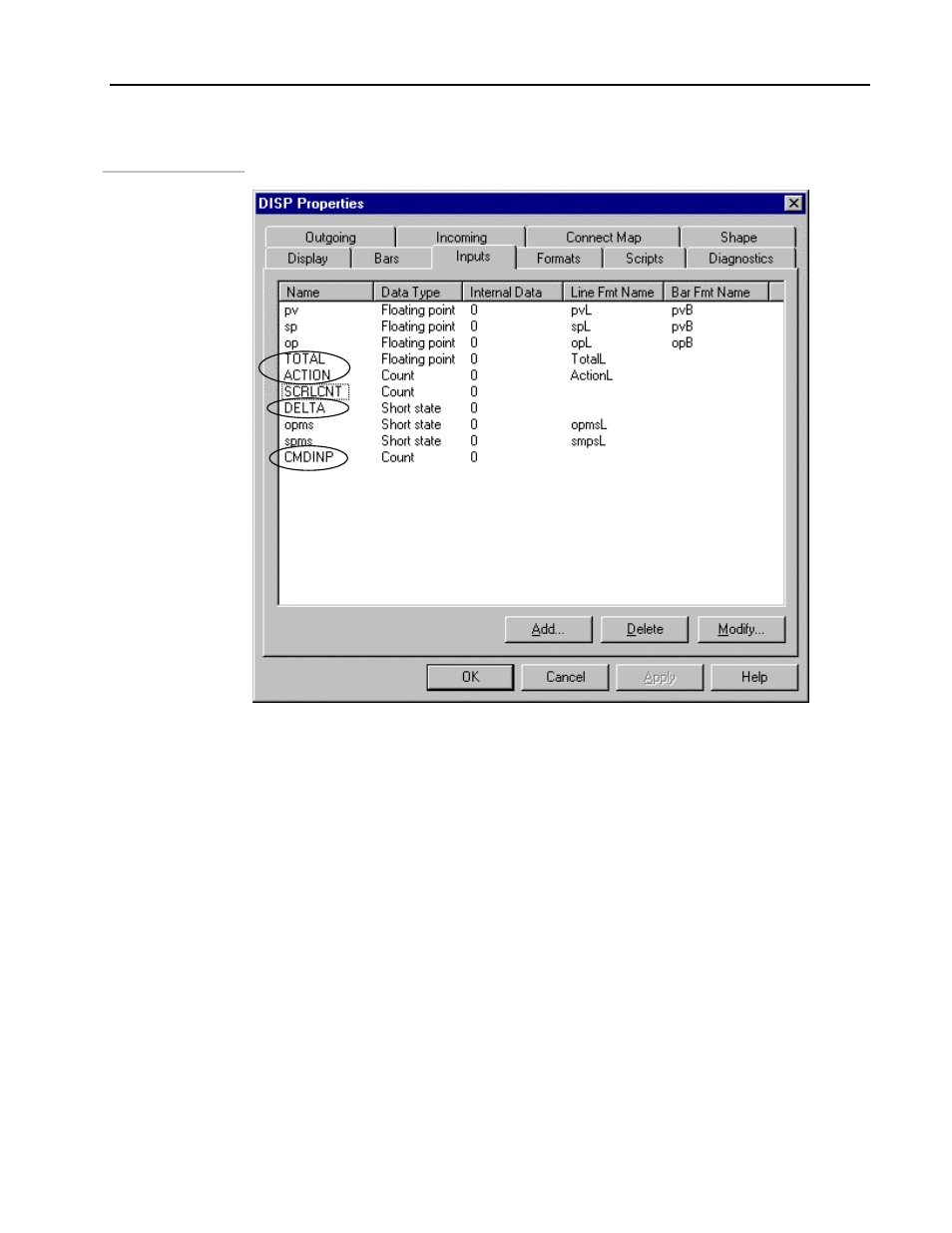

The next figure illustrates the new Display Inputs that are added for this example.
Display Inputs, PID
and Totalizer
Two new formats are added to the formats shown in Example 1. These are shown in the
next figure. They do not require any “Edit When” statements.
5 - 11
