MOD 30ML Display Guide
Display Basics
2 -29

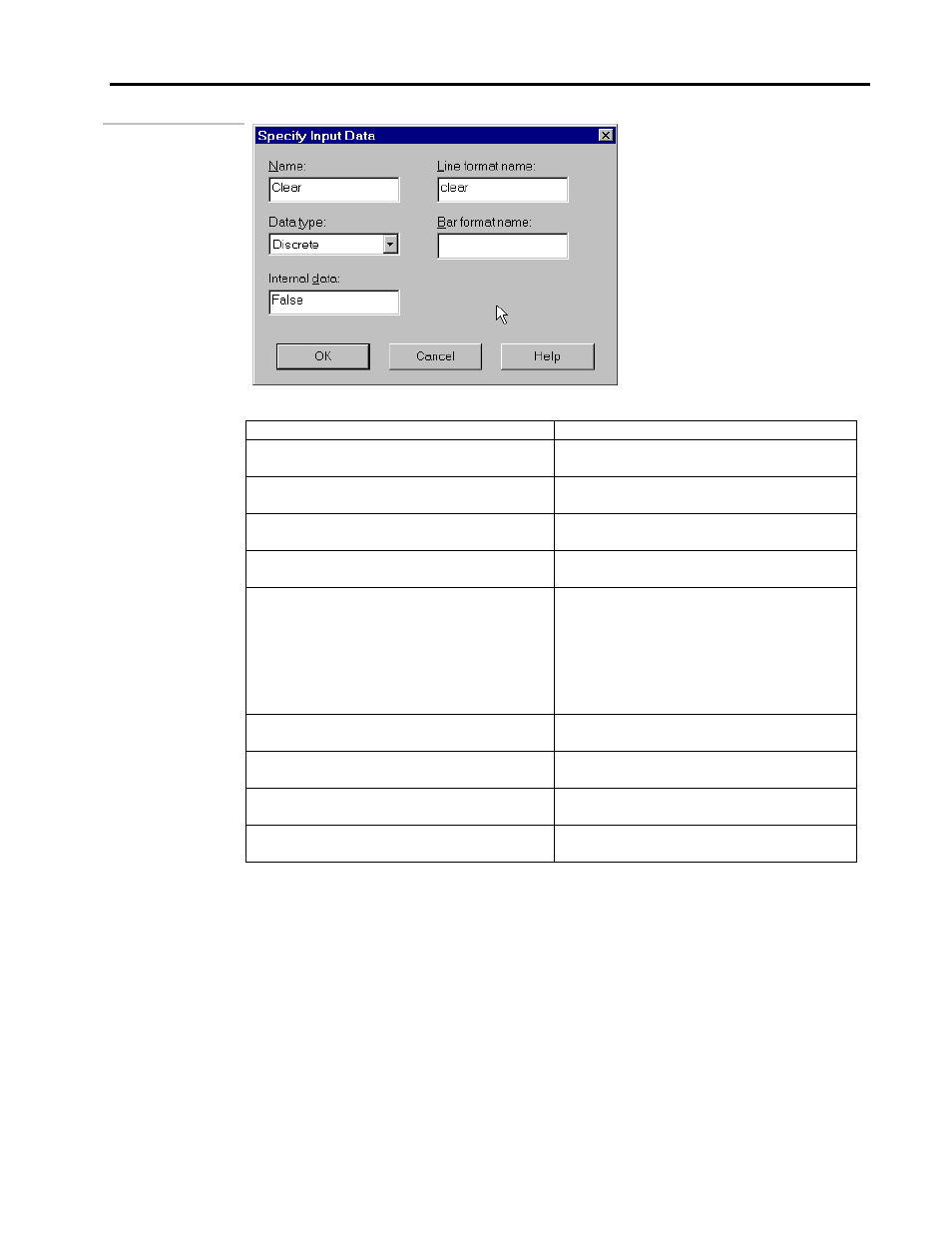

Figure 2 .24.
Display Block Input
7. In the Line Format field, type: clear This format is defined in the next menu.
8. Close the menu using the OK button The input CLEAR appears on the Inputs
list
9. Select the Formats tab and click on the
Add button. See next figure.
10. In the Name field type: clear This name should be exactly the same
as that entered in Step 6 above
11. Using the pull-down menu, change the
Display Format to State
12. The Entry Method is left at the default,
Enter Required
This causes a flashing ENT to appear
next to the key, which must be pressed
before the value is accepted. It also
automatically activates the UP and
DOWN arrows to scroll the bottom line
between entry options (to be defined in
the State Table).
13. In the Display State Table field, type
CLEAR
This is the name that will be given to the
new State Table
14. In the Entry State Table field, type
CLEAR
The same state table will be used for
Display and Entry states.
15. Close the menu by clicking on the OK
button.
16. Close the Display block by clicking on the
OK button.
