MOD 30ML Display Guide
Application Examples

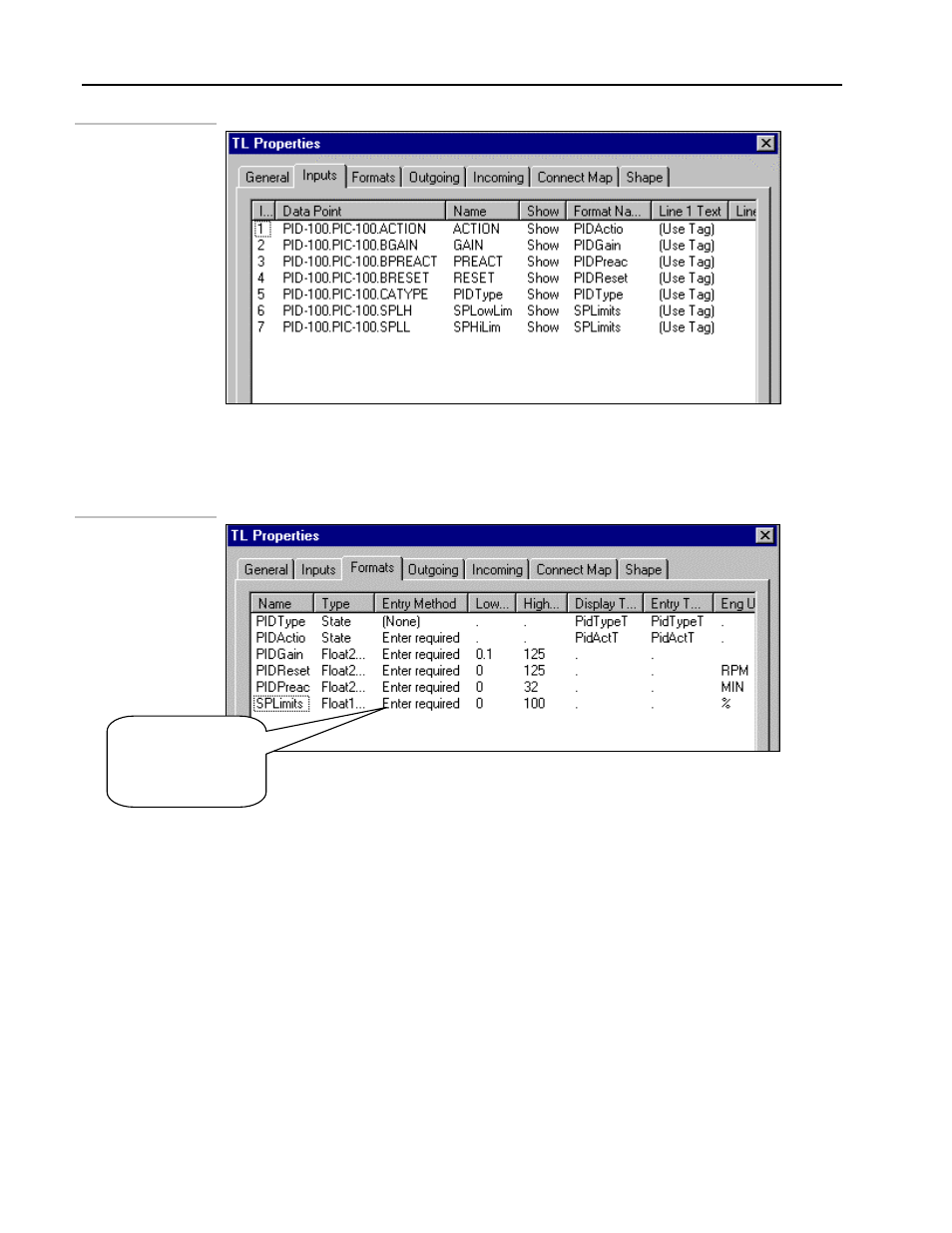

Figure 5 .5.
Tune List Inputs,
Basic PID Display
Finally, the formats assigned to the Tuning parameters are shown in the next figure. The
“T” in the Display State Table name was used by the author to designate Tuneable
parameters in the State Tables. This is also how they are designated in the default State
Table List provided with Visual Application Designer.
Figure 5 .6.
Tune List Formats,
Basic PID Display
Operator must
press flashing
“ENT” key for value
to be accepted
The connections between the PID block, Display Block and Tune List Block for this
particular example are illustrated in the next figure.
5 - 6
