MOD 30ML Display Guide
Display Basics
2 -24

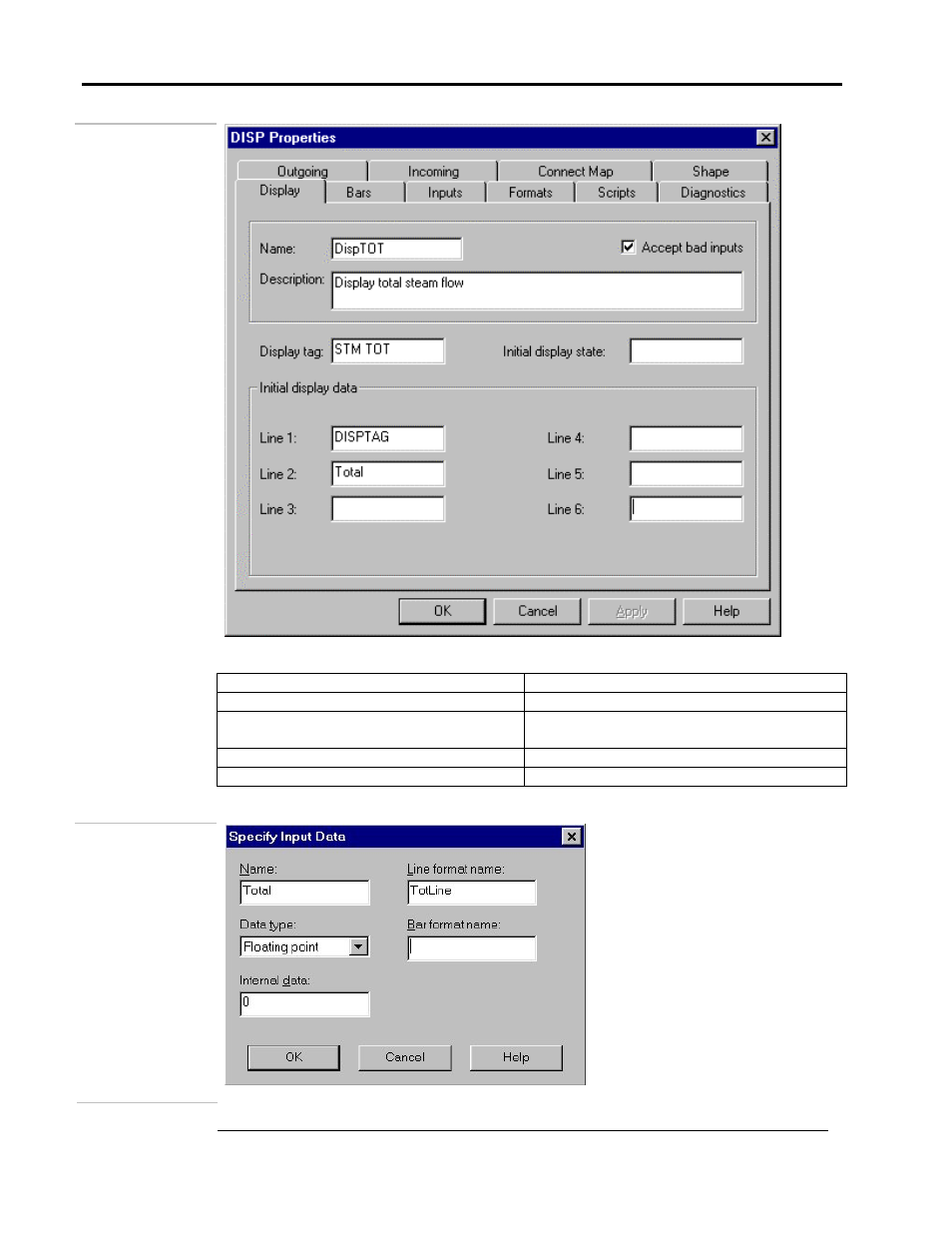

Figure 2 .18.
Display Block
General Menu -
Totalizer
14. Select the Inputs tab.
15. Select the Add button in the Inputs menu
16. Give Input 1 the name: Total
Leave the Data type as Floating point.
It is helpful to give the input a name that
corresponds to the value to be displayed.
17. In the Line Format field type: TotLine This format will be defined in the next menu
18. Close the menu with the OK button The input appears on the Input List
Figure 2 .19.
Display Block Input
Dialog Box -
Totalizer
Exercise: (cont’d)
