MOD 30ML Display Guide
Application Examples

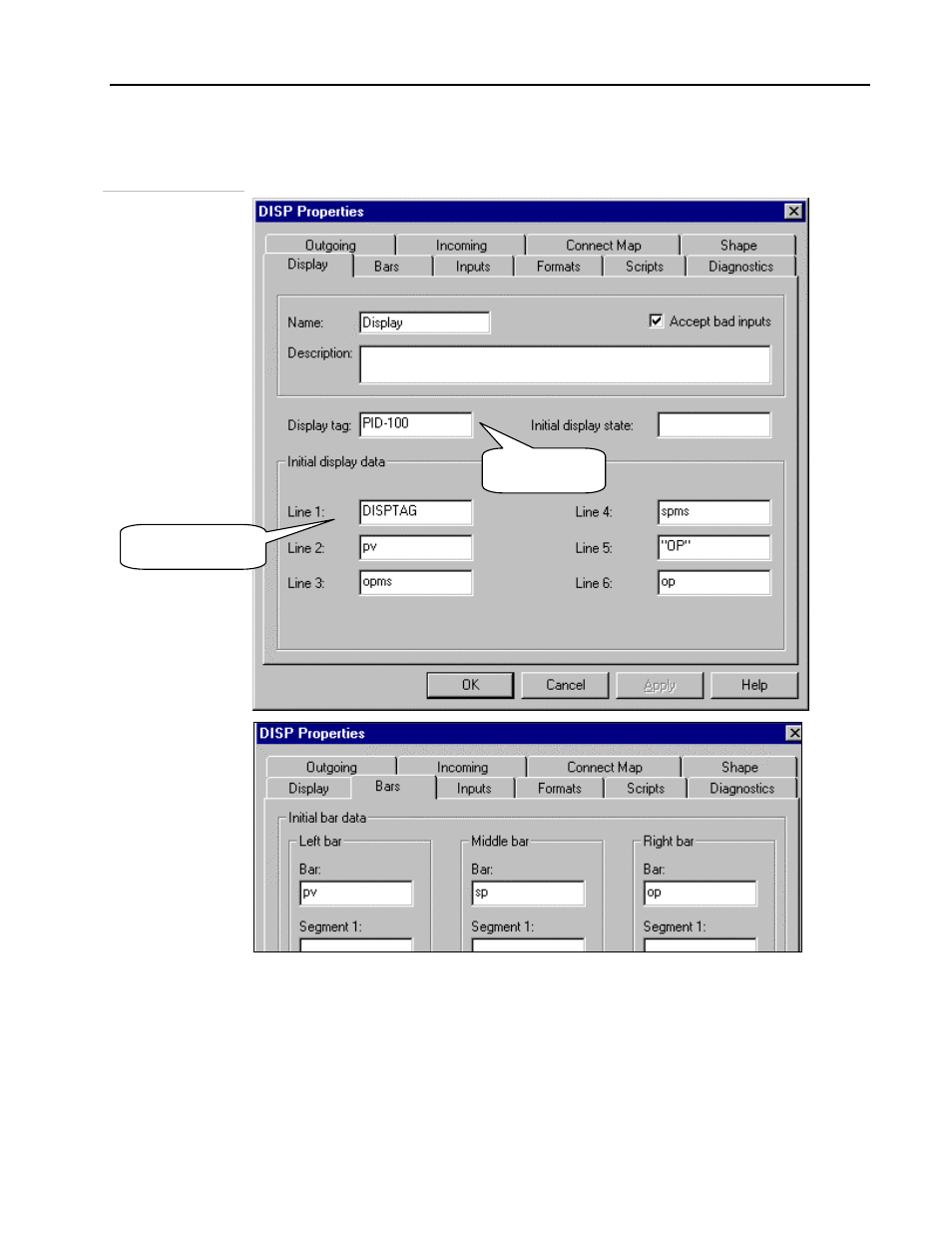

The next figure illustrates the menu entries in the Display menu of the Display Block. No
highlighted segments are used in this example.
Figure 5 .4.
Display and Bar
Menus, Basic PID
Display
Enter in
Display List
PID-100 appears
on Line 1
The next figure lists the inputs for the Tuning displays. The Line 1 and Line 2 display
fields allow the user to type in a label that will be displayed on Lines 1 and/or 2 of the
front display, when that tuning parameter appears. Or, the tag name may be used.
5 - 5
