MOD 30ML Display Guide
Application Examples

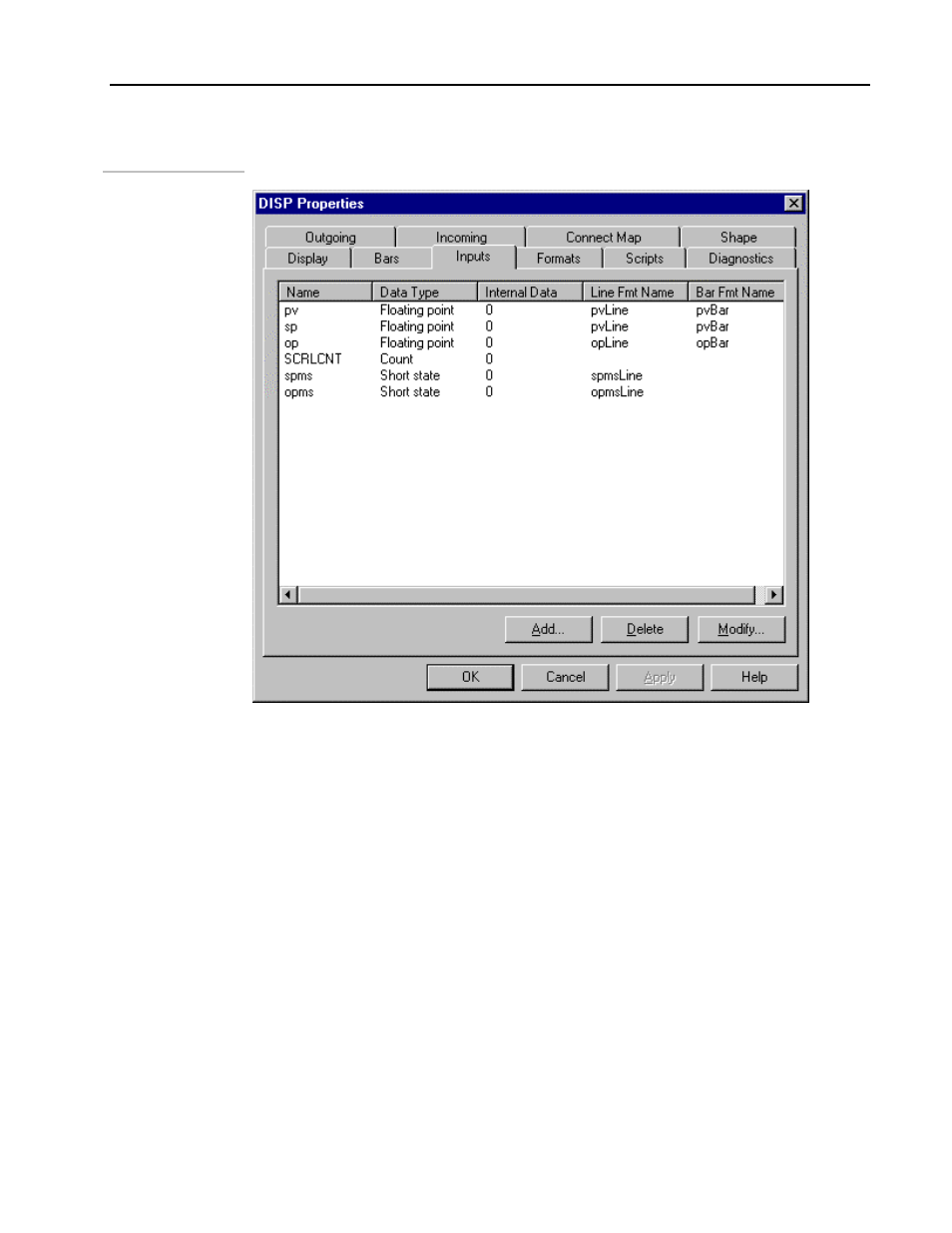

The next figure shows the Display Block Inputs for this display.
Figure 5 .2.
Display Block
Inputs, Basic PID
Display
The next figure shows the Display Formats for process, setpoint and output as digital
readouts (pvL, spL, opL), process/setpoint and output as bargraphs (pvB, opB), and
setpoint mode and output mode in conjuction with State Tables. The Setpoint Line format
(spLine) has an “Edit When” expression so that the setpoint can only be changed when the
mode is Local. The Output Line format (opLine) has an “Edit when” expression so that
the output can only be changed when the controller mode is Manual.
