MOD 30ML Display Guide
Display Basics
2 -22
Figure 2 .16.
Totalizer Display for
Exercise …
3. Select the Initial/Restart tab of the
Totoalizer block.
4. Select Run as the Initial mode as shown
in the next figure.
This will be the initial mode for the totalizer.
It will start totalizing as soon as the
database is downloaded. Also note that the
default restart mode (mode upon instrument
power up) for the totalizer is Previous.

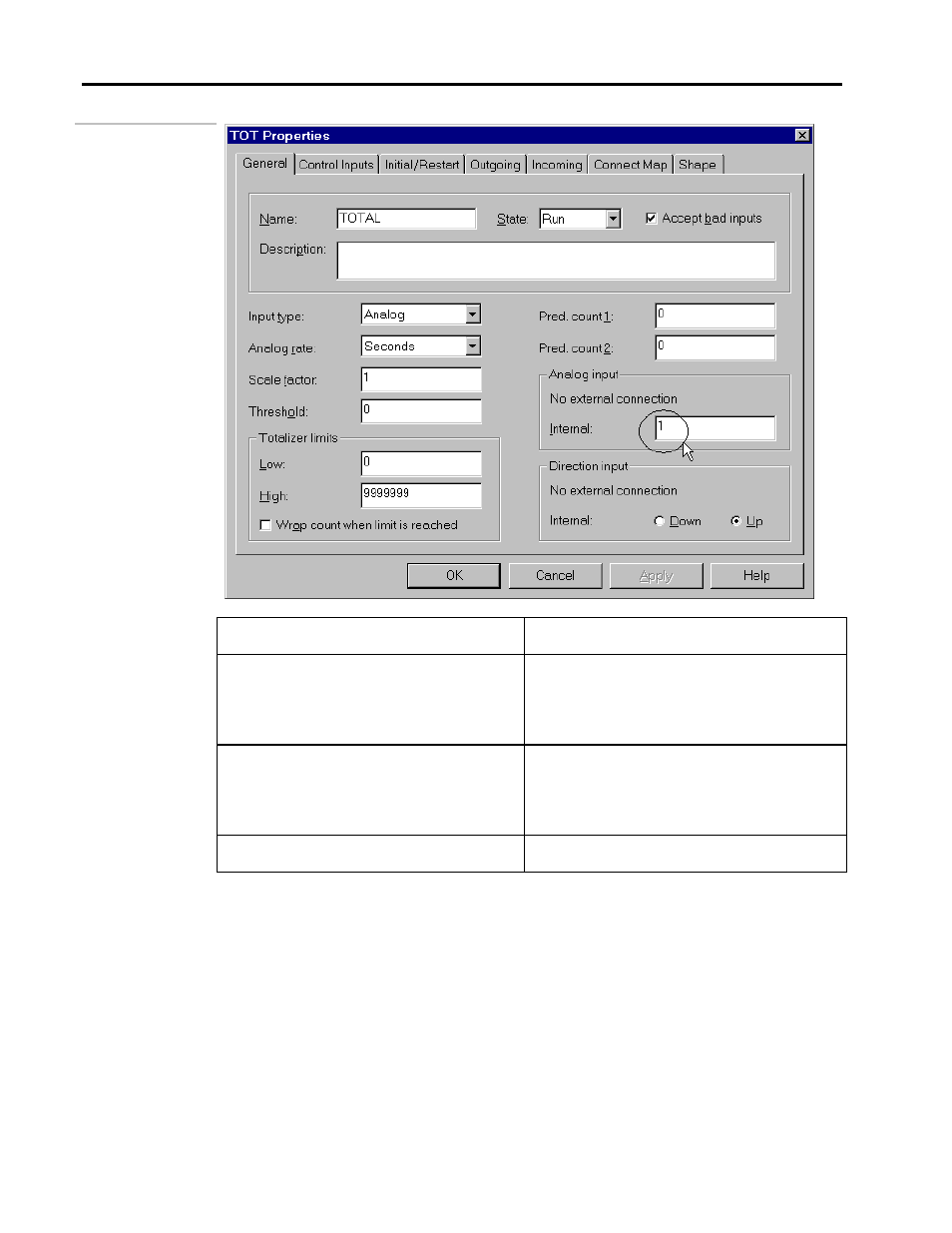

5. Specify an Analog input to totalize. Any
analog source may be connected to the
blocks ANALINP, or a fixed value can be
entered into Analog input Internal field on
the General tab.
The totalizer will totalize this input.
6. Click on the OK button and close the
Totalizer block
