MOD 30ML Display Guide
Display Basics
2 -5
In order for the new display to appear on the front panel during operation, you must place
the Display Tag name in the Display List of the Display Interface Block, which manages
displays in the controller.

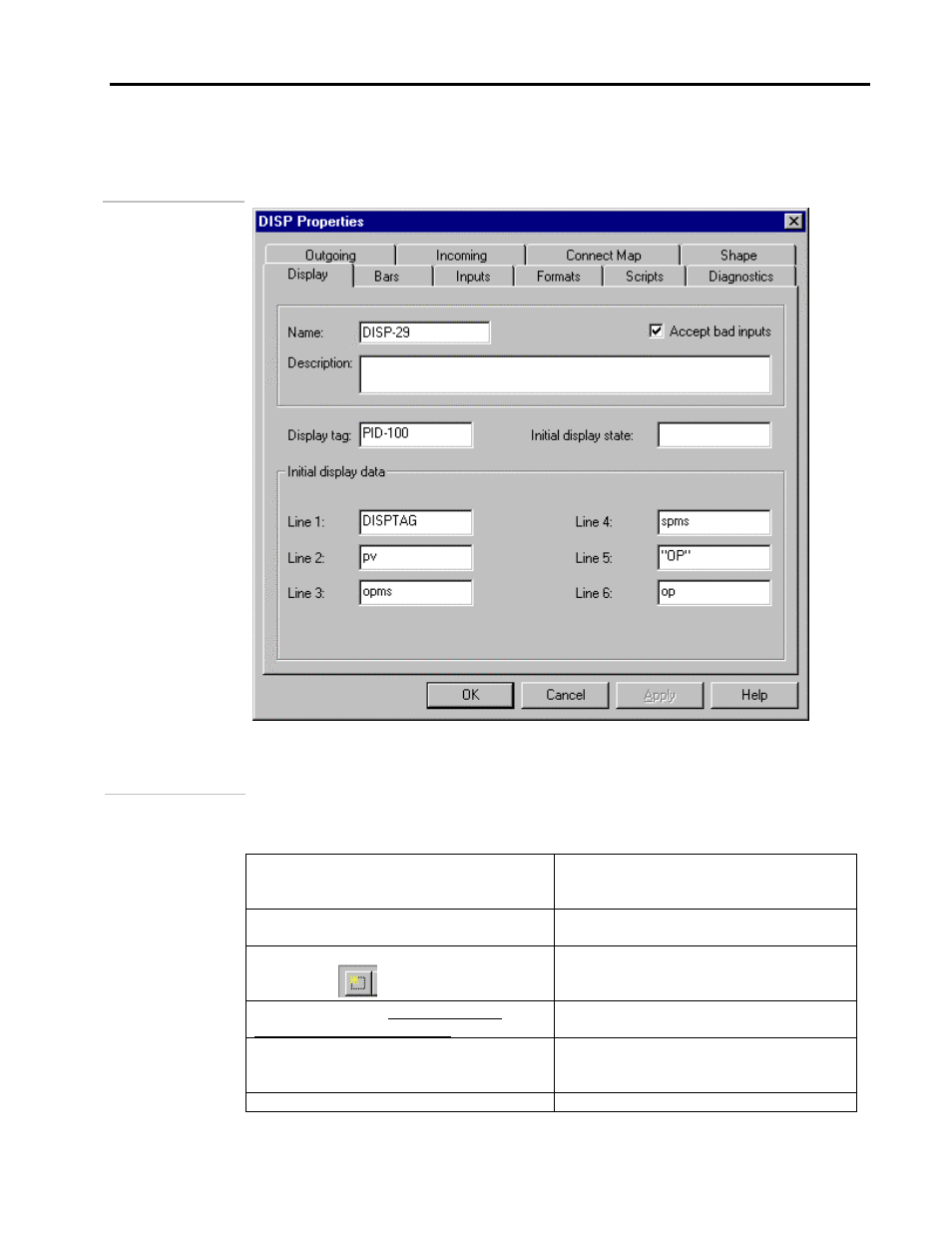

Figure 2 .3.
Display Block Menu
When the TAG key is pressed, displays will appear in the order in which they are listed in
the Display List.
Exercise: Typical
PID Loop display
(cont’d)
Action
Comment
6. Back up to the highest level of the
strategy where the IF, SE, DIF and ST
blocks appear.
7. Double-click on the DIF block to view the
menus
8. Select the “New” icon on the Display Tag
List toolbar.
An empty box appears in the Display Tag
List window
9. Type the tag name exactly as it was
entered in the Display Block.
The Display List is case sensitive.
10. Select the button next to User Display and
type the tag name.
This will cause the display to appear on
the front face at power up, instead of the
default device display.
11. Click on OK, and save the file.
