Table 4-4. Analog Output (ANO) Module
Purpose: The primary purpose of this module is to set the 0 - 20 mA output signal relative to the
displayed percent and to select the analog input signal (ANI0-3) that is to be routed to the analog
output (ANO0).
Title Symbol ANO0
Data-
point
De-
fault
Attribute
Analog Output
(Display Only) ANO0 C000 0 The value in this datapoint represents the percent of
output to be generated by hardware (e.g., 100%
output = 20 mA).
Analog Output
Source B100 0 This parameter determines which analog input
(ANI0-3) is routed to the analog output (ANO0). The
routing index values are as follows:
0 = ANI0
→
ANO0, 1 = ANI1
→
ANO0
2 = ANI2
→
ANO0, 3 = ANI3
→
ANO0
0 - 20 mA
Output OZBASE0 L472 0 When a 0, the percentage output generates a 4 - 20
mA signal. When set to 1 , the percentage output
generates a 0 - 20 mA signal.
Calibrate Zero COZ0 B267 These parameters are factory set and should not
need adjustment under normal operation. See
Section 5.3 for adjustment.
Calibrate Span COS0 C300
Tag Name AOTAG0 A244 ANO0 The assignable 10 character name for ANO0.
WD = Watchdog

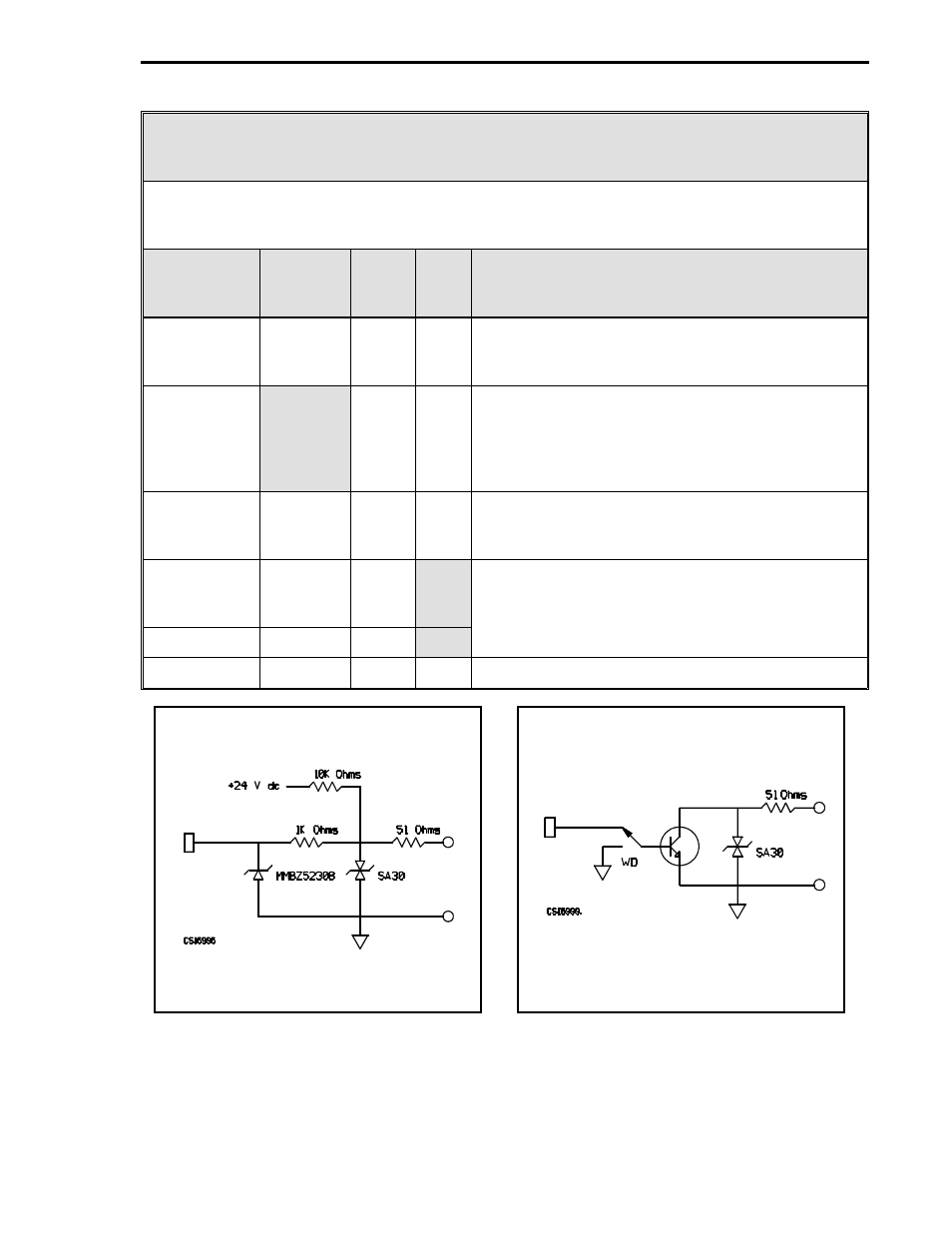

Note : These figures are graphical representations of the signal conditioning that occurs on the in-
strument main board. They are provided for reference purposes only.
Figure 4-3. CCI0/1 Figure 4-4. CCO0/1
Section 4. Configuration Parameters
4-5
