Micromod Micro-DCI: 53IT5100A Indicator/Totalizer - Manual (Page 37)

Table 3-3. Procedure to Alter a Datapoint
Step Press
Once
Shift
Result
Press to
Locate
Target
Char.
Result
1 ● Puts instrument in engineering mode.
2 If CONFIGURE does not appear, press 2.
3 3 Displays entry line: POINT .
4 C Puts C on entry line: POINT .C.
5 .C
∆
1 Shifts C and puts 1 on entry line:
POINT .C1.
6 .C1
∆
7 Shifts C1 and puts 7 on entry line:
POINT .C17.
7 .C17
∆
5 Shifts C17 and puts 5 on entry line:
POINT .C175.
8 3 Enters address to display datapoint contents. The address with the contents
are displayed as follows: C175 80.0000.
9 hold .
locator
C175 contents shifted right; only the locator
point remains on the entry line: C175 .
10 9 Puts 9 on entry line: C175 .9.
11 .9
∆
0 Shifts 9 and puts 0 on entry line:
C175 .90.
12 3 Enters the value 90 in datapoint C175.
13 ● Returns instrument to operator mode.
Note:
∆
= space.

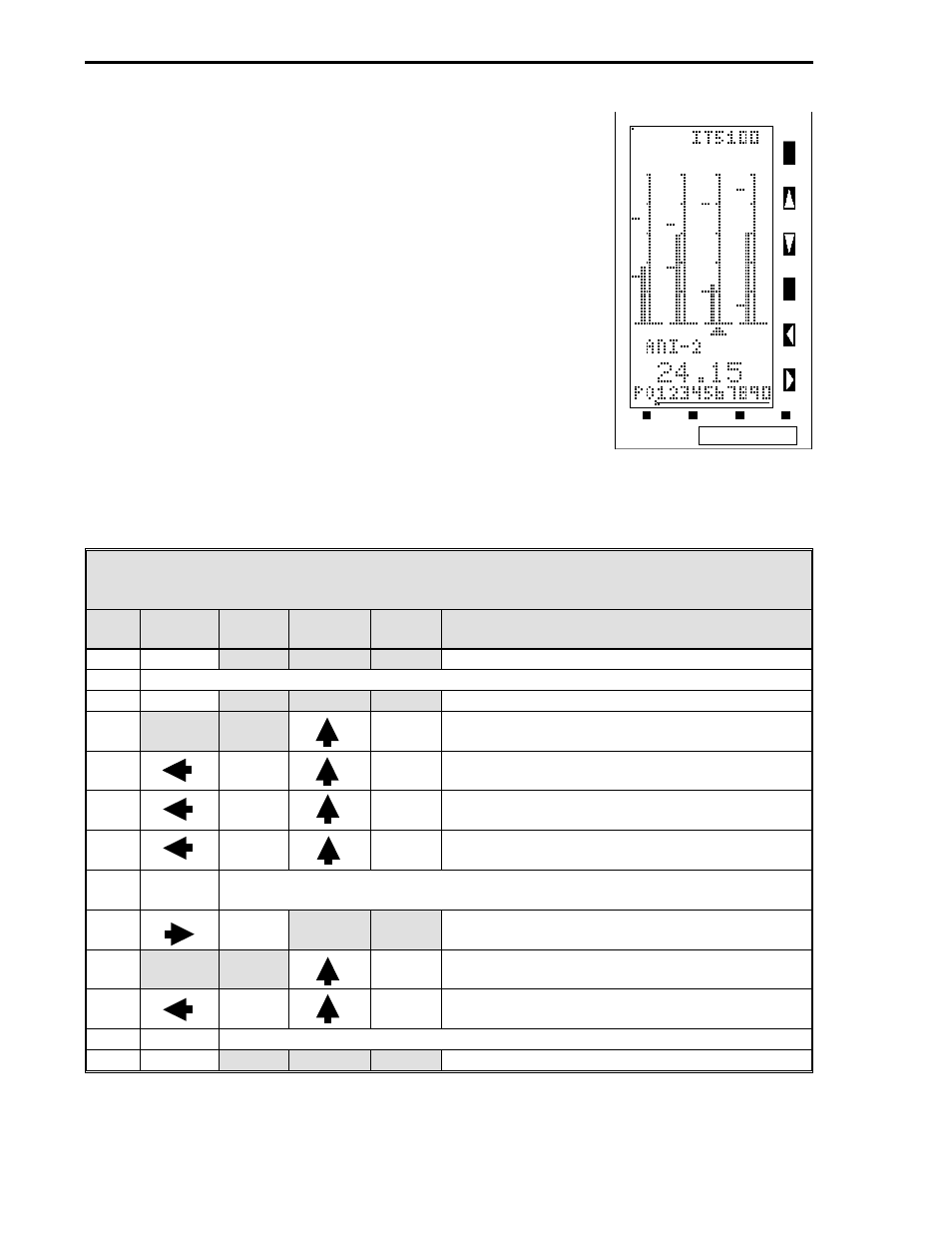

Figure 3-10. Entry
Line Ten Character
Field
3.4.3 ALTERING A DATAPOINT
The procedure in Table 3-3 illustrates how to alter the contents of data-
point C175, which is ANI2 Alarm Limit 1, from 80 to 90. Figure 3-10 is
provided to show the maximum input character length for the engineer-
ing mode edit line. The edit line can accept ten characters. The full ten
character field is used primarily for the A type datapoint text strings
(tag names). Reference Table 4-1 in Section 4 for information about the
datapoint types. Note that in Figure 3-10, the PO is residual from the
prompt POINT and that the character field string starts with 1 and ends
with 0 (underlined in the figure) to illustrate 10 characters.
53IT5100 Indicator/Totalizer
3-10
