3.4.2 DISPLAYING A DATAPOINT
The following procedure illustrates how to display the contents of datapoint C175, which is ANI2
Alarm Limit 1. Figure 3-9 contains supporting illustrations for the display procedure described in
Table 3-2. (Notice in these illustrations that ANI-2 Alarm Limit 1 is set at 80.)

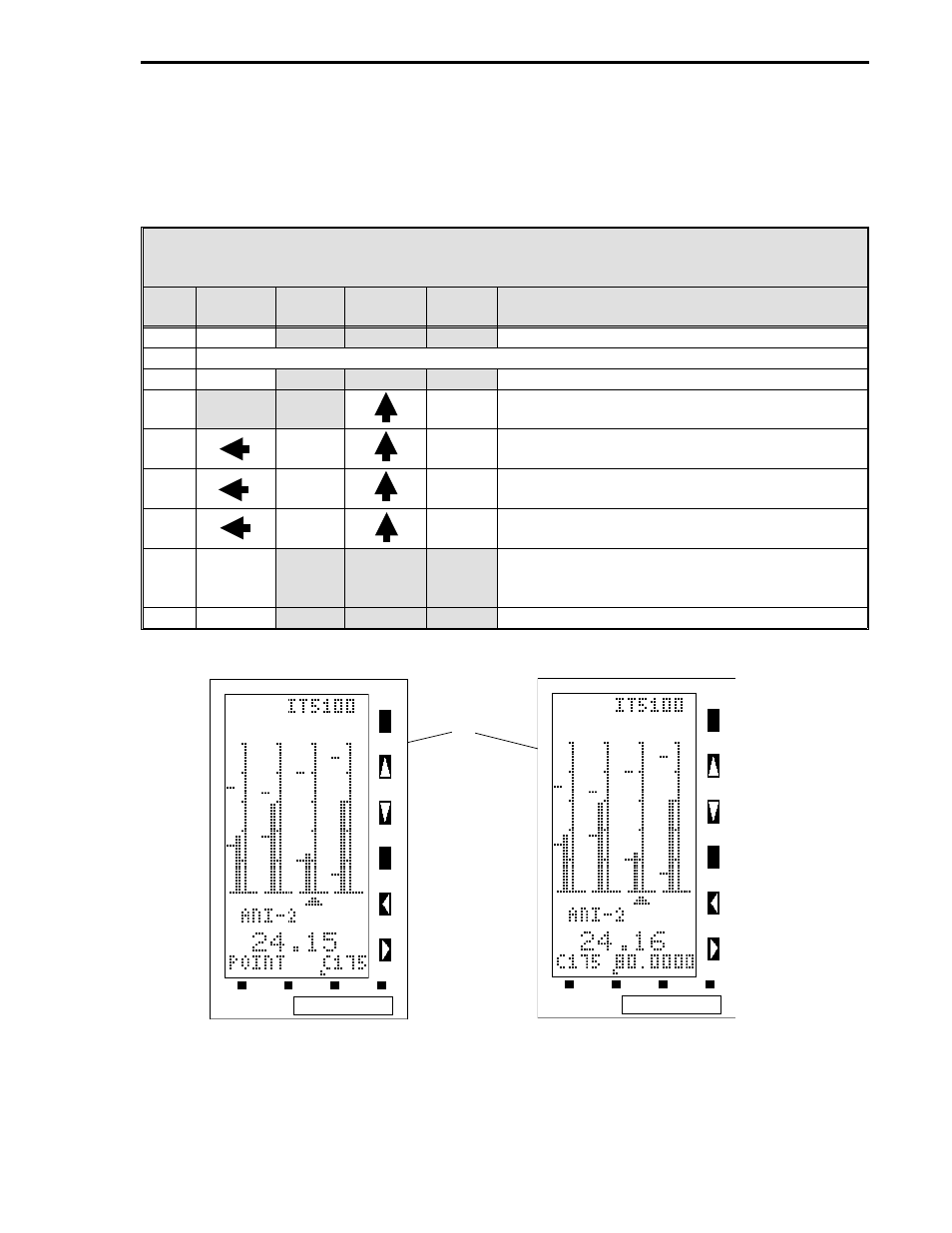

Table 3-2. Procedure to Display a Datapoint
Step Press
Once
Shift
Result
Press to
Locate
Target
Char.
Result
1 ● Puts instrument in engineering mode.
2 If DISPLAY does not appear, press 2.
3 3 Displays entry line: POINT .
4 C Puts C on entry line: POINT .C.
5 .C
∆
1 Shifts C and puts 1 on entry line:
POINT .C1.
6 .C1
∆
7 Shifts C1 and puts 7 on entry line:
POINT .C17.
7 .C17
∆
5 Shifts C17 and puts 5 on entry line:
POINT .C175.
8 3 Enters address to display datapoint contents.
The address with the contents are displayed as
follows: C175 80.0000
9 ● Returns instrument to operator mode.
Note:
∆
= space.
Addressing a Datapoint Displaying a Datapoint Contents
Figure 3-9. Displaying a Datapoint
