Micromod Micro-DCI: 53IT5100A Indicator/Totalizer - Manual (Page 29)

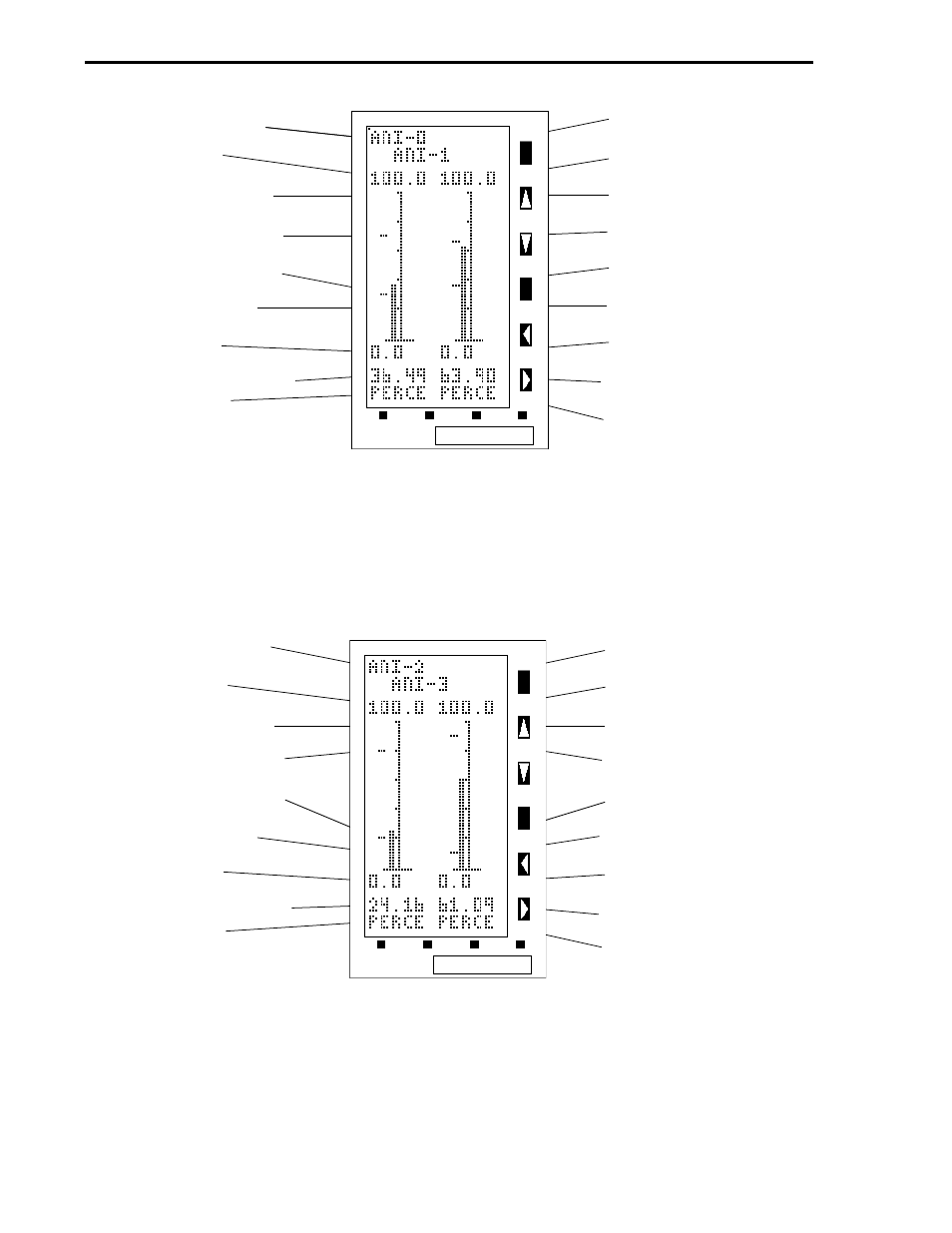

Figure 3-2. Dual Bar Graph (Channels 1 & 2)
Figure 3-3. Dual Bar Graph (Channels 3 & 4)
ANI0 Tag Name (A224)
ANI0 Span (C256)
50 Segment Graph Scale
ANI0 Alarm Limit 1 (C103)
ANI0 Alarm Limit 2 (C104)
ANI0 Process Variable
ANI0 Zero (C276)
ANI0 Digital Readout (H000)*
ANI0 Units (A298)
*Display only.
ANI1 Tag Name (A225)
ANI1 Span (C257)
50 Segment Graph Scale
ANI1 Alarm Limit 1 (C139)
ANI1 Alarm Limit 2 (C140)
ANI1 Process Variable
ANI1 Zero (C277)
ANI1 Digital Readout
(H001)*
ANI1 Units (A299)
ANI2 Tag Name (A226)
ANI2 Span (C258)
50 Segment Graph Scale
ANI2 Alarm Limit 1 (C175)
ANI2 Alarm Limit 2 (C176)
ANI2 Process Variable
ANI2 Zero (C278)
ANI2 Digital Readout (H002)*
ANI2 Units (A300)
*Display only.
ANI3 Tag Name (A227)
ANI3 Span (C259)
50 Segment Graph Scale
ANI3 Alarm Limit 1 (C211)
ANI3 Alarm Limit 2 (C212)
ANI3 Process Variable
ANI3 Zero (C279)
ANI3 Digital Readout
(H003)*
ANI3 Units (A301)
53IT5100 Indicator/Totalizer
3-2
