MAP Technology The System
PN 89-00002-00-071 Rev. C 3 - 11

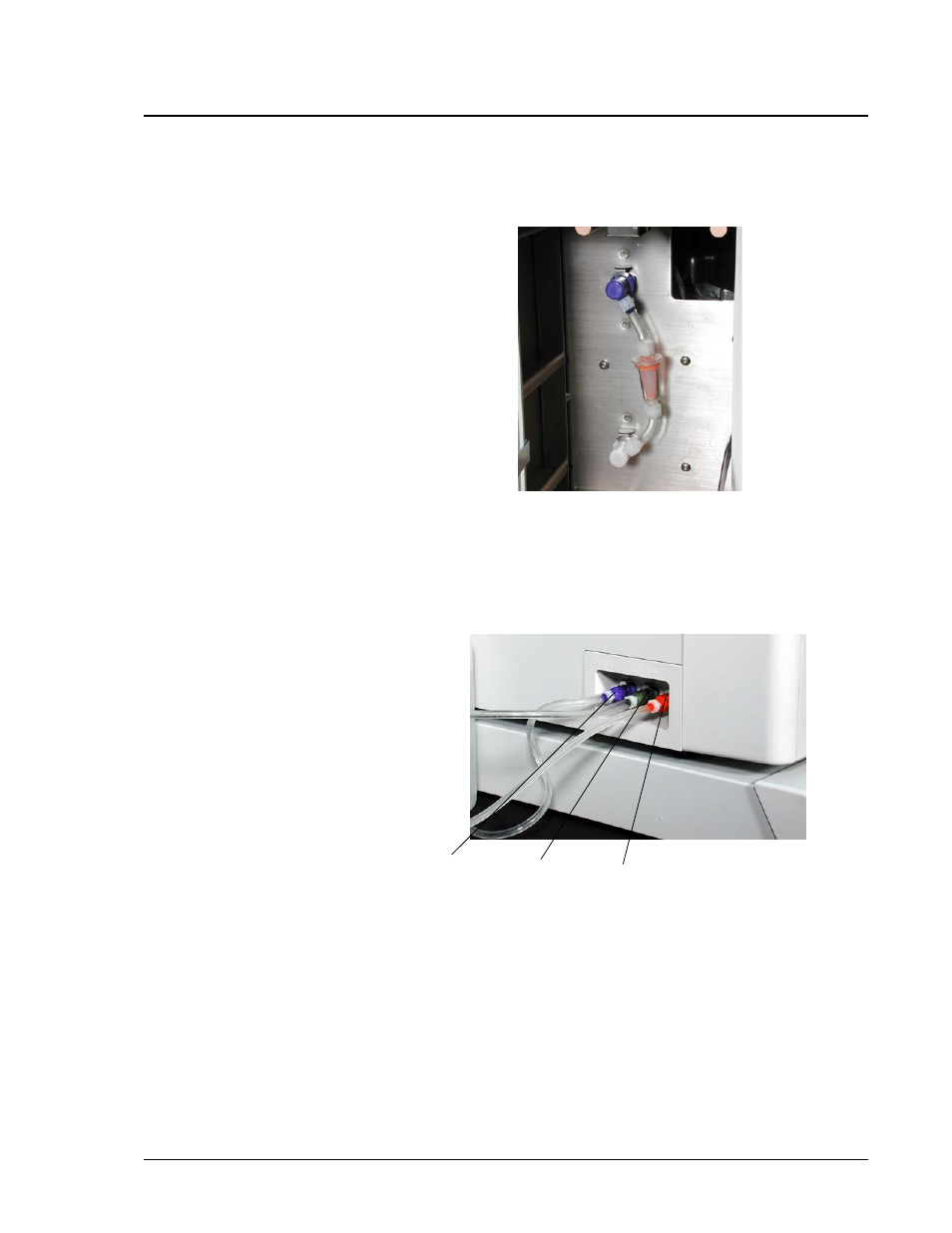

Sheath Filter The sheath filter removes particles greater than ten microns in
diameter from the sheath fluid. See Figure 3-6.
Figure 3-6 Sheath Filter
Air, Waste, and
Sheath Fluid
Connectors
The air, waste, and sheath connectors, located on the left side of the
analyzer, connect to the SD system and waste fluid containers using
clear tubing. The air connector is green, the sheath fluid connector is
blue, and the waste fluid connector is orange. See Figure 3-7.
.
1. Sheath fluid connector (blue)
2. Air connector (green)
3. Waste connector (orange)
Figure 3-7 Air, Waste, and Sheath Fluid Connectors
1 3 2
