MAP Technology The System
PN 89-00002-00-071 Rev. C 3 - 9
The alignment guide directs the sample probe into the Luminex XYP
instrument.
1. Cheminert Fitting
2. Sample Arm
3. Luminex XYP Instrument Sample Probe
4. Shield
5. Alignment Guide

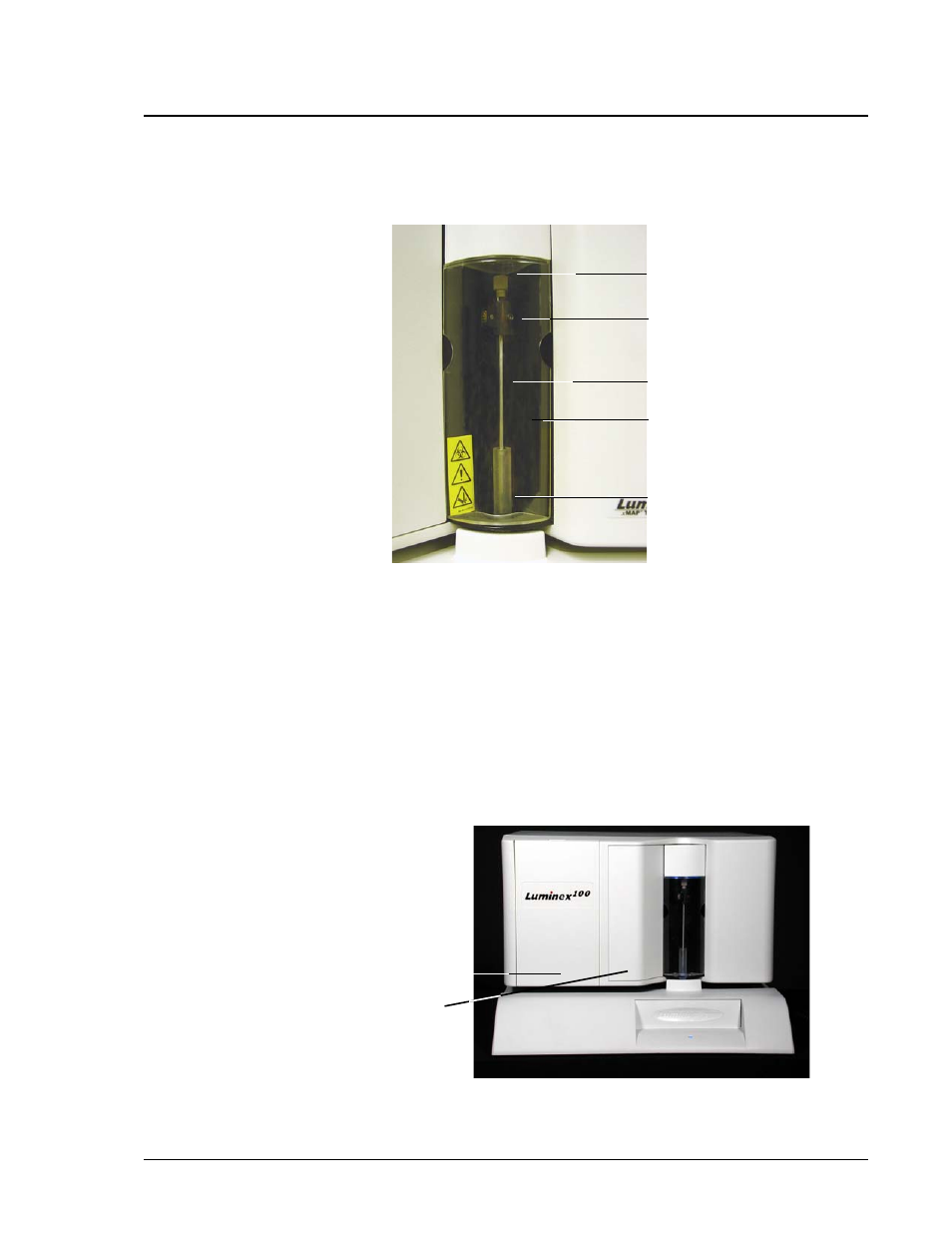

Figure 3-2 Cheminert Fitting
Access Doors The Luminex 100 analyzer has three access doors. Two of the access
doors are on the front, and the third is on the back. The front left
access door supplies access to the sheath filter. The front center
access door supplies access to the syringe. The rear access door
supplies access to the air intake filter. See Figure 3-3 and Figure 3-4.
1. Left door, access to service panel 2. Center door, access to syringe
Figure 3-3 Luminex 100 Analyzer Access Doors
3
5
1
4
2
2
1
