MAP Technology
3 - 10 PN 89-00002-00-071 Rev. C
Air Intake Filter A replaceable air intake filter cleans the air used to pressurize sheath
fluid. This filter is enclosed behind an access door located on the
back of the Luminex 100 analyzer. See Figure 3-4.

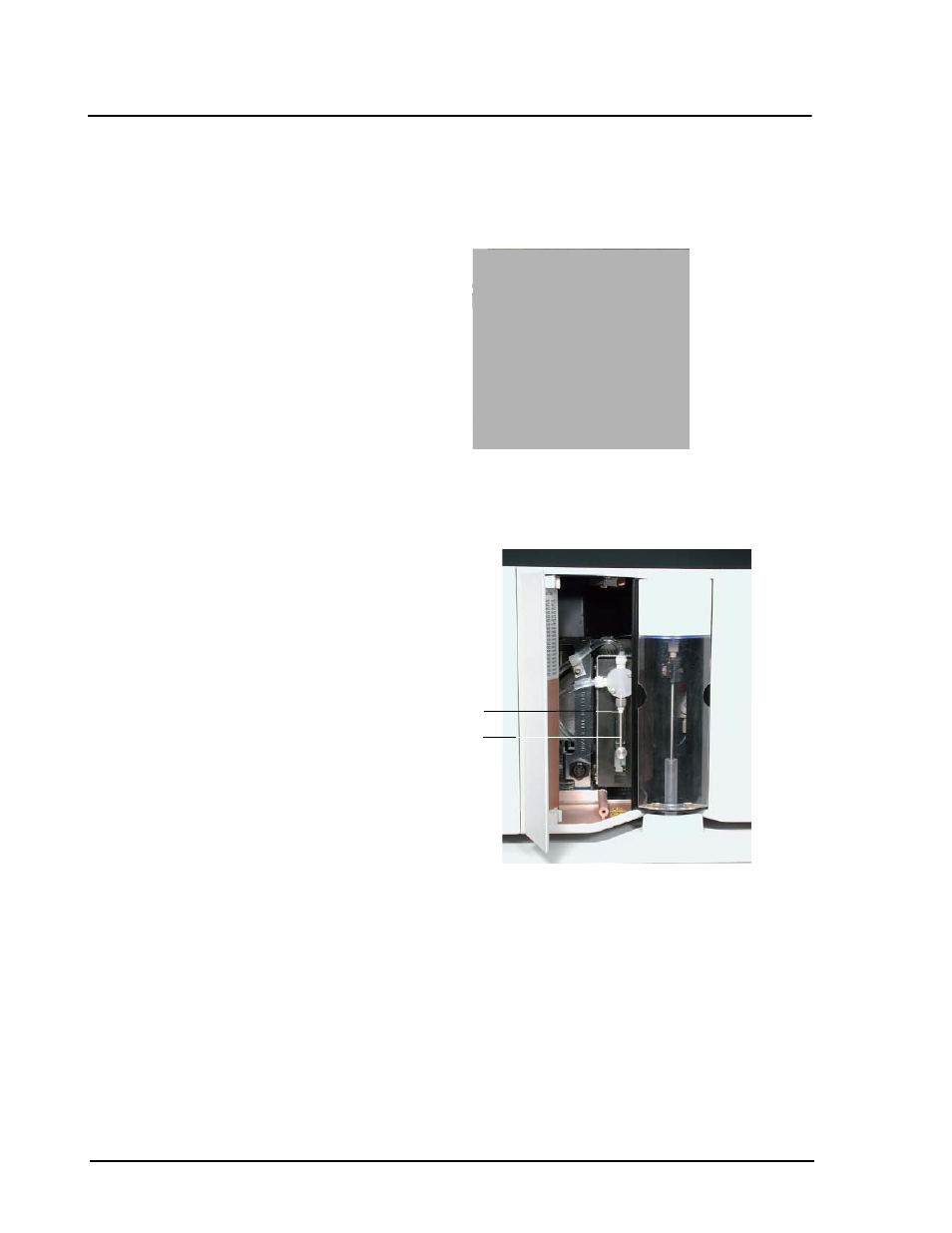

Figure 3-4 Air Intake Filter
Syringe The syringe delivers a sample from the 96-well microtiter plate to the
cuvette. See Figure 3-5.
1. Syringe Seal 2. Syringe
Figure 3-5 Syringe and Syringe Seal
1
2
