MAP Technology Using Luminex 100 IS 2.3 Software
PN 89-00002-00-072 Rev. C 5 - 11
The Detailed Sample Progress section displays the percentage of
completion for each bead ID or test. The graph shows real-time
progress, so that as each sample is analyzed, the graph adjusts to
show progress. Use the zoom button to view up to 20 tests at a time.
Use the toggle button to view the bead ID or test name. Use the
Expand Margin (up/down and left/right) arrows to expand the chart
margins and view longer test names. See Figure 5-9.
.
1. Zoom button
2. Toggle button
3. Expand Margin arrows

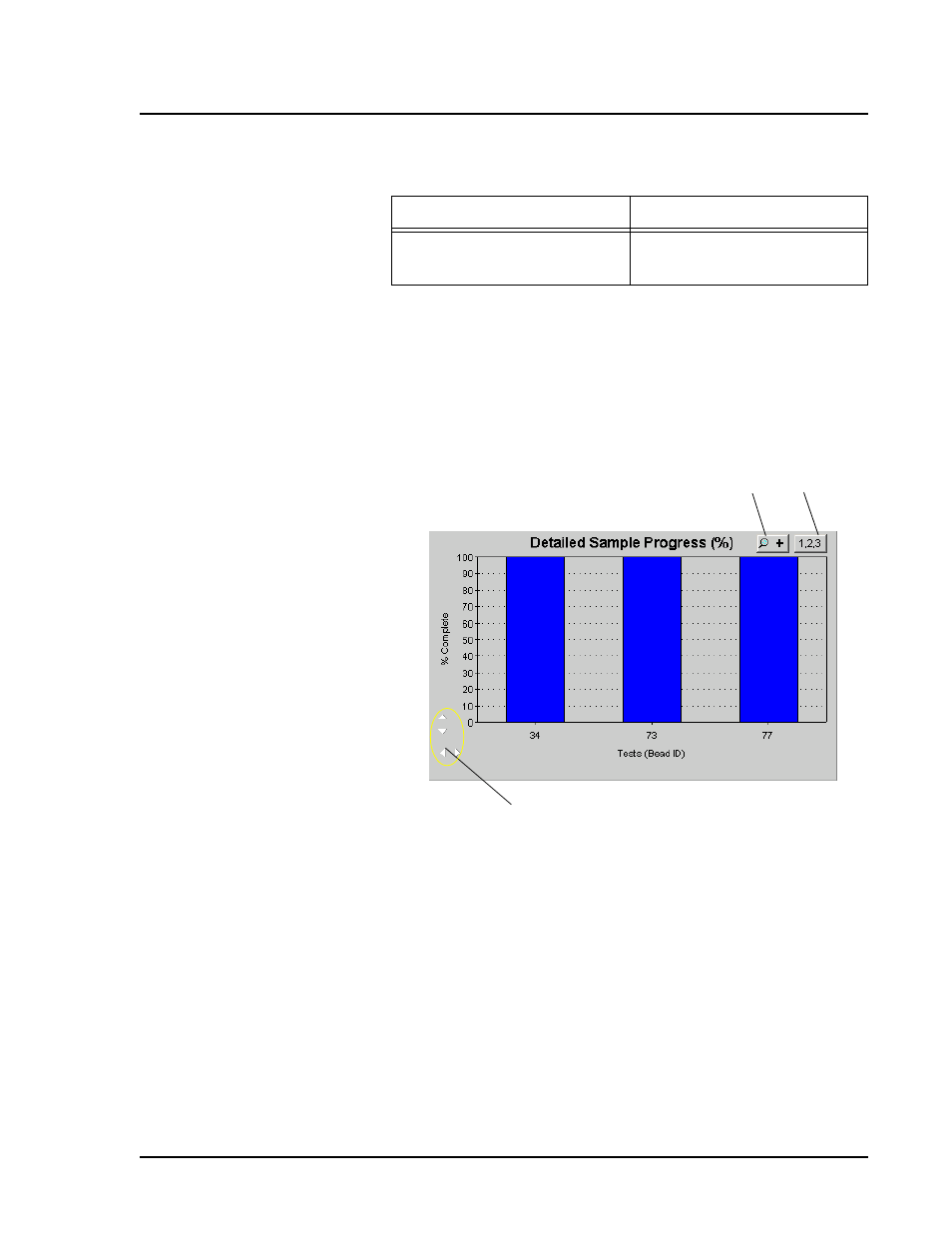

Figure 5-9. Detailed Sample Progress
The Message Log is the lower pane on the Diagnostic tab. It displays
a list of completed commands, errors, and warnings. It also displays
command progress, time and date, and results. See Figure 5-10.
XYP Heater Temperature In
Range Indicates if the XYP heater is in
the set range
Table 5-1. System Monitor Values (Continued)
Property Value Units of Measure
1 2
3
