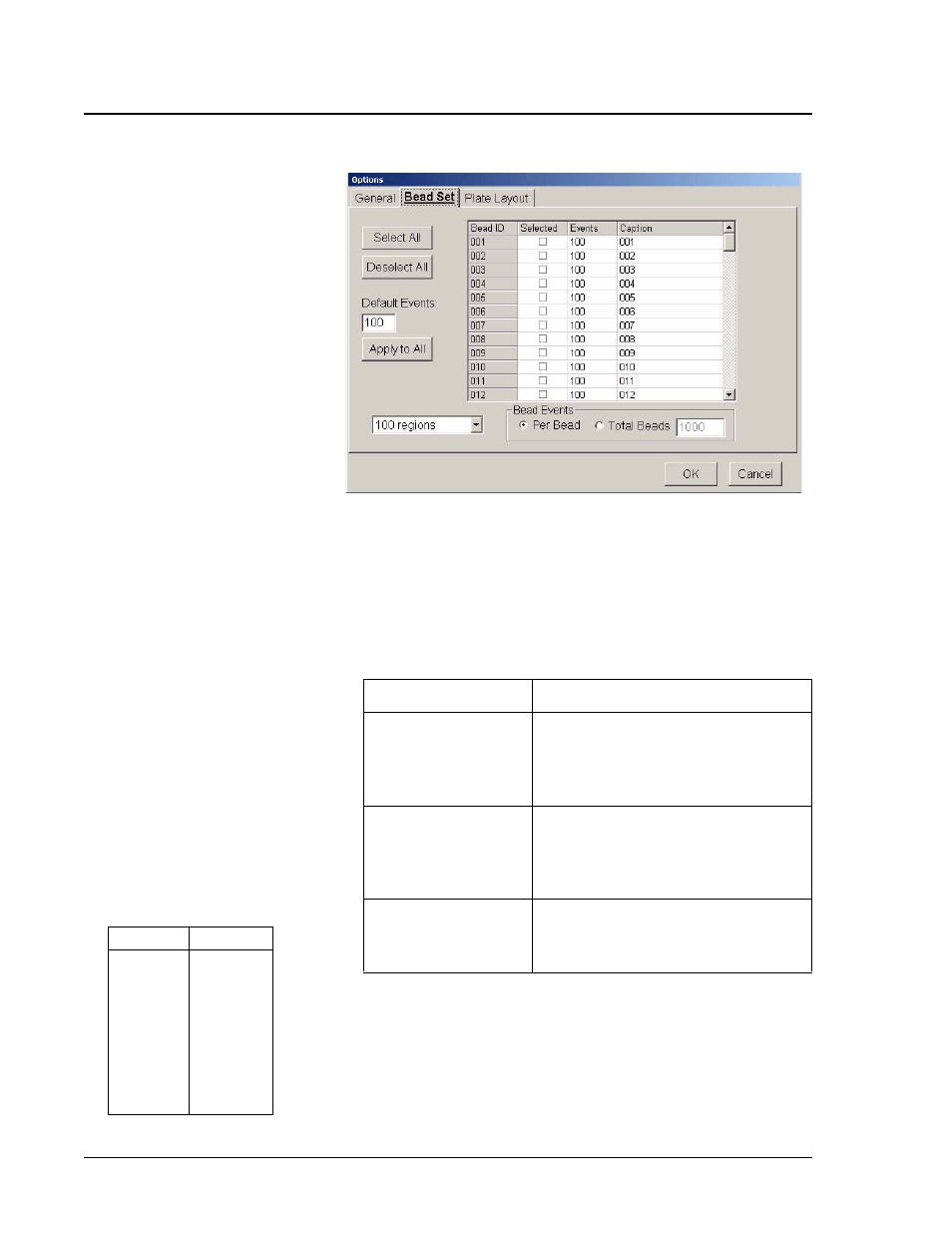

Figure 5-36. Options Dialog Box—Bead Set Tab

7. Edit the Events and Caption information for each bead set. Edit

the Default Events box to change the default value. Click Apply
to All to apply the default value to all bead sets. Table 5-8 lists
selection shortcuts.

8. Click the Plate Layout tab. See Figure 5-37. On this tab you

define commands for the desired wells on the plate. You can
define commands that apply to one or more wells, one or more
rows of wells, or one or more columns of wells. You can define
on-plate or off-plate commands.

Table 5-8. Bead Set Tab - Selection Shortcuts

Selected Column

Select by clicking in the box.

Events Column

Select desired field and right-click.
The value displayed in the “Default
Events” box updates the selected field
when you click “Apply Default”.

Caption Column

If names are defined under this
column, you can right-click selected
rows and “Reset” back to normal
defaults.

Entire Column

Select an entire column by clicking
the column heading (Selected,
Events, or Caption).

Table 5-9. Symbol

Color Codes

Symbol

Color

C1
C2

N1
N2

Blue
Red
Green
Teal
Purple
Olive
Black
Fuchsia

Note:

The legend at the left

side of the tab (No, Cmd
Name, and Symbol columns)
shows available commands
and their colored-coded sym-
bols. Symbol appears in the
