MAP Technology Using Luminex 100 IS 2.3 Software
PN 89-00002-00-072 Rev. C 5 - 73

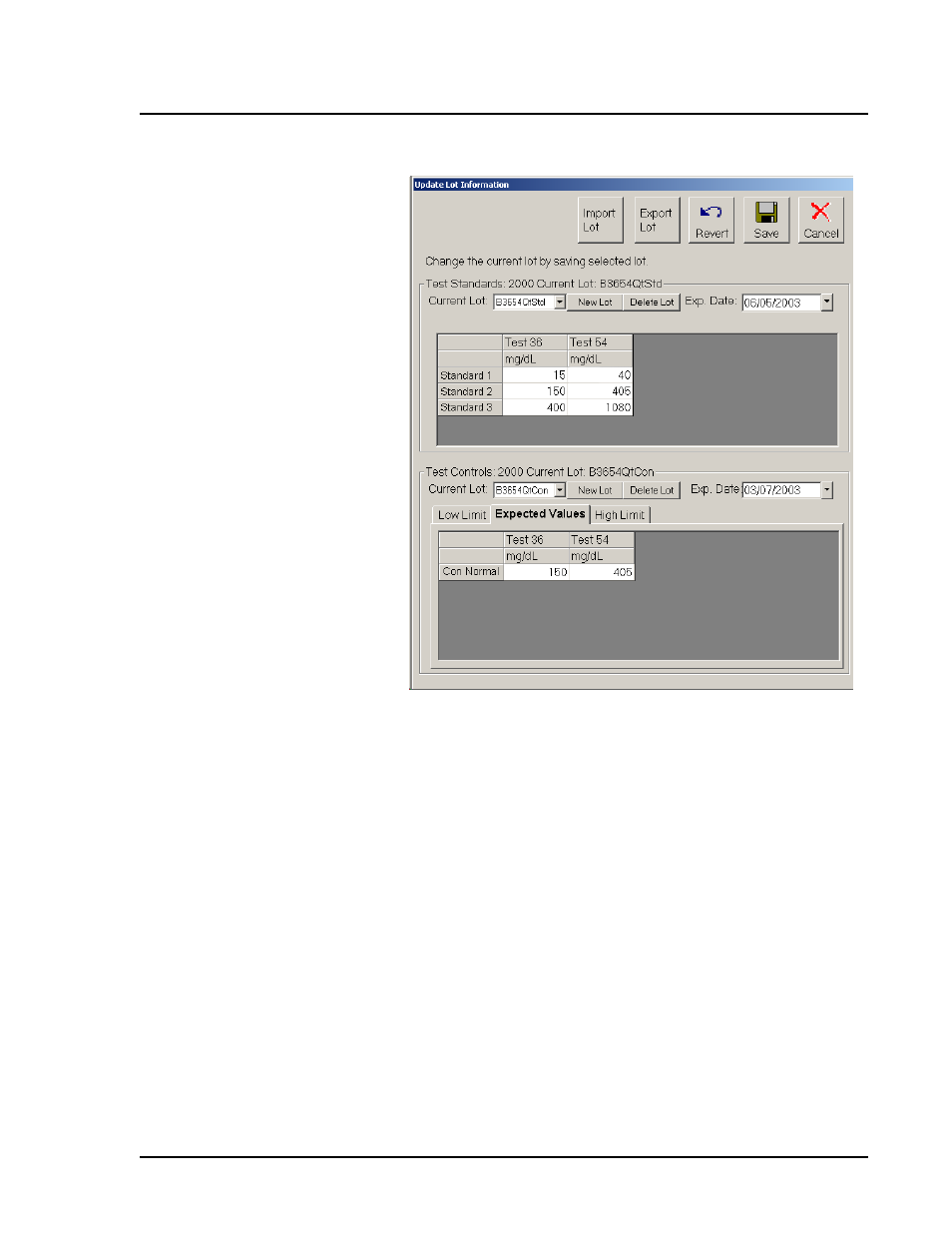

Figure 5-43. Update Lot Information Dialog Box
4. Enter the expiration date in the Exp. Date field.
5. Enter the standard concentration values provided in the kit
manufacturer’s instructions. See Figure 5-43.
6. Enter the control reagent values. The controls are divided into 3
separate tabs: Low Limit, Expected Value, or High Limit. All
information must be defined to enable the Save button.
7. Click Save. The system applies the lot you just created to the
template.
Edit Lot
Information on an
Unused Template
‹
To edit information for an existing lot:
1. On the Home tab, click New Lot. The Open Template dialog
box opens.
2. Highlight the template that you want to edit and click Select. The
Update Lot Information dialog box opens. See Figure 5-44.
