MAP Technology Luminex 100 IS 2.3 Firmware Installation
PN 89-00002-00-072 Rev. C B - 23

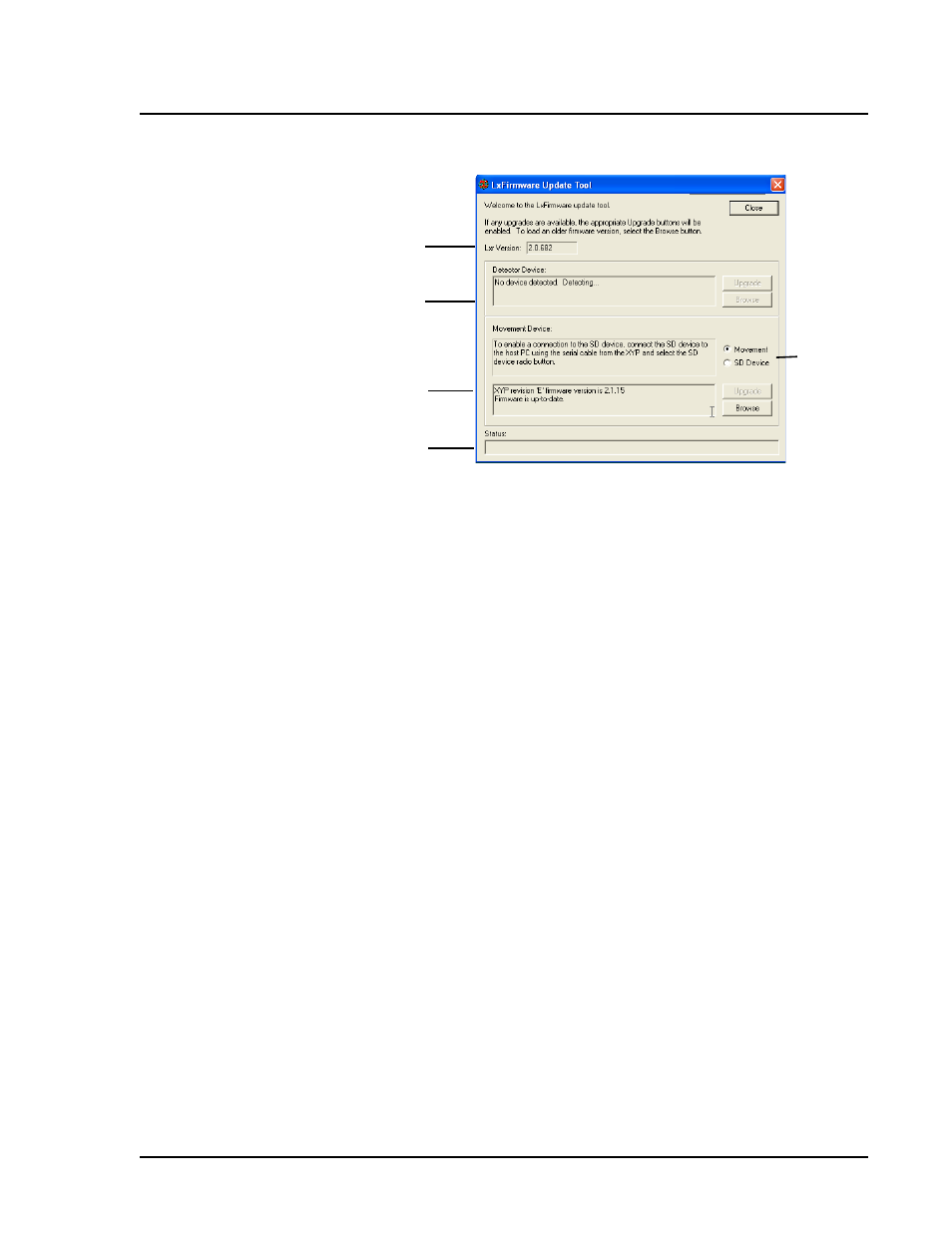

Figure B-19 LXFirmware Update Tool Dialog Box
4. Click Upgrade adjacent to the Detector Device text box. The
Confirm LX100 Firmware Download dialog box opens. Click
Yes to continue with the upgrade. Click No to return to the
previous dialog box.
5. The Download In Progress dialog box opens displaying the
progress. Read the information presented on the dialog box.
When the download is finished the Status text box displays
Download Complete. Click OK.
6. Turn off the power for 5 seconds, then turn the power to the
Luminex 100 back on.
7. Next verify the upgrade. See note.
Verify Successful
Firmware Upgrade
1. Start up the Luminex 100 IS software.
2. On the Help menu, click About the Device. The About the
Luminex 100 & Luminex XYP Devices dialog box opens.
3. Verify that the Controller Version entry for the Luminex 100
Device Information section on the dialog box displays the
upgrade version.
Note: If you are directed by
Technical Support or by
upgrade kit instructions to
upgrade to a specific
firmware version, then click
the Browse button and select
the desired firmware version
from the Open dialog box.
1
2
3
4
5
1. LXR Runtime Version 4. Status of Upgrade
2. Luminex 100 analyzer firmware version 5. Movement Device/SD Device selection button
3. Luminex XYP / SD instrument firmware version
Note: If you are upgrading the
Luminex XYP instrument firmware
consider doing it at this time, then
verify the Luminex 100 analyzer
and the Luminex XYP instrument
at the same time.
