1603-065-T-4-13 7

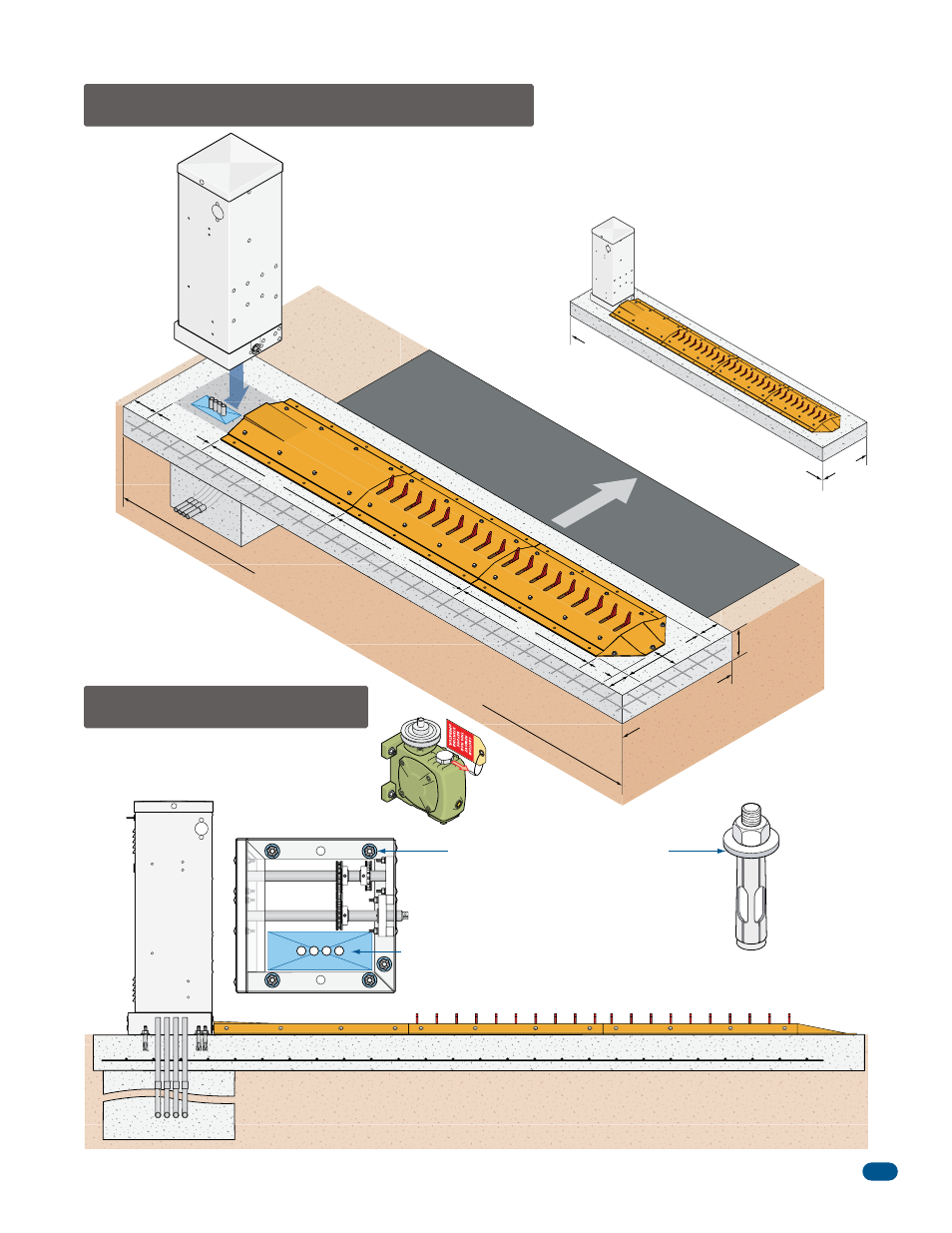

1.2 Concrete Pad Requirements
1.3 Mount Operator
Depth of concrete under the operator
is determined by soil conditions and
local building codes.
6”
6”
6”
20”
1
2
3
6”
DO NOT install operator
or spikes on asphalt.
Traffic Direction
32” Minimu
m
Center operato
r
and sp
ikes al
ong length
of co
ncrete pad.
32”
Min
6” Minimum
Embedded Wire M
esh
15.5”
36”
The operator and auto spike system must ONLY be installed on a concrete pad with
a minimum 6 inch depth. The concrete pad must be FLAT and LEVEL (Check local
building codes for restrictions). Reinforced concrete recommended.
It is recommended that the
“Spike” sections not exceed
9 feet (Three 3-Ft spike sections)
for proper operation.
Concrete length: 2 spike sections 147.5”
Concrete length: 3 spike sections 183.5”
Embedded Wire Mesh
Sections MUST lay flat and level to operate properly!
Sleeve Anchors
Conduit
Approximate position of conduit runs. Access Door
Inside Operator
Secure the operator to the concrete
pad with the mounting flange using
1/2” x 3” minimum sleeve anchors
(not supplied).
Sleeve Anchor
1/2
DO NOT mount sections at this time.
Remove breather pin from gear
reducer AFTER the operator has
been secured in place.
36”
36”
12
”
Note: Operator shown
mounted on the LEFT side
of traffic lane (preferred).
