1603-065-T-4-13 1
1”

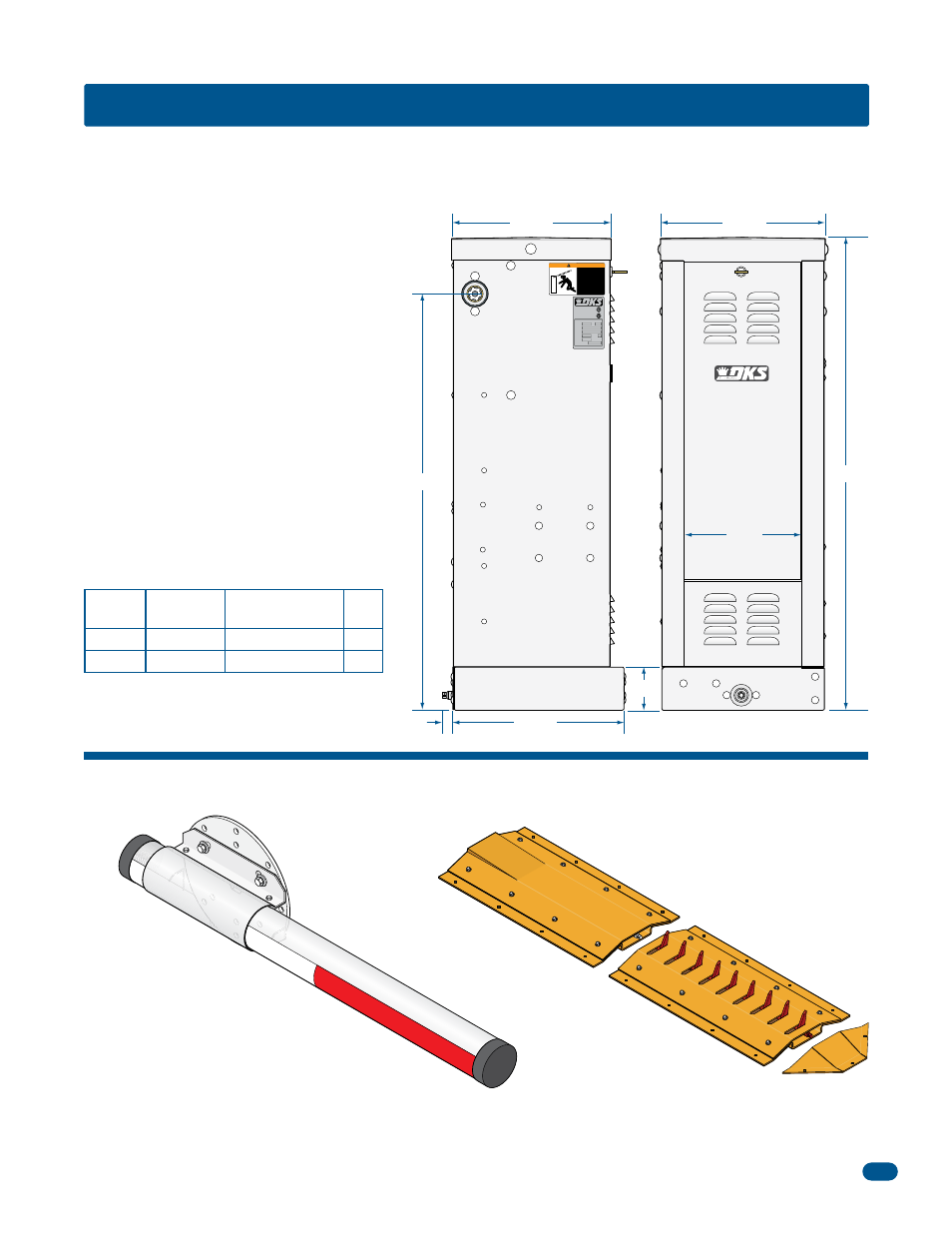

1603 SPECIFICATIONS
15.25”
43.6”
38.5”
14 Ft. Aluminum Arm Only P/N 1601-516
Aluminum Arm Mounting Kit P/N 1601-242
Aluminum Folding Arm Kit P/N 1601-610
Foam Padding for 14 Ft. Arm P/N 1601-260
Extension Section
P/N 1603-166
Spike Section
P/N 1603-163
End Cap
P/N 1610-240
1603 Aluminum Arm
Folding arm assembly can be installed for low headroom application.
1603 Auto Spike System
Up to 3 spike sections can connect together.
1603 Housing
Drawings not to scale
14.74”
15.5”
CLASS
CERTIFIED TO CAN/CSA C22.2 NO. 247
CONFORMS TO ANSI/UL-325
VEHICULAR GATE OPERATOR HP
53382
MODEL
SERIAL
VOLTS PHASE
AMPS 60 Hz MAX GATE LOAD
DoorKing, Inc., Inglewood, CA
MOVING ARM can cause vehicle damage,
serious injury or death.
STAY CLEAR of arm at all times.
NO: Pedestrians Bicycles
Motorcycles
WARNING
10.8”
4”
Class of Operation
Model 1603 - UL 325 Class II, III, IV – ETL Listed
Type of Gate
Single Traffic Lane Vehicular Barrier Gate Only
Arm Types
Aluminum – Straight or Folding Arm
Max Arm Length
14 Ft.
Max Spike Length
9 Ft. (Three 3-ft spike sections)
Gate Cycles
High Cycle
Speed
90° in approximately 1.5 seconds
Primary Entrapment Protection
Inherent entrapment sensing system (Type A)
Secondary Entrapment Protection
Provision for connection of a non-contact sensor
(Type B1) and/or contact sensor (Type B2)
Model # Horsepower - Volts
1/2 HP - 115 VAC
1/2 HP - 115 VAC 1603-080
1603-081
Amp
5.7
5.7
Convenience
Open
No
Yes
Use this manual for the Model 1603 operators with circuit board 1601-010 Rev V or higher ONLY.
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.
Note: 208/230/460/575 VAC input voltage can be
connected to the operator by installing an “Optional”
High Voltage Kit (P/N 2600-266).
