1603-065-T-4-13 6

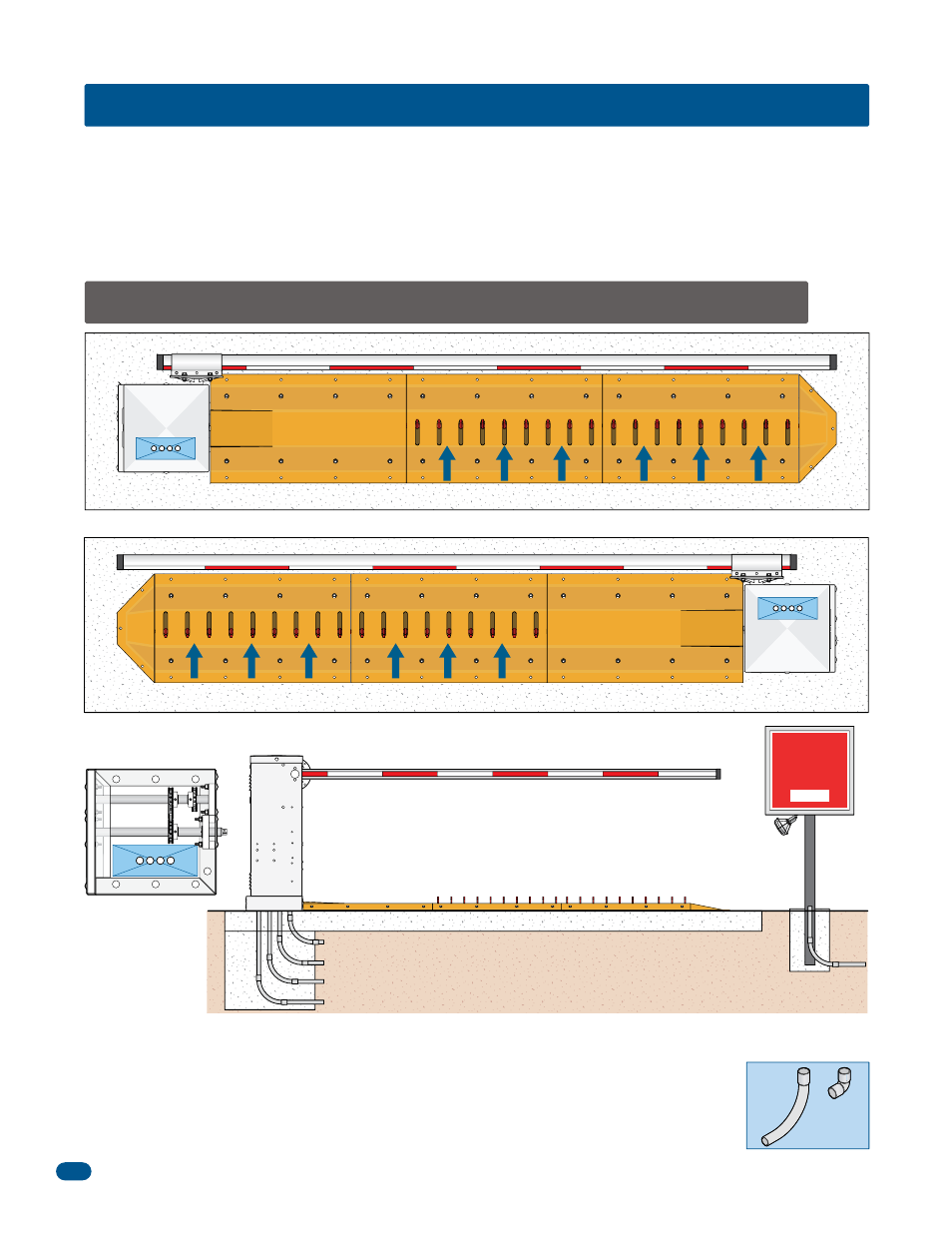

1.1 Operator Positioning and Conduit Requirements
SECTION 1 - INSTALLATION OF OPERATOR
• The conduit requirements are for a typical barrier gate operator installation. The conduit requirements for your
application may vary from this depending on your specific needs.
• Use only sweeps for conduit bends. Do not use 90° connectors as this will make wire pulls very
difficult and can cause damage to wire insulation.
• We suggest that minimum 3/4-inch conduit be used.
• Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
• Be sure that all conduits are installed in accordance with local codes.
Primary/Secondary Interconnection Cable (Dual Operator Application Only)
Prior to beginning the installation of the barrier gate operator, we suggest that you become familiar with the instruc-
tions, illustrations, and wiring guide-lines in this manual. This will help insure that your installation is performed in
an efficient and professional manner.
The proper installation of the vehicular barrier gate operator is an extremely important and integral part of the
overall access control system. Check all local building ordinances and building codes prior to installing this
operator. Be sure your installation is in compliance with local codes.
The spikes will retract towards oncoming traffic.
The spikes will be reversed from the left side mounting position and retract away from oncoming traffic.
Note: Operator shown mounted on the LEFT side (preferred).
Access Door
STOP
SEVERE TIRE
DAMAGE
NO PEDESTRIANS
IN TRAFFIC LANE
PROCEED ONLY WHEN
SPIKES ARE DOWN
Elbow
NO
Sweep
YES
Control and/or P.A.M.S. Wires (Low Voltage wire insulation)
Loop Lead-In Wires (Low Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
Illuminated Sign AC Input Power
(High Voltage wire insulation)
Access Door
Conduit Runs
Traffic Direction
Operator Mounted on
LEFT
Side of Traffic Lane Preferred
Access Door
Conduit Runs
Traffic Direction
Operator Mounted on
RIGHT
Side of Traffic Lane
Arm is mounted on opposite side of operator from oncoming traffic.
Arm is mounted on opposite side of operator from oncoming traffic.
Inside
Operator
Conduit Area
