1603-065-T-4-13 23

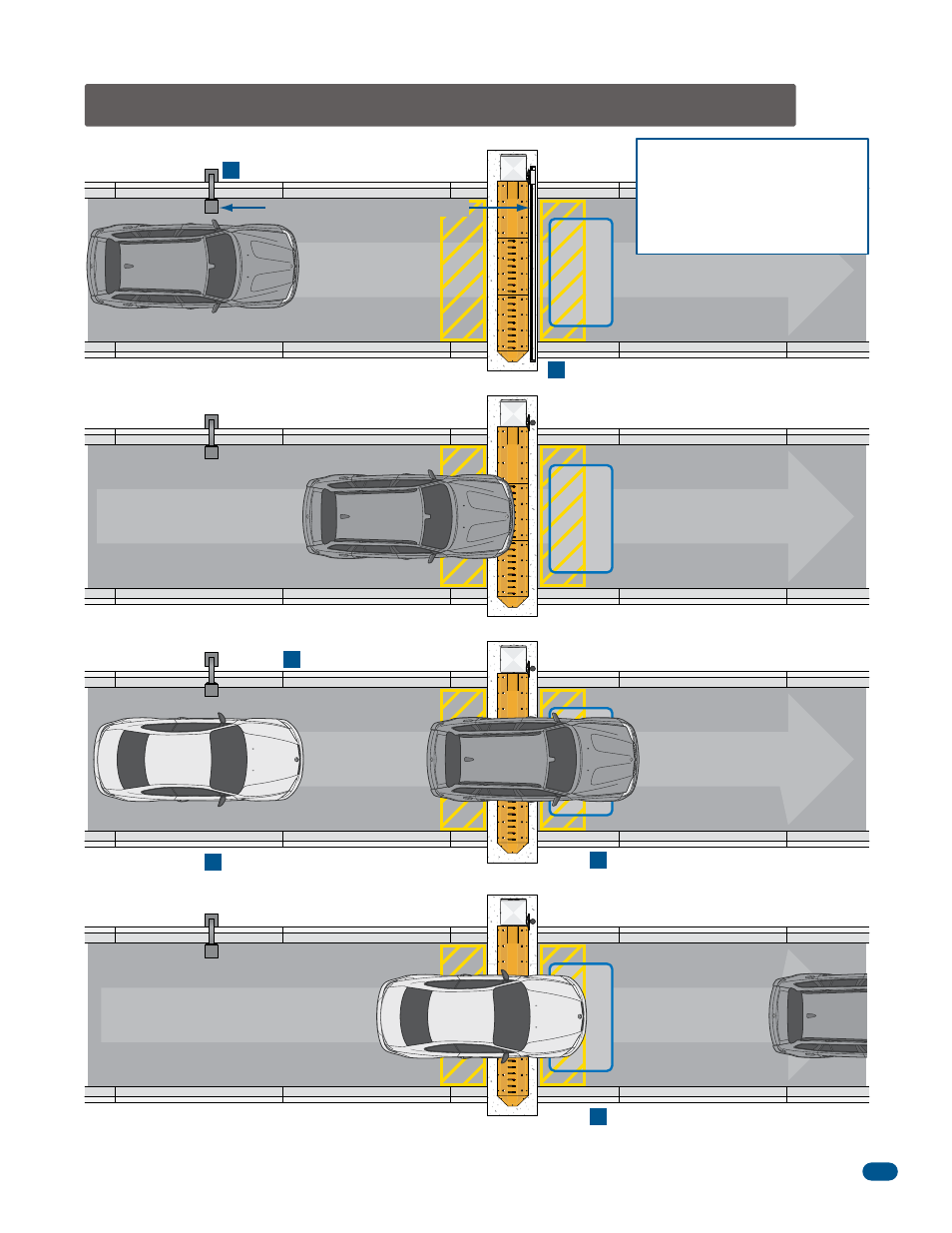

Option 1 - Override a DOWN Command
SW2, Switch 3 OFF
Down Loop
Valid UP command given.
Operator will raise arm.
1st Car
Down Loop
Down Loop
Down Loop
Remote transmitters are recommended for this option.
Note:
If an UP command is given while the arm is lowering, the arm will raise.
1
2
Access Control Device
Basic operator UP/DOWN cycle:
A. Valid UP command from the
access control device will raise arm.
B. Vehicle activating and clearing
the down loop will lower the arm.
Note: Operator will NOT accept
another valid UP command until
“1st Car” activates down loop.
1st Car activates down loop.
While 1st Car is on down loop,
the next UP command is given.
Operator will override “1st Car’s”
DOWN command.
Arm will remain up
and wait for the “Next Car’s” down loop
to be activated.
Next Car
3
4 5
1st Car
6 When “Next Car” activates then clears
down loop, arm will lower.
Option 1 CANNOT be used
at distances OVER 12 feet.
This allows multiple vehicles
in this area which Option 1
WILL NOT keep track of.
See Option 2 on next page.
12 Ft. Maximum Distance
1st Car
1st Car
Next Car
