3.3 Secure EACH Section to Concrete
Extreme force is exerted on the sections every time a vehicle drives over them. It is important that they have enough anchors in
them to keep them securely in place.
After you have tested the spikes and are satified with the way they perform, without moving the sections, secure EACH section
in place with 16 sleeve anchors (8 sleeve anchors are located inside the sections. The ramps will need to be unbolted to gain
access to the mounting holes). After ALL sections have been secured to the concrete, mount the end cap in place.
It is important to check the
sections every so often to make
sure all the anchors have not
loosened up. The spikes will
NOT function well with
loosened sleeve anchors.
Cleaning the Spikes
The ramps will have to be unbolted and the tunnel will need to have the debris cleaned out every so often to keep the spikes in
good working condition. The sleeve anchors mounted inside the tunnel will also need to be checked for looseness and repaired
when necessary.
End
Cap
Tunnel

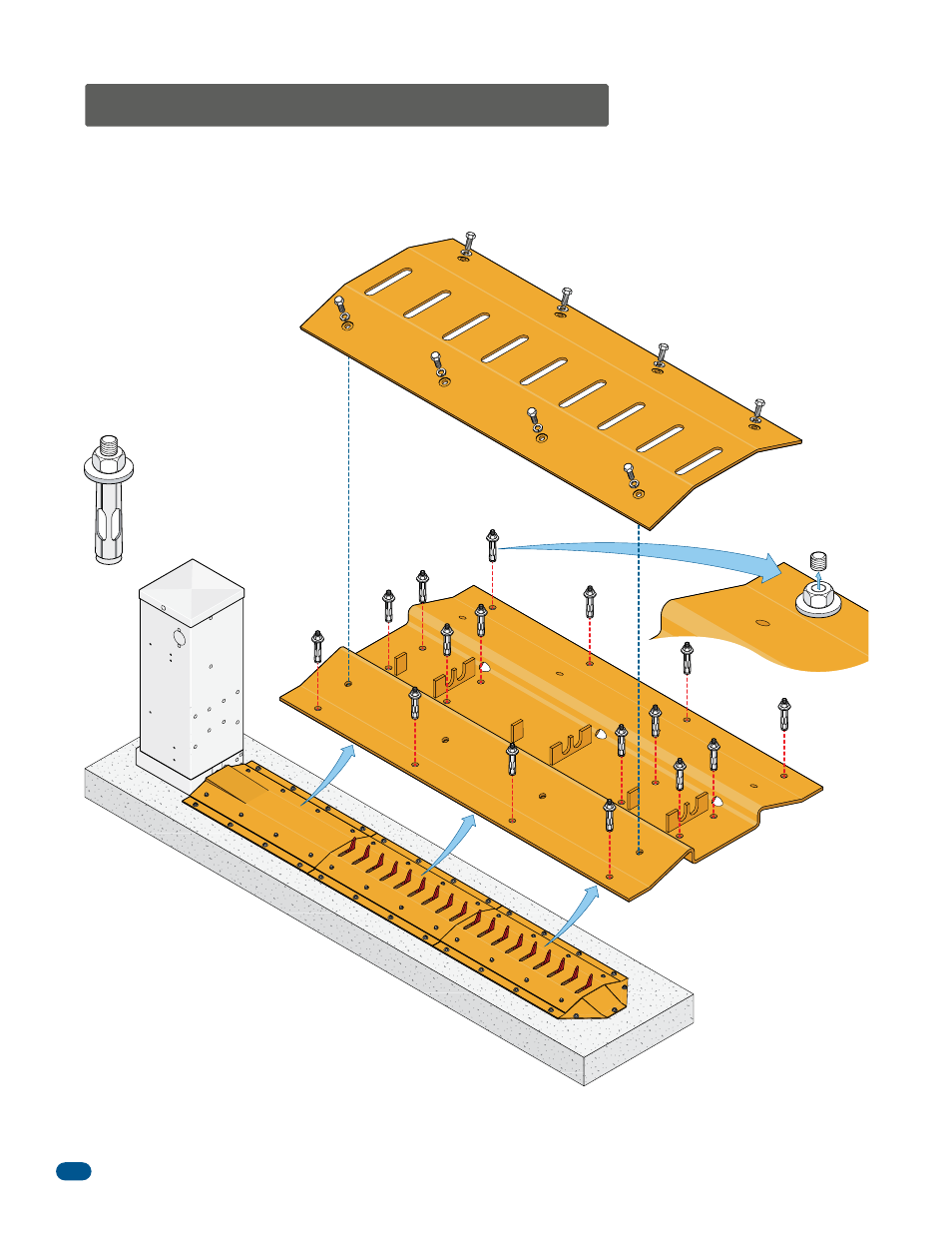

Note: Section illustrated without spike
rod and white plastic supports to better
show sleeve anchor mounting holes.
Cut off excess threads flush
with top of nut on the
sleeve anchors that will
come in contact with tires.
Secure sections and end cap to
concrete with 3/8” x 3” minimum
sleeve anchors (Not supplied).
3/8
Ramp
