MCN Remote Comparator Display Appendix A
CTI Products, Inc. Changing Status Message Text
68-10856-210
87

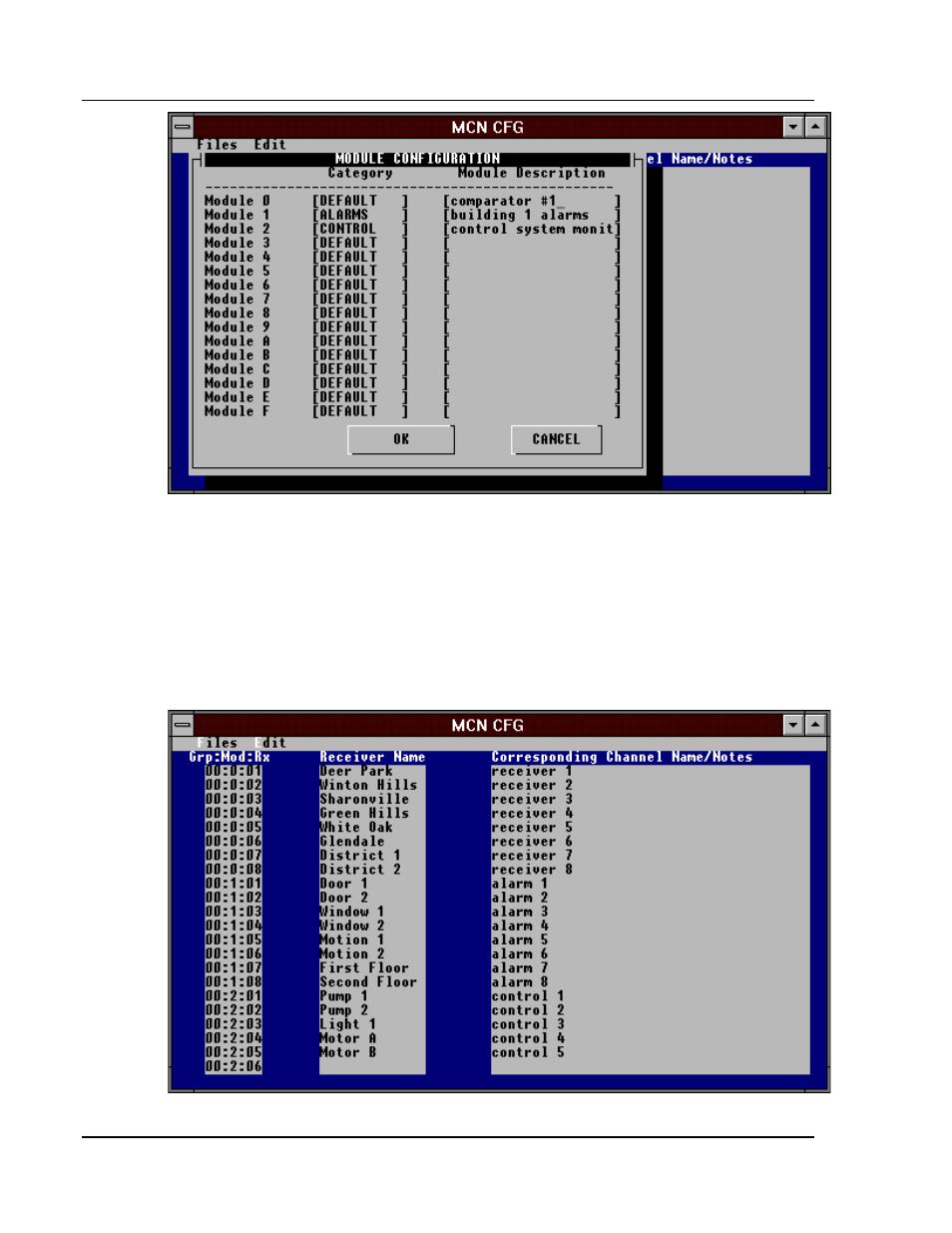

Figure 35 - Category Name Assignments
After the categories have been assigned to the modules, you will want to enter the
Group Configuration information, specifying which MCN Modules will be
displayed on the screen. Figure 36 shows a configuration for our example system.
Notice that Module 0, Rx 1 through 8 are receivers in a comparator system,
Module 1, Rx 1 through 8 are alarm system monitors and Module 2, Rx 1 through
5 are control system monitors.
Figure 36 - Multiple Category Group Configuration Screen
