MCN Remote Comparator Display Configuring a System
CTI Products, Inc. Using MCNCFG
68-10856-210
16
6.4.2 Defining a Group Number
Using the Edit Group Number menu command, you can define the MCN Group
for the Comparator I/O Modules being monitored. Figure 5 shows the pull-down
Edit Menu during Group Configuration.

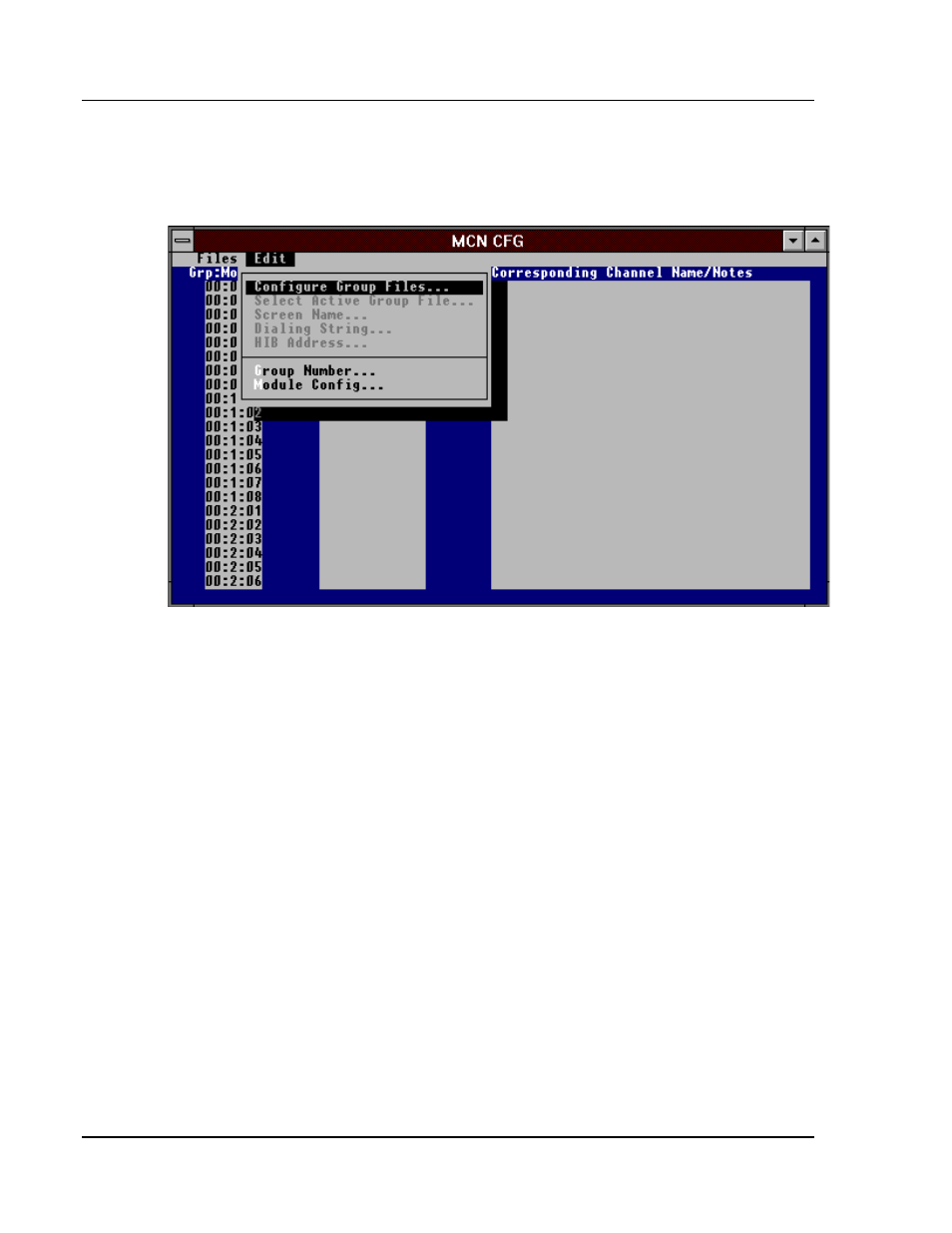

Figure 5 - Group Configuration Edit List
Figure 6 shows the dialog box that appears when the Group Number menu
command is executed. Enter a new Group number in the range shown on the
screen. Again, this Group number is the Group number assigned to the
Comparator I/O Modules that will be defined in this Group Configuration File.
