MCN Remote Comparator Display Configuring a System
CTI Products, Inc. Using MCNCFG
68-10856-210
34

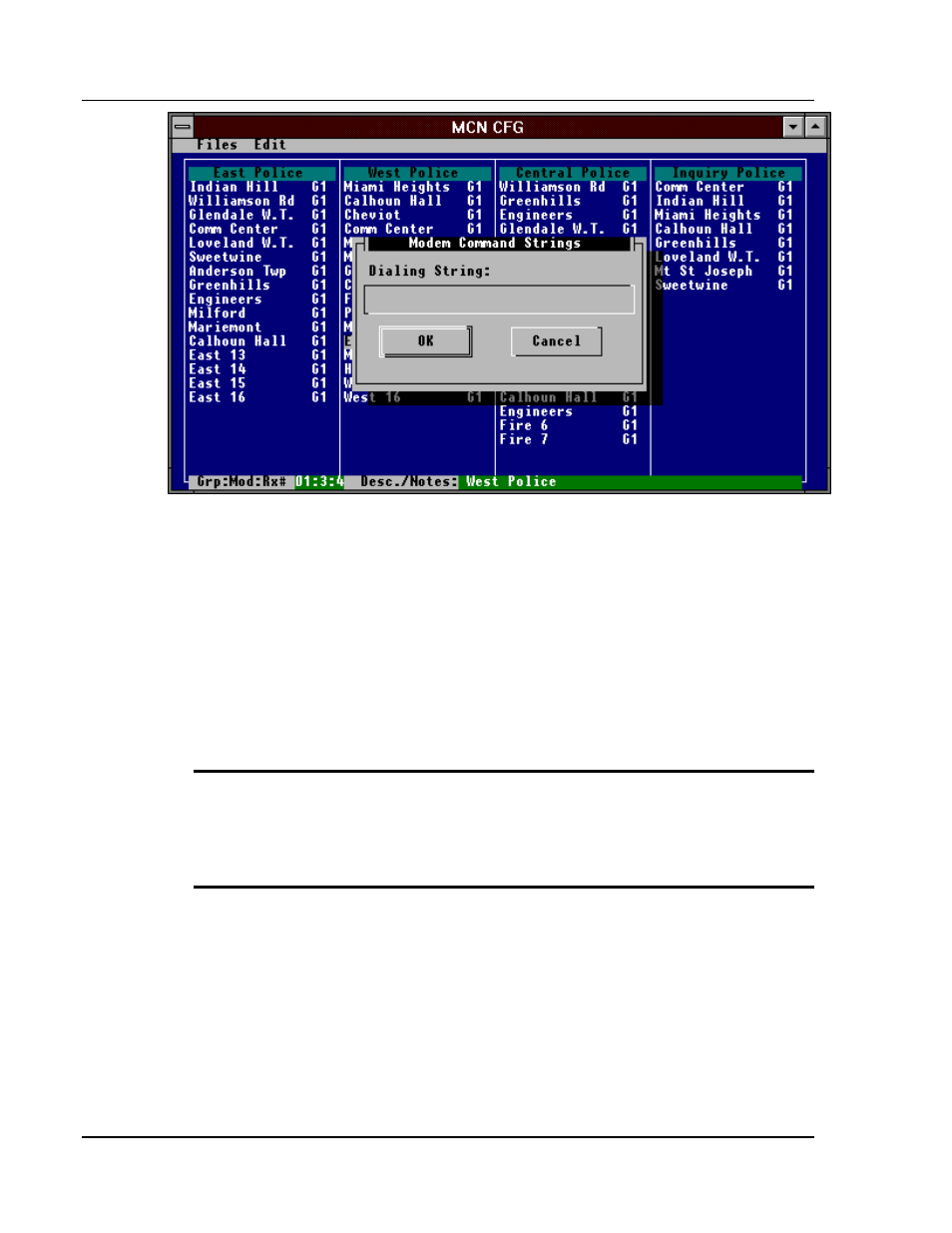

Figure 19 - Entering the HIB Dialing String
The dialing string consists of:
Description Typical Entry
1. Modem Attention Code ATDT
2. PBX Access Codes & Wait (if needed) 9W
3. HIB Modem Telephone Number 555-1234
The above example would be entered as: "ATDT9W555-1234" (Don’t enter the
quotes.)
For more information on your modems dialing commands consult your modems
documentation and section 10 for more details.
Tip: An easy way to test your modem dialing commands is to use a terminal
program such as Procomm. You can try different dialing strings to make sure they
work. Note that if you try calling the HIB with a terminal program such as
Procomm, you will see strange control characters coming back to you when the
modems connect.
