MCN Remote Comparator Display Configuring a System
CTI Products, Inc. Using MCNCFG
68-10856-210
28
6.5.3 Selecting One Group to Work With -- Set Active Group Dialog Box
When you place receivers on a display screen, you can work with receivers from
only one Group file at a time.
To select Group file 1, press E to select that .GCF file. Select one of the other
Group files to work with by using the Z or Y keys. Press the T key to get to the
OK button and then press E . You can also select a Group file with the mouse.
If you need to place receivers from more than one Group on the same screen,
place the receivers from one Group first and then use the Edit Select Active
Group File menu command to select a different Group to work with.

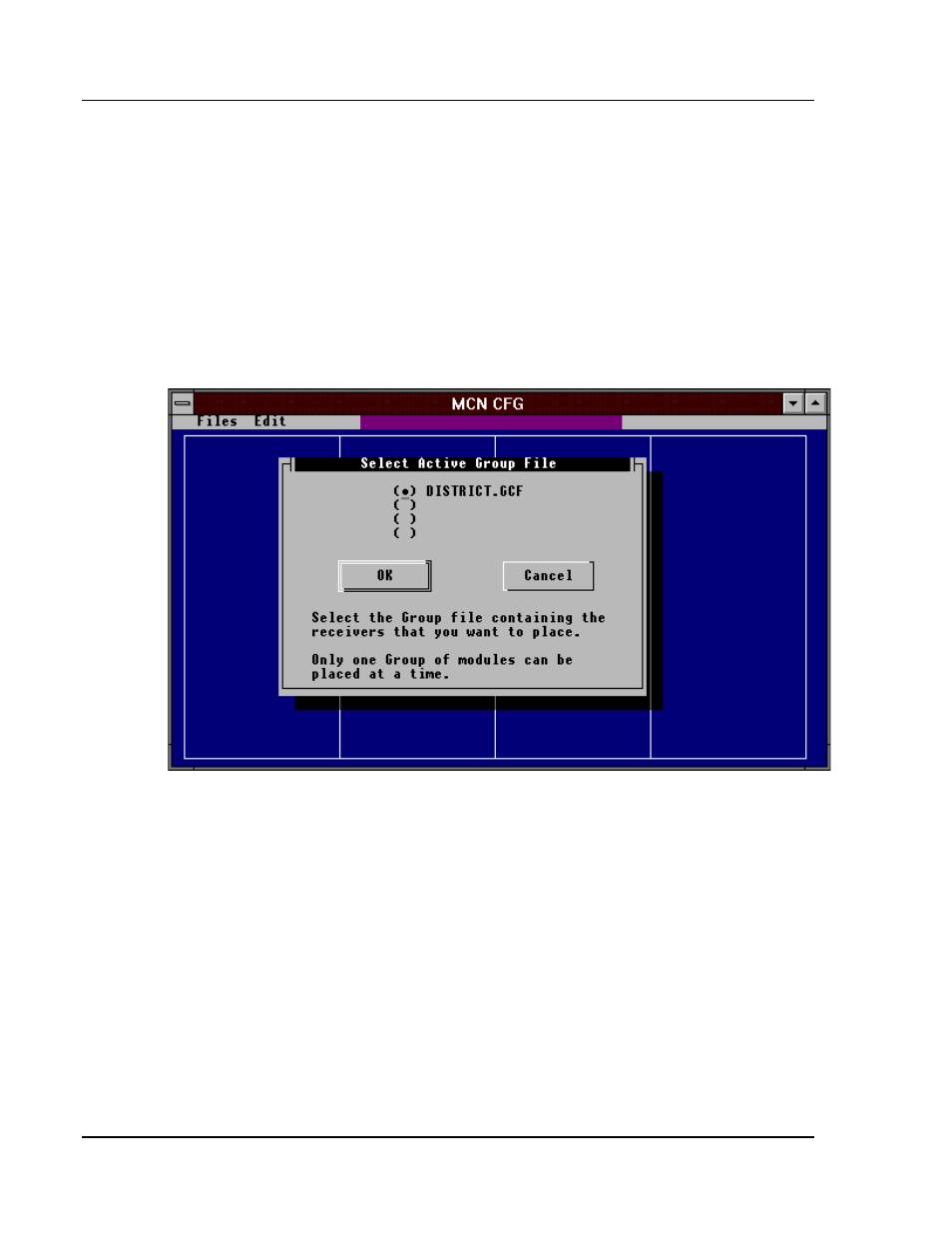

Figure 15 - Set Active Group File Dialog Box
6.5.4 Assigning a Unit Address to the HIB or PCLTA
As stated in the MCN System Manual, reference 1, section Setting the Unit
Address, all MCN modules must have a unique address assigned to them.
If your HIB module has a model number S2-60081-xxx where ‘xxx’ is 200 or
greater, the HIB’s unit address is set by the rotary switches located on the rear of
the module. See reference 1 for details about these switches. You can then skip
using the Edit HIB Address command.
If your HIB’s model number has an ‘xxx’ number less than 200 or if you are using
a PCLTA card, then you must use the Edit HIB Address command to enter the
unit address of the HIB because the HIB module does not have the rotary switches
to do this. The unit address of the HIB is programmed into the MCN Screen File
