CTI Products RCD Standard - Remote Comparator Display User Manual
Page 49
MCN Remote Comparator Display
Running the MCN Comparator Display
CTI Products, Inc.
(MCNRCD) Program
68-10856-210
43
communications with each module individually to find out which modules are
actually connected to the MCN network and operating.
If all of the configured Comparator I/O Modules are connected to the MCN
network and are powered, this module configuration will take only a second or
two. However, if the screen file has a module configured that is not connected to
the MCN network or is not powered, then the module configuration will take
longer (MCNRCD will delay approximately two seconds for each module that is
configured but not connected to the MCN network or not operating).

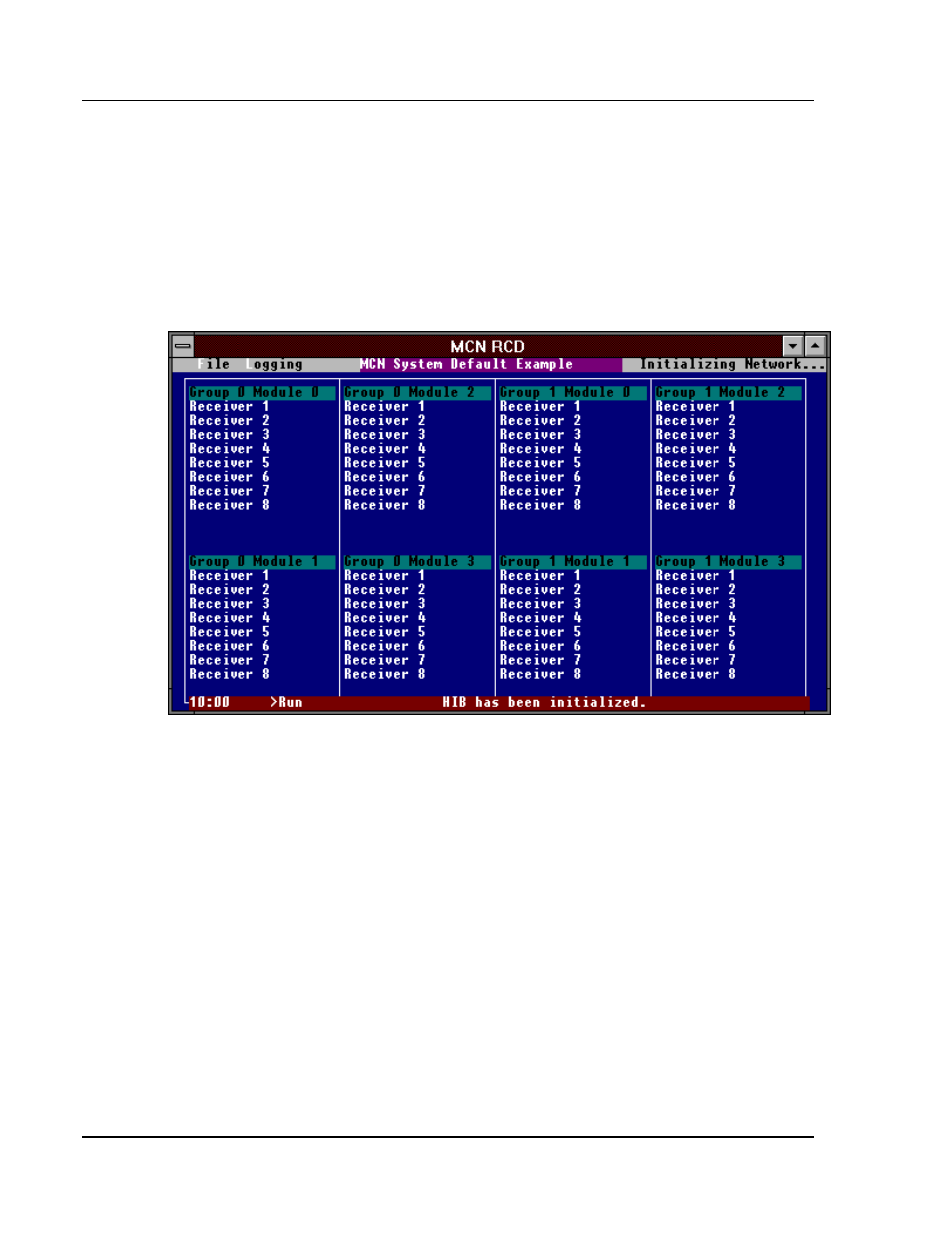

Figure 24 - Initializing the MCN Modules
When MCNRCD is finished initializing the Comparator I/O Modules, the
“Initializing Network...” message is removed. MCNRCD is now ready for normal
system operation.
