MCN Remote Comparator Display Configuring a System
CTI Products, Inc. Using MCNCFG
68-10856-210
36
10. If your MCN HIB module has a unit number where ‘xxx’ is less than
200 or if you are using a PCLTA card, you must execute the Edit HIB
Address command to specify the MCN address of the HIB module
that will be connected to this PC.
For the Group number box, enter 80.
Press the
T key to move the cursor to the Module entry box.
For the Module number box, enter 0.
Press the
T key until the button is highlighted and press E
11. Execute the Edit Screen Name command to specify a name for this
screen file.
12. In the edit box, enter the string SYSTEM EXAMPLE.
13. Use the T key to highlight the button and press E to confirm
your selection.
14. Execute the File Save command to save the screen file.
15. Enter the file name EXMPLSYS and press E .
Now, the file name EXMPLSYS.MSF is the MCN Screen File for the example
system.

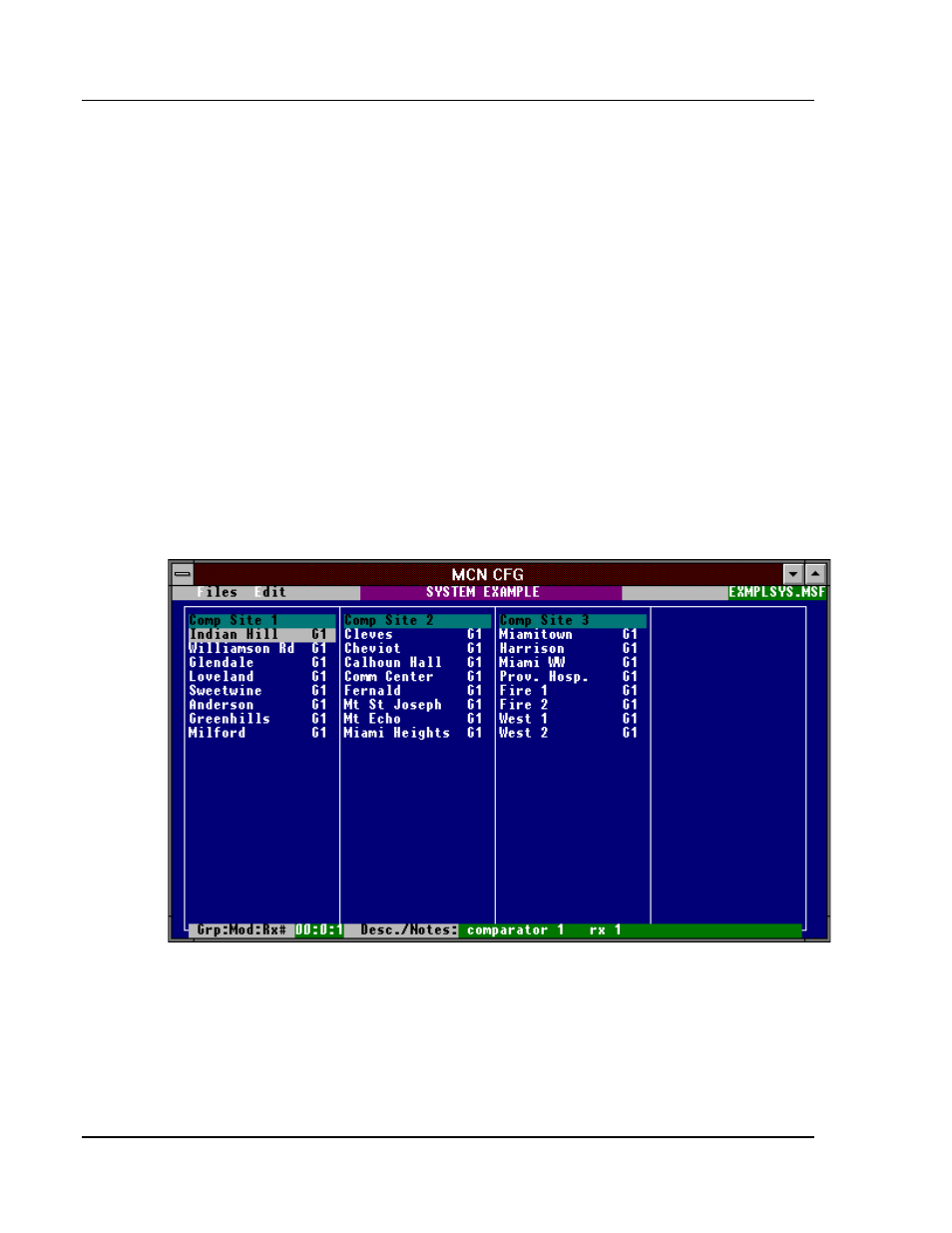

Figure 20 - System Example
