GF Series Flowmeter Models GF90/GF92 24 Doc. No. 06EN003229 Rev. H
Foundation
Field Bus

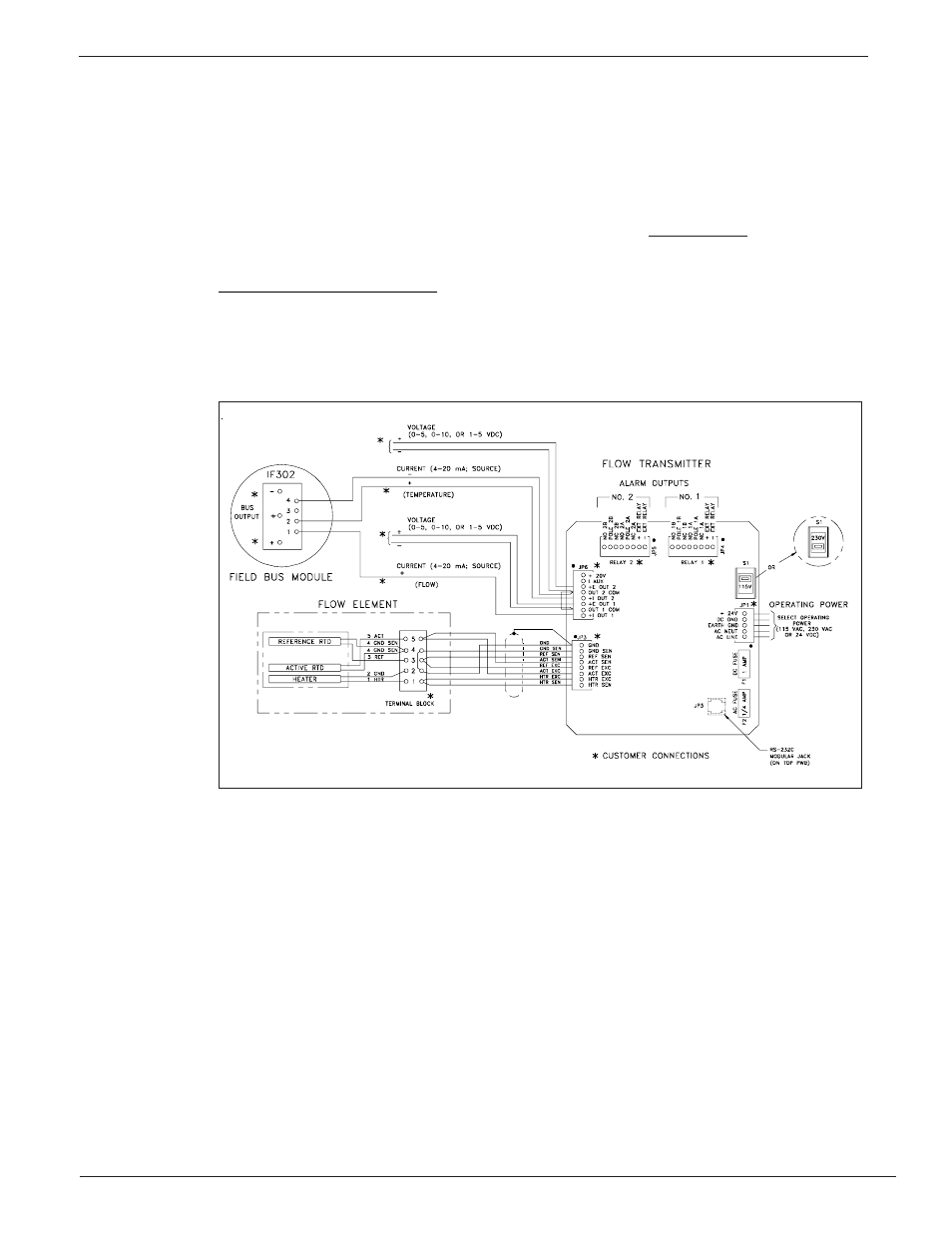

Figure 13. Foundation Field Bus Module Wiring Diagram
Foundation Fieldbus access to the GF90/GF92 signals is accomplished through the SMAR IF302
Current to Fieldbus Converter. Two GF90/GF92 parameters are available through the IF302; Process
Flow in Channel 1 and Process Temperature in Channel 2.
The SMAR IF302 contains 18 functional blocks, and the GF90/GF92 flow and temperature signals are
presented at the output of the corresponding “Analog Input” blocks in mA.
For complete details on the IF302 please go to the SMAR web site at www.smar.com and register to
recieve the “Operation and Maintenance Instruction Manual”.
Installation GF90/GF92 and IF302
Connect the GF90/GF92 Flow current output to the Channel 1 input of the IF302, and then connect the
GF90/GF92 Temperature current output to Channel 2 of the IF302.
