Spare parts list

Create

d

by EBCCW

0

0

:06

Page 65 of 68

5478EN-3

8

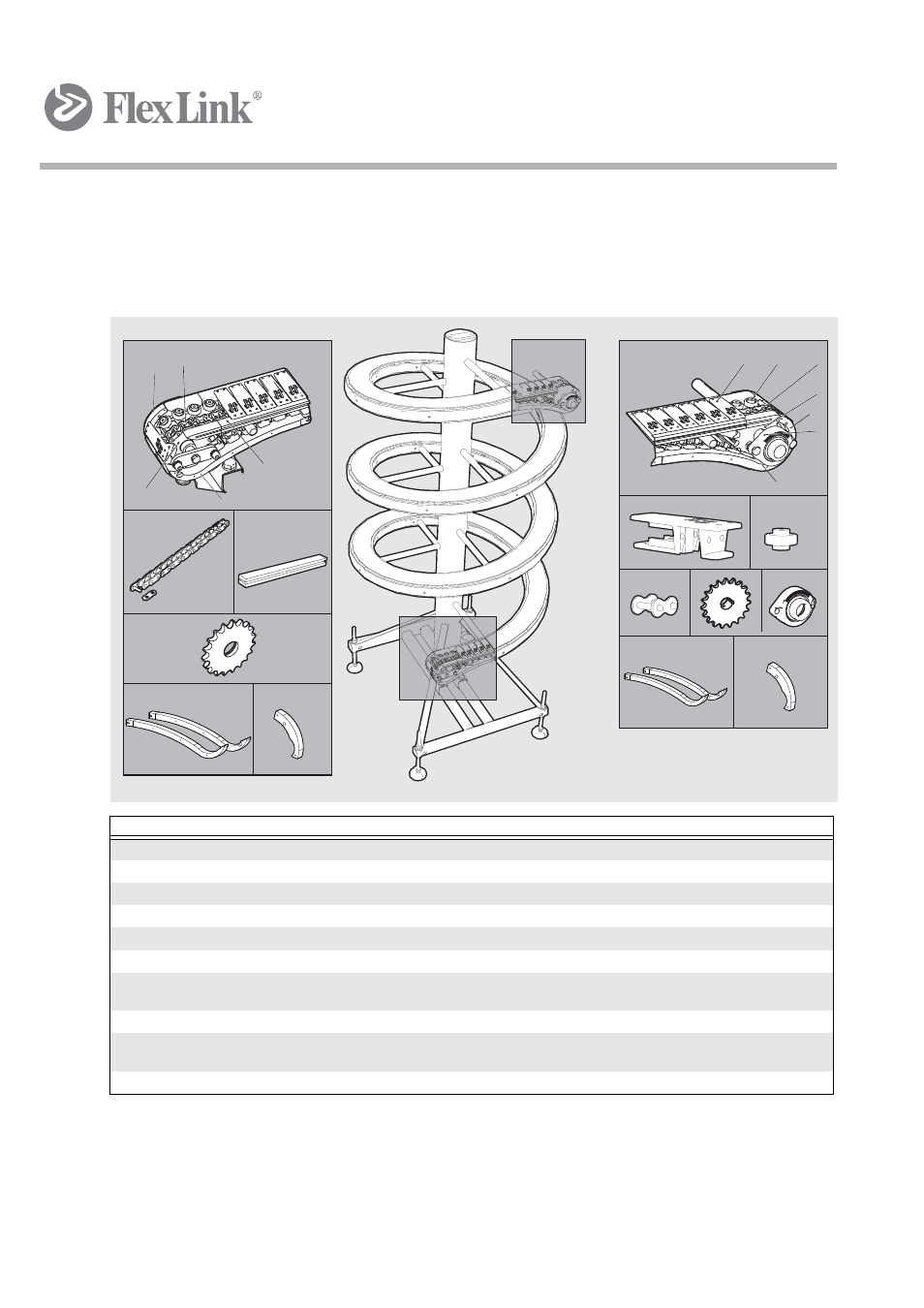

Spare parts list

8.1

Spiral Elevator 5995512

Item

Description

Part No

Qty

Comments

1

Chain link

5112485

1

TPS1-MF-R PP

2

Bearing

5112486

1

Kit of 20 pcs

3

Connection link

5112487

1

3/4” steel, Kit of 5 pcs

4

Sprocket wheel

5112488

1

3/4” 19T for shaft 30mm

5

Bearing

5112489

1

6

Chain

5112491

1

3/4” Side flexing L=5m

7

Slide rail

5112492

1

Kit contains 20 meter slide rail 24x18
single ditch SV with pins and 3 mm drill bit

8

Sprocket wheel

5112493

1

3/4” 19T for shaft 20 mm

9

Guides

5116179

1

Kit containing guides left/right, pins, drill bit
and assembly instruction

10

Guide

5117173

2

Single guide, order 2 pcs for each end

1

2

3

4

5

1

2

3

4

5

B

B

6

7

8

A

A

6

7

8

9

10

9

10

9

10

9

10
