Introduction
Page 18 of 68 5478EN-3

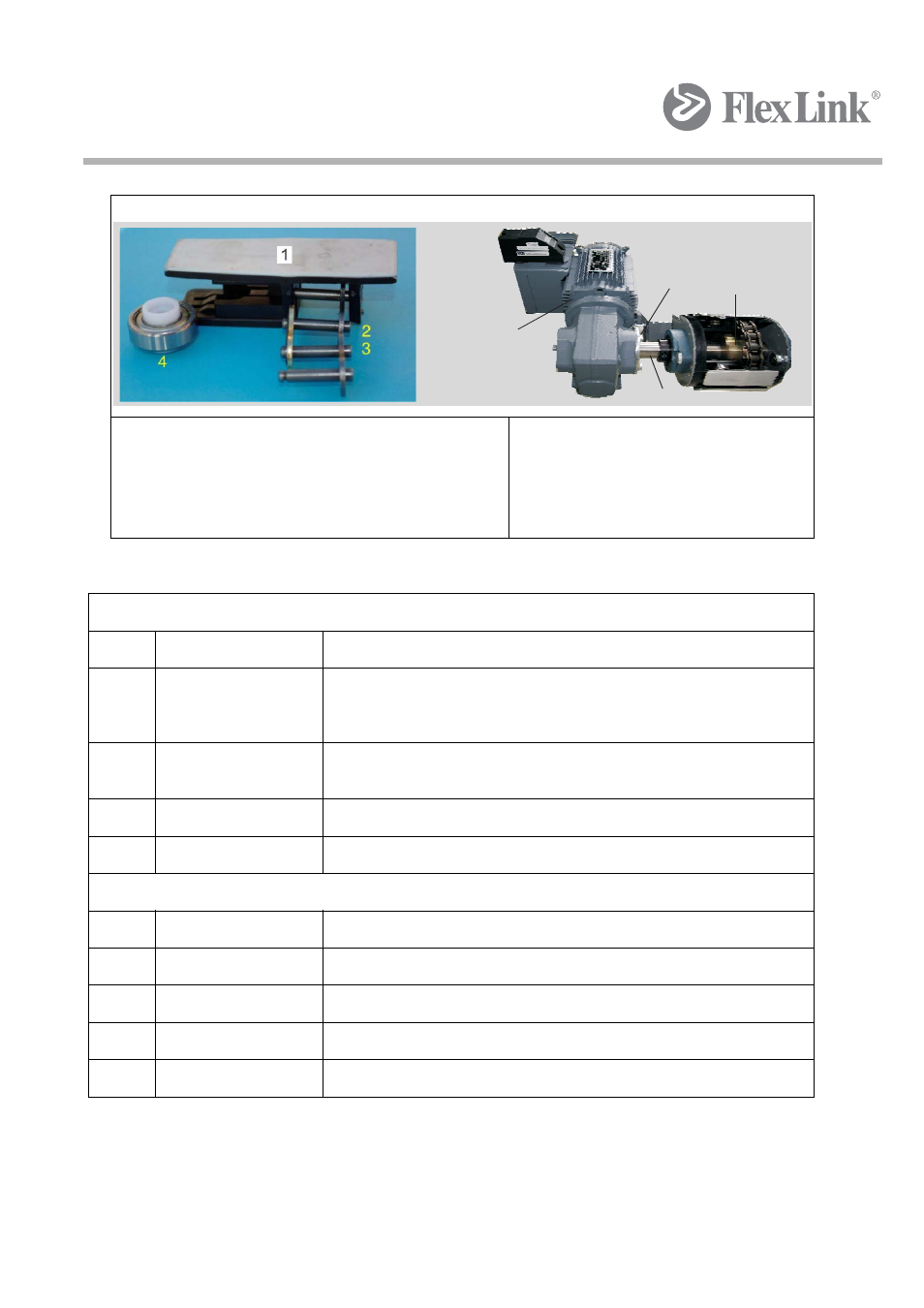

1) Conveyor plate
2) Basic chain
3) Link
4) Bearing
1) Motor
2) Drive shaft
3) Sprocket wheel
4) Torque arm
Components conveyor chain
No. Component Description
1. Conveyor chain plate
(slat) Narrow plastic plate provided with a guide roller. Conveyor plates are
mounted in a row on the basic chain and so form the transport
surface.
2. Metal chain
(transmission chain)
This is a laterally flexible chain on which the conveyor chain is
mounted.
3. Link Links of the Metal chain (item 2)
4. Bearing Bearing for the conveyor chain plate
Components conveyor drive end and gear motor
No. Components Description
1. Gear motor Optional
2. Drive shaft _
3. Sprocket wheel _
4. Toque arm Type specific dependant upon gear motor type
1
2
3
4
