Mounting, installation, adjustment
Page 30 of 68 5478EN-3

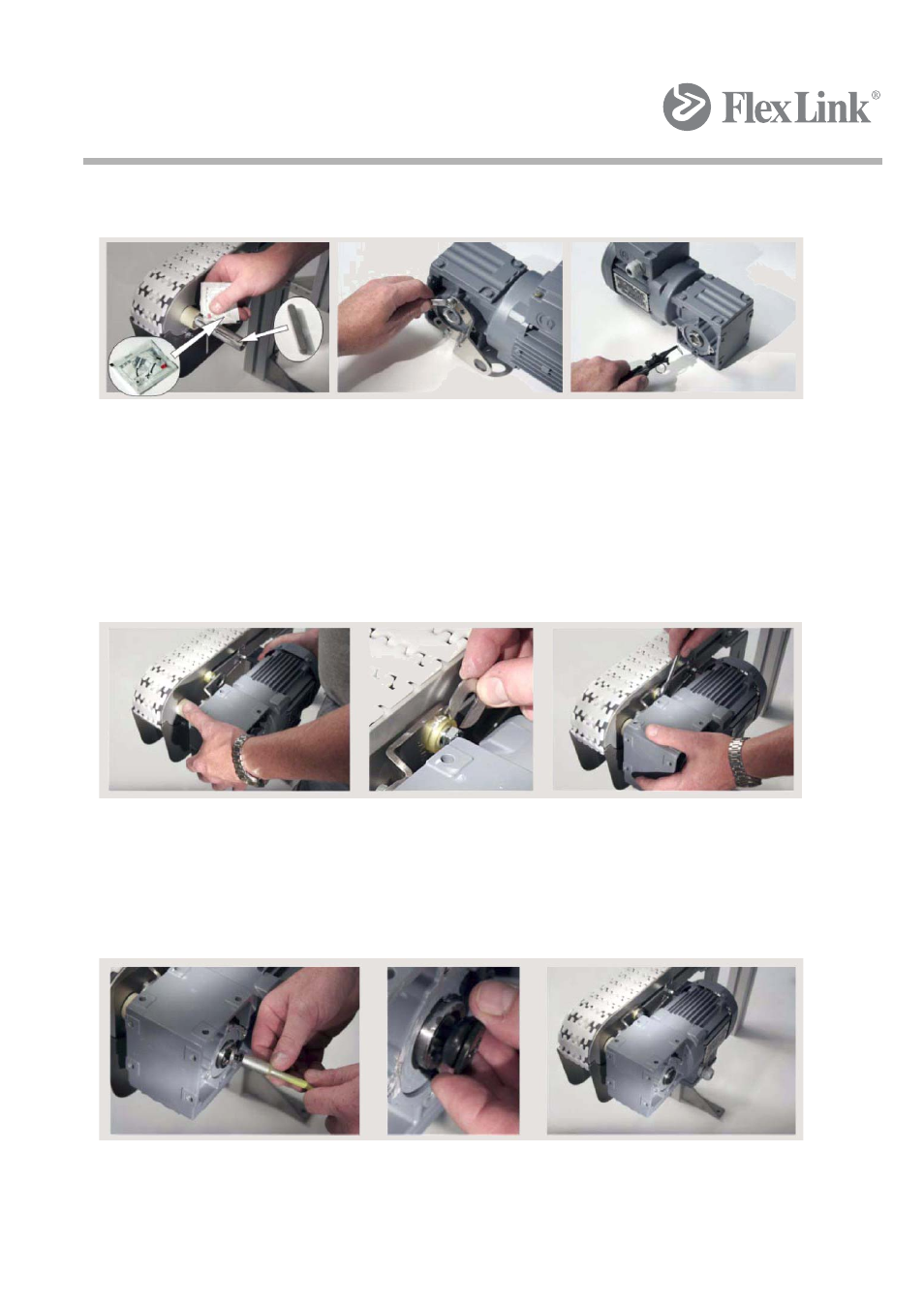

(Note: The conveyor and gear motor shown are not necessarily the same
type as supplied.)
• In the correct orientation, slide the gear motor on the shaft up till
the locking ring (aligning the keyway to key).
• Attach the torque arm to the Spiral Elevator drive end.
• Fasten the shaft to the motor with bolt and washer inside the gear
motor hollow shaft and place the cover to protect the opening (if
cover is applicable).
• Check all fastenings and remove excess installation grease.
