5.2.2 Mounting Guide rail components
The basic Spiral Elevator does not include guide rail or brackets. Along the
sides of the conveyor track are M8 tapped holes typically every 45º to allow
brackets to be attached.
The following describes how a typical FlexLink Guide Rail Bracket system
can be used on the Spiral Elevator.
For final detail of the optimum guide rail and bracket arrangement consult
the Spiral Elevator supplier or FlexLink.

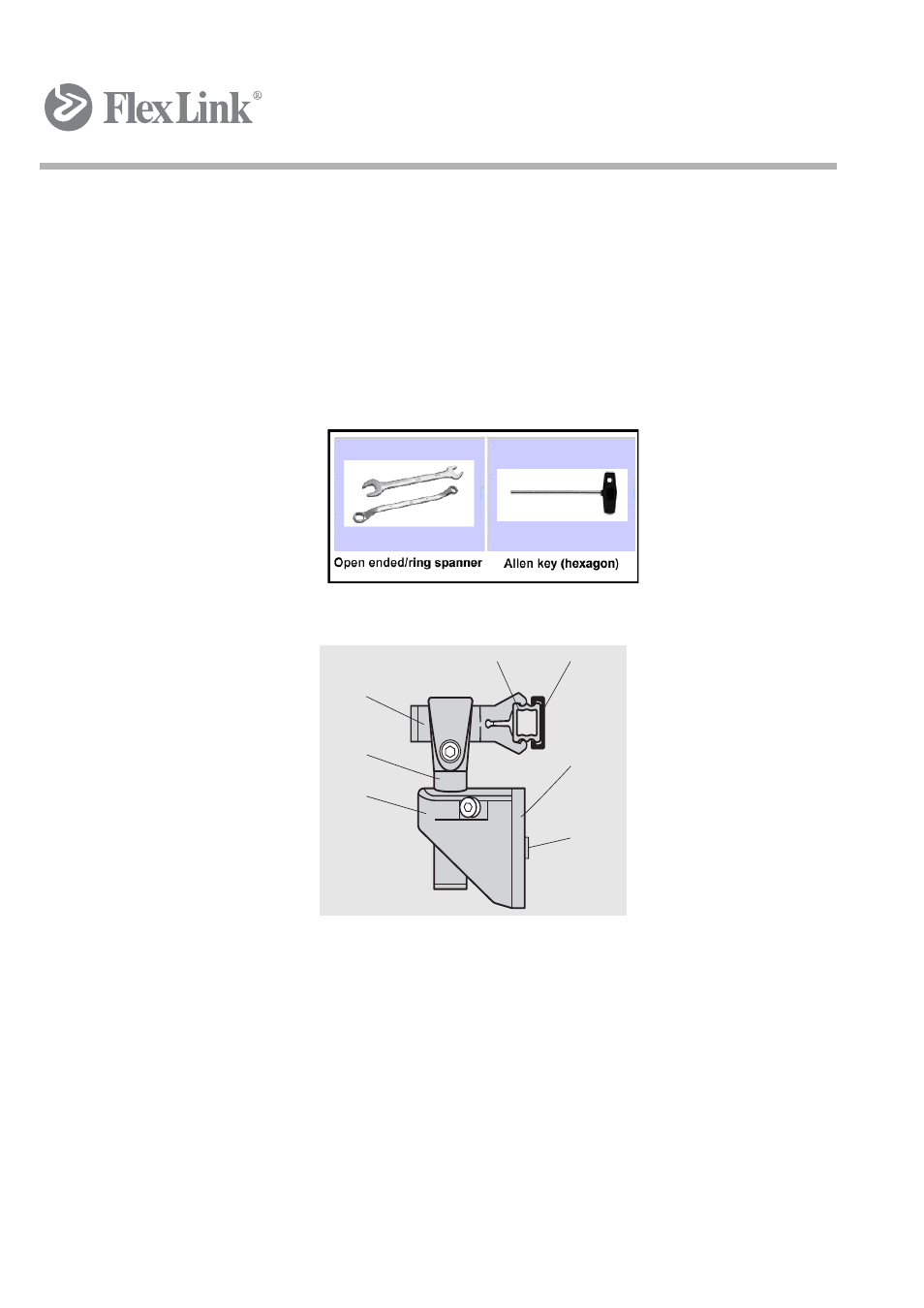

Tools
Typical Guide Rail and bracket components
Guide rail components (typical)
1 Guide rail bracket
2 Guide rail clamp support
3 Guide rail clamp
4 Guide rail
5 Guide rail cover
6 Distance piece
Note! Grind or cut off the small lugs on the FlexLink guide rail bracket
(or distance piece) before assembly.
1
2
3
4 5
6
Note!
