5 Mounting, installation, adjustment
This section deals with the installation and adjustments for the
Spiral Elevator.
The safety conditions detailed in section 1.2 and the Safety Provisions
detailed in section 1.3 should be read and understood before installation.
5.1 Provisions to be provided
Make sure before integrating that the safety measures detailed in section
1.4 are taken.
5.1.1 Floor construction
During installation / integration a number of items must be considered
including the suitability of the floor and how the unit is fixed to the floor.

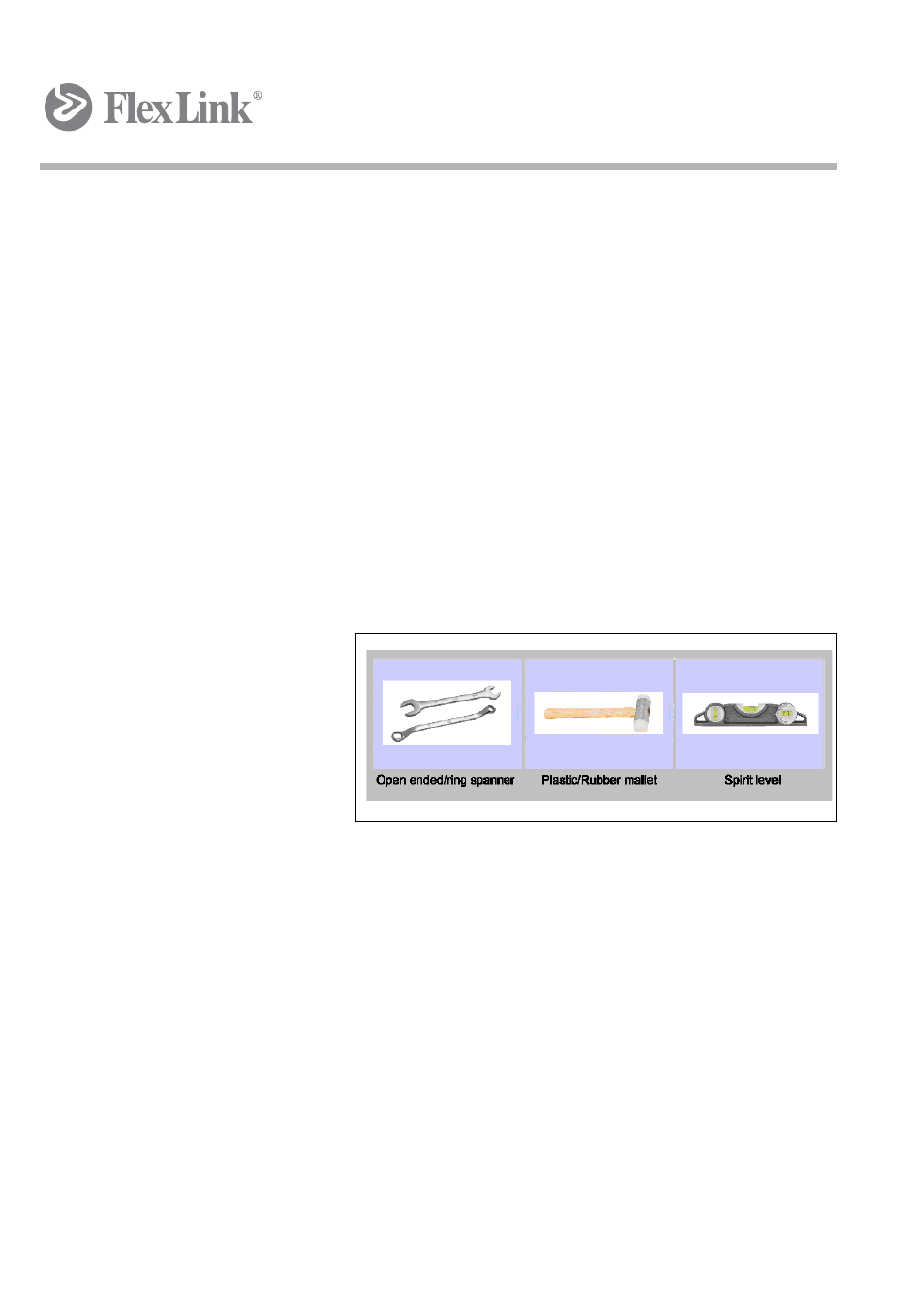

Tools (typical)
• After having placed the Spiral Elevator in the correct position, the
Spiral Elevator should be set to the correct height and the column
must be vertical.
• Following this the feet should be fastened to the floor surface by
using the holes in the adjusting feet.
• Fasteners suitable for the type of floor / mounting surface should
be used.
