Mounting, installation, adjustment
Page 28 of 68 5478EN-3
5.1.2 Links to adjacent conveyor systems
Any additional bracing of the Spiral Elevator in-feed should be provided
where necessary.
Any additional bracing of the conveyor/process after the Spiral Elevator
out-feed should be provided where necessary.
With the correct heights set, the distances between the Spiral Elevator
ends and the adjacent conveyors / machines can be set. The gap between
spiral conveyor end and adjacent conveyor / machine should not be greater
than 25mm and depends upon various factors such as product being
transferred and safety considerations.
A sliding bridge or roller bridge may be needed for transfer of products.

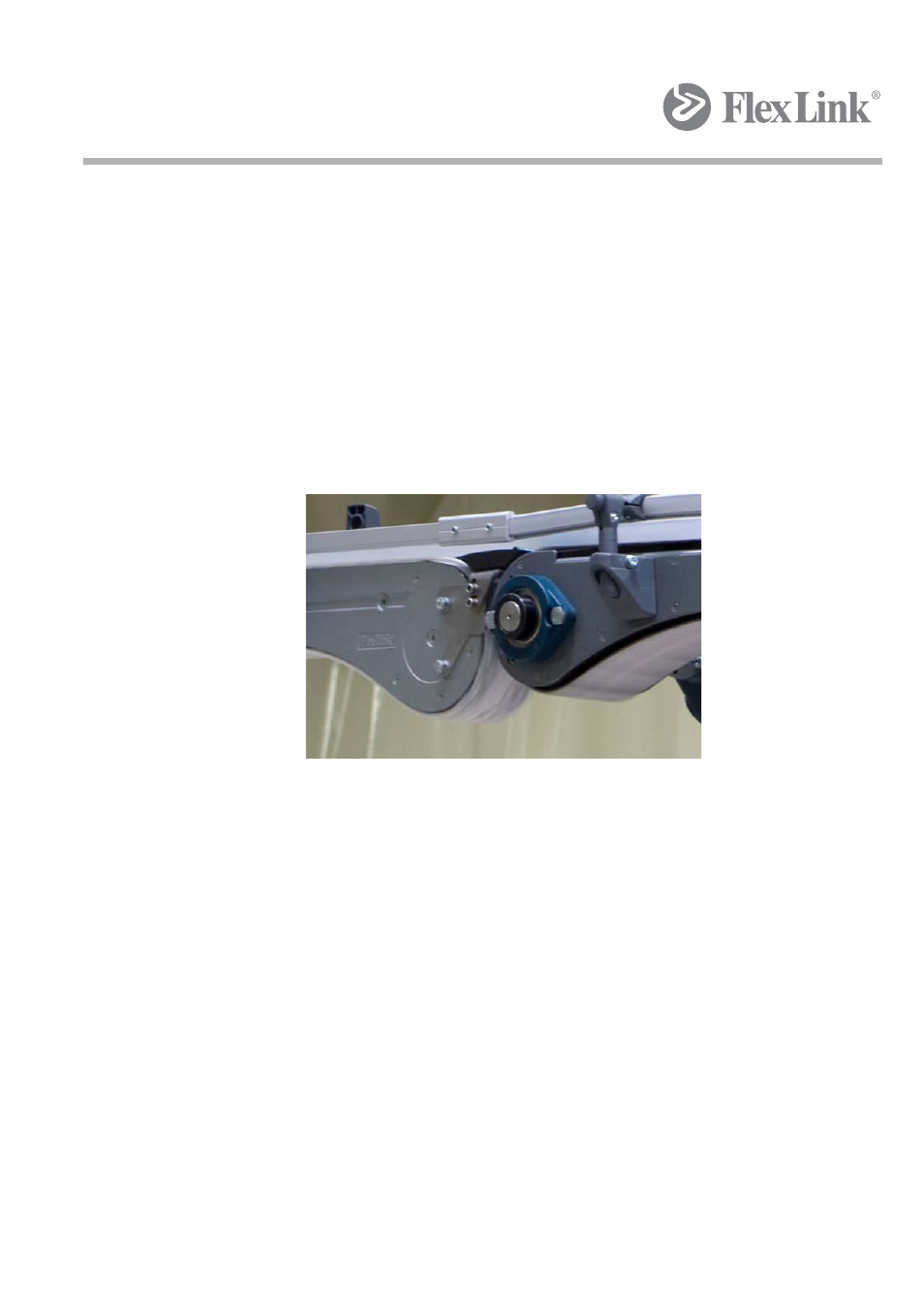

Figure 7 Example of typical connection to an adjoining conveyor
If conveyors are to be attached to the Spiral Elevator it is possible to use
the specially designed joining pieces which are available from FlexLink.
