BEI Sensors THK4 User Manual
Page 50
www.beisensors.com
page
50/57

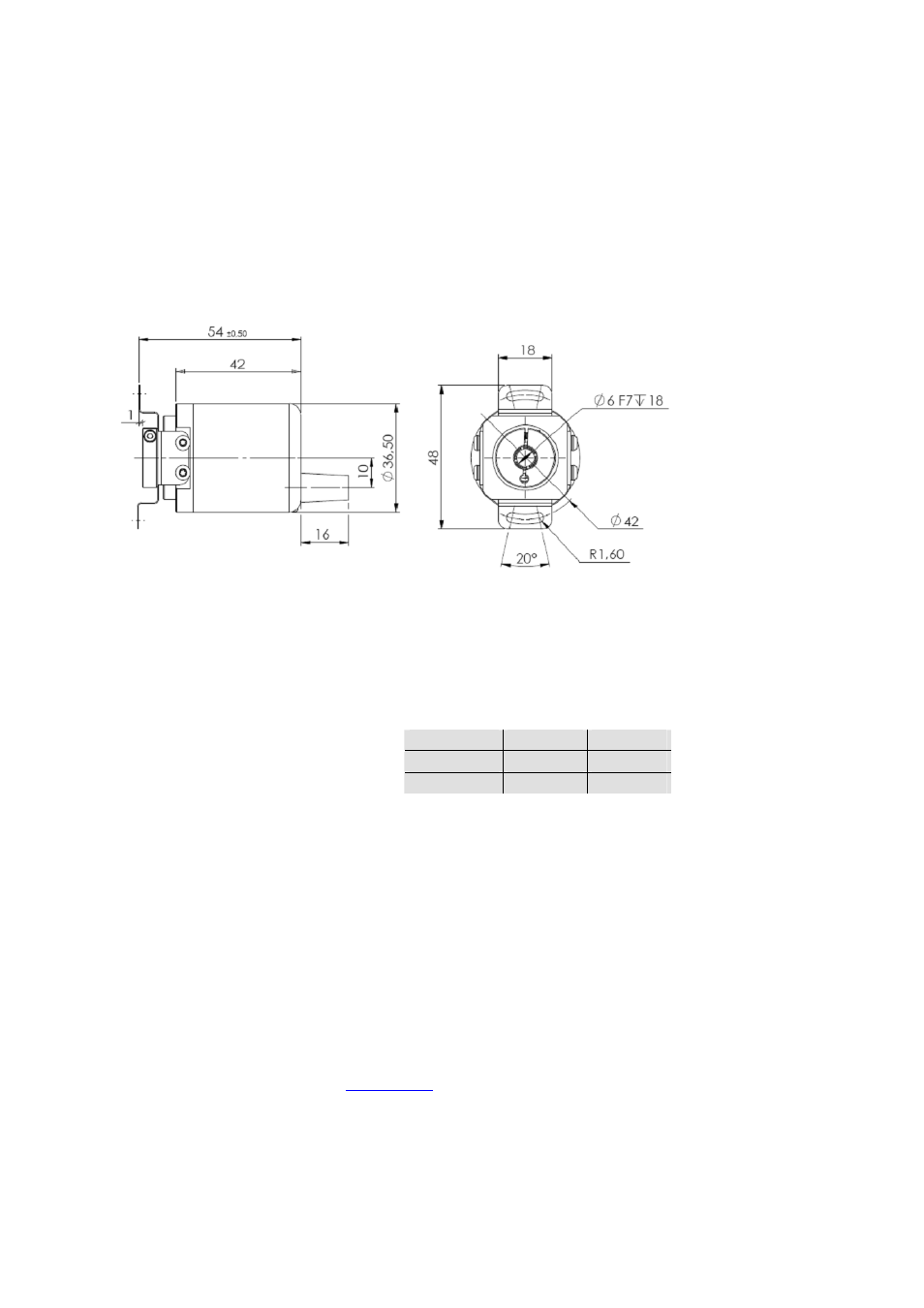

Hollow hollow shaft (B)
Cable exit or
5 pin male M12 Connector
Mounting instructions
The clamp ring may only be tightened if the shaft
of the driving element is in the hollow shaft.
Allowed shaft movements of the drive element are
listed in the table.
axial
radial
static
± 0.3 mm
± 0.5 mm
dynamic
± 0.1 mm
± 0.2 mm
